FRONT FORK (GS125EZ E17)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

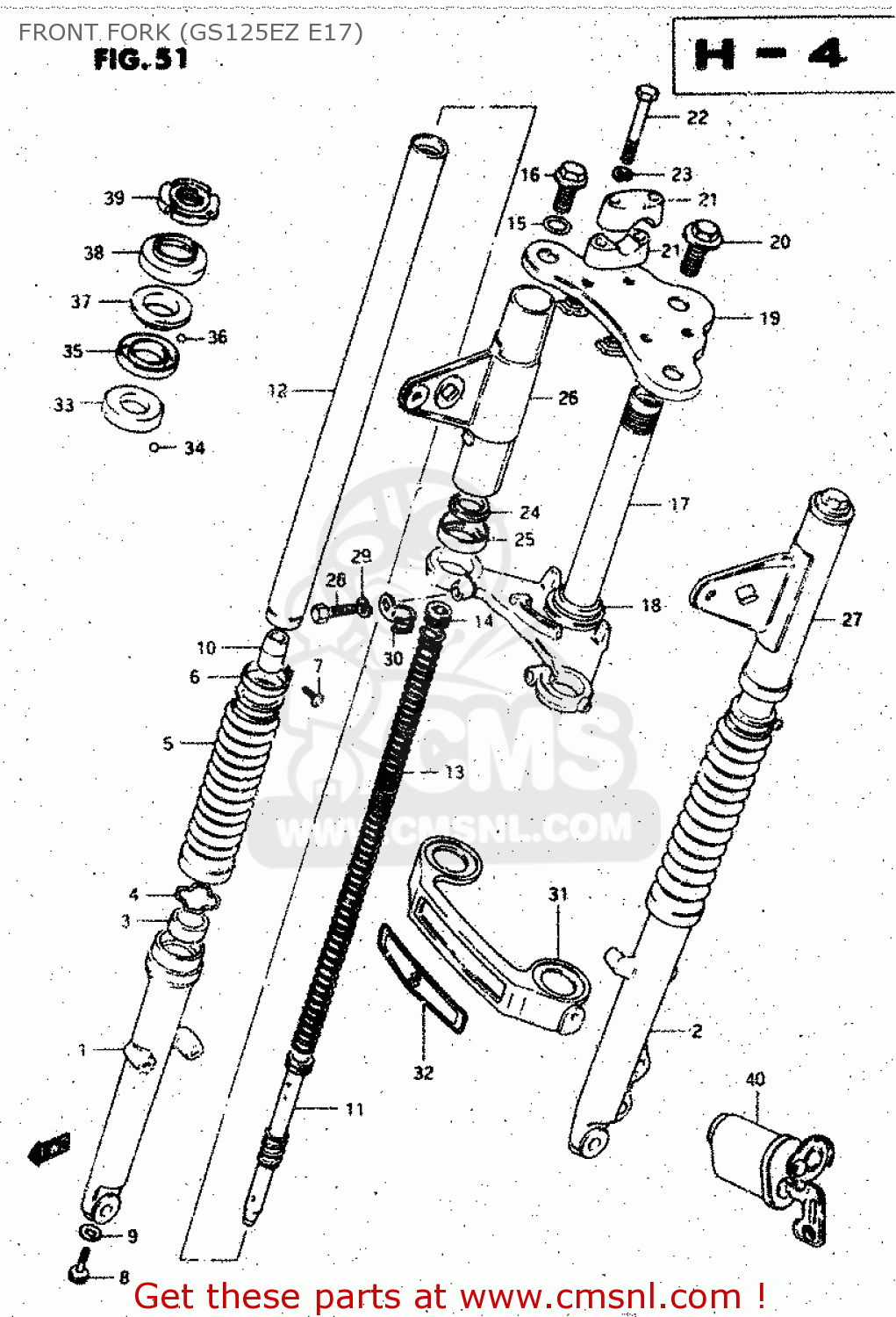

Front fork (gs125ez e17) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT FORK (GS125EZ E17) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK (GS125EZ E17) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK (GS125EZ E17) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
0
5110005370291
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113036500
ref: 1
TUBE,OUTER,R
5113036500
€ 88.50
2
5114036500
ref: 2
TUBE,OUTER,L
€ 0.00
3
5115329400
ref: 3
OIL SEAL,FRONT FORK
5115329400
€ 11.00
4
5115639260
ref: 4
RING,SNAP
5115639260
€ 2.50
5
5157129500
ref: 5
BOOT
5157129500
€ 19.00
6
5157529500
ref: 6
BAND,BOOT
€ 6.50
7
0211204167
ref: 7
SCREW
0211204167
€ 1.00
8
5114716510
ref: 8
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
9
5114841310
ref: 9
GASKET (NAS)
5114841310
€ 2.50
10
5119536220
ref: 10
PIECE,OIL LOCK
5119536220
€ 11.50
11
5114605330
ref: 11
FRONT FORK DAMPER TUBE
5114605330
€ 20.00
12
5111005330
ref: 12
TUBE, INNER
€ 119.00
13
5117105330
ref: 13
SPRING
€ 25.50
14
5135336220
ref: 14
NUT
5135336220
€ 7.00
15
5111736220
ref: 15
O RING
€ 2.00
16
5135139220
ref: 16
CAP
5135139220
€ 12.00
17
5141005340
ref: 17
STEM, STEERING
€ 123.00
18
5162133001
ref: 18
RACE,STEERING OUTER LWR
5162133001
€ 10.00
19
5131005330291
ref: 19
HEAD,STEERING STEM
5131005330291
€ 64.50
20
5135239220
ref: 20
ARROW LEFT51352-3914
BOLT
5135239220
€ 4.00
21
5621127200291
ref: 21
HOLDER,HANDLE UPR
5621127200291
€ 13.50
22
0120408557
ref: 22
BOLT
0120408557
€ 2.50
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
3155325210
ref: 24
CUSHION
€ 0.00
25
5155110200
ref: 25
GUIDE,BRACKET
5155110200
€ 5.50
26
5153005340291
ref: 26
BRACKET, HEADLAMP RH
€ 36.50
27
5154005340291
ref: 27
BRACKET, HEADLAMP LH
€ 36.50
28
5145128012
ref: 28
BOLT,FR FORK LWR(12X33)
5145128012
€ 11.50
29
0832121128
ref: 29
WASHER,LOCK 12
0832121128
€ 2.50
30
5145536010
ref: 30
CLIP
5145536010
€ 6.50
31
5187105350291
ref: 31
COVER, FRONT FORK
€ 23.50
32
6821138300
ref: 32
EMBLEM,FR FORK COVER
6821138300
€ 13.50
33
5161133002
ref: 33
LACE,STEERING INNER LWR
5161133002
€ 7.00
34
0611108003
ref: 34
BALL
0611108003
€ 1.50
35
5161120002
ref: 35
RACE,STEERING INNER UPR
5161120002
€ 5.50
36
0611106003
ref: 36
BALL
0611106003
€ 1.50
37
5162128000
ref: 37
RACE,STEERING OUTER UPR
5162128000
€ 7.00
38
5164325001
ref: 38
DUST SEAL,STEERING UPR
5164325001
€ 4.50
39
5163128000
ref: 39
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
40
5190045400
ref: 40
EXECUTED LOCALLY
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
