TURN SIGNAL LAMP (MODEL K/M/R E2)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

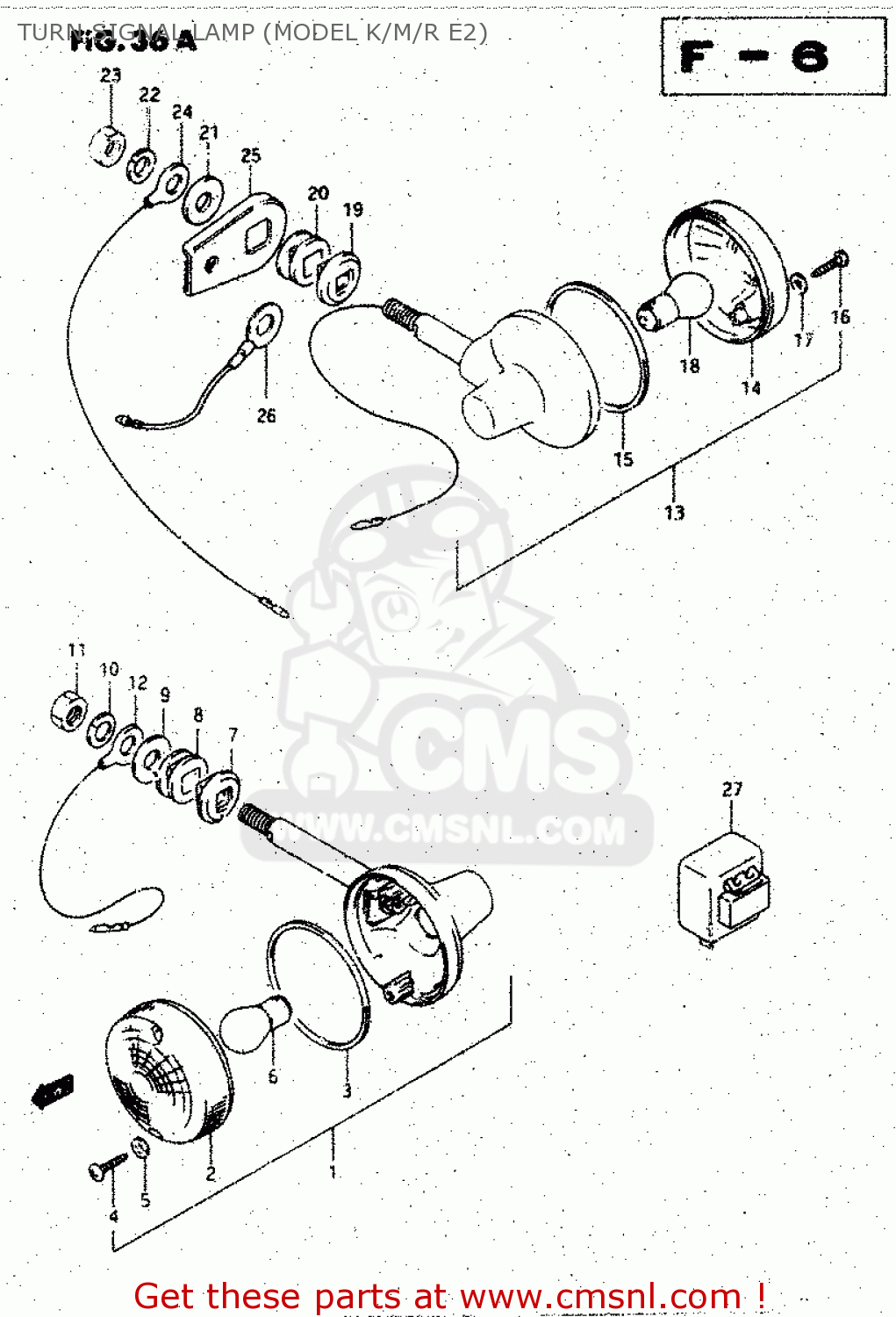

Turn signal lamp (model k/m/r e2) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

TURN SIGNAL LAMP (MODEL K/M/R E2) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
TURN SIGNAL LAMP (MODEL K/M/R E2) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
TURN SIGNAL LAMP (MODEL K/M/R E2) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
3560139370
ref: 1
LAMP ASSY, FRONT TURN SIGNAL
€ 78.50
2
3561202460
ref: 2
LENS
3561202460
€ 9.00
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0321104207
ref: 4
SCREW
0321104207
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112045
ref: 6
BULB(12V21W)
0947112045
€ 5.00
7
3569536590
ref: 7
SPACER
3569536590
€ 6.00
8
3569032200
ref: 8
CUSHION
3569032200
€ 38.50
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121106
ref: 10
LOCK WASHER
€ 3.00
11-1
0831012106
ref: 11-1
MODEL K/M
NUT
0831012106
€ 2.00
11-2
0831000107
ref: 11-2
MODEL R
NUT
0831000107
€ 2.50
12
3666033000
ref: 12
LEAD WIRE,EARTH
3666033000
€ 5.00
13-1
3560339370
ref: 13-1
MODEL K/M
LAMP ASSY, REAR TURN SIGNAL
3560339370
€ 78.50
13-2
3560326420999
ref: 13-2
MODEL R
LAMP ASSY,RR TURNSIGNAL
3560326420999
€ 78.50
14
3565202470
ref: 14
LENS
3565202470
€ 7.00
15
3561328620
ref: 15
GASKET (NAS)
3561328620
€ 7.00
16
0321104207
ref: 16
SCREW
0321104207
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
0947112045
ref: 18
BULB(12V21W)
0947112045
€ 5.00
19
3569536590
ref: 19
SPACER
3569536590
€ 6.00
20
0932015004
ref: 20
CUSHION
0932015004
€ 5.00
21
0916010006
ref: 21
WASHER (10.5X30X2.3)
0916010006
€ 2.50
22
0832121106
ref: 22
LOCK WASHER
€ 3.00
23-1
0831012106
ref: 23-1
MODEL K/M
NUT
0831012106
€ 2.00
23-2
0831000107
ref: 23-2
MODEL R
NUT
0831000107
€ 2.50
24
3686244000
ref: 24
LEAD WIRE,EARTH
3686244000
€ 4.00
25
3562005310
ref: 25
BRACKET,RR TURNSIGNAL LAMP
€ 5.50
26
3666033000
ref: 26
LEAD WIRE,EARTH
3666033000
€ 5.00
27
3861031310
ref: 27
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
