CHAIN CASE - SHOCK ABSORBER

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

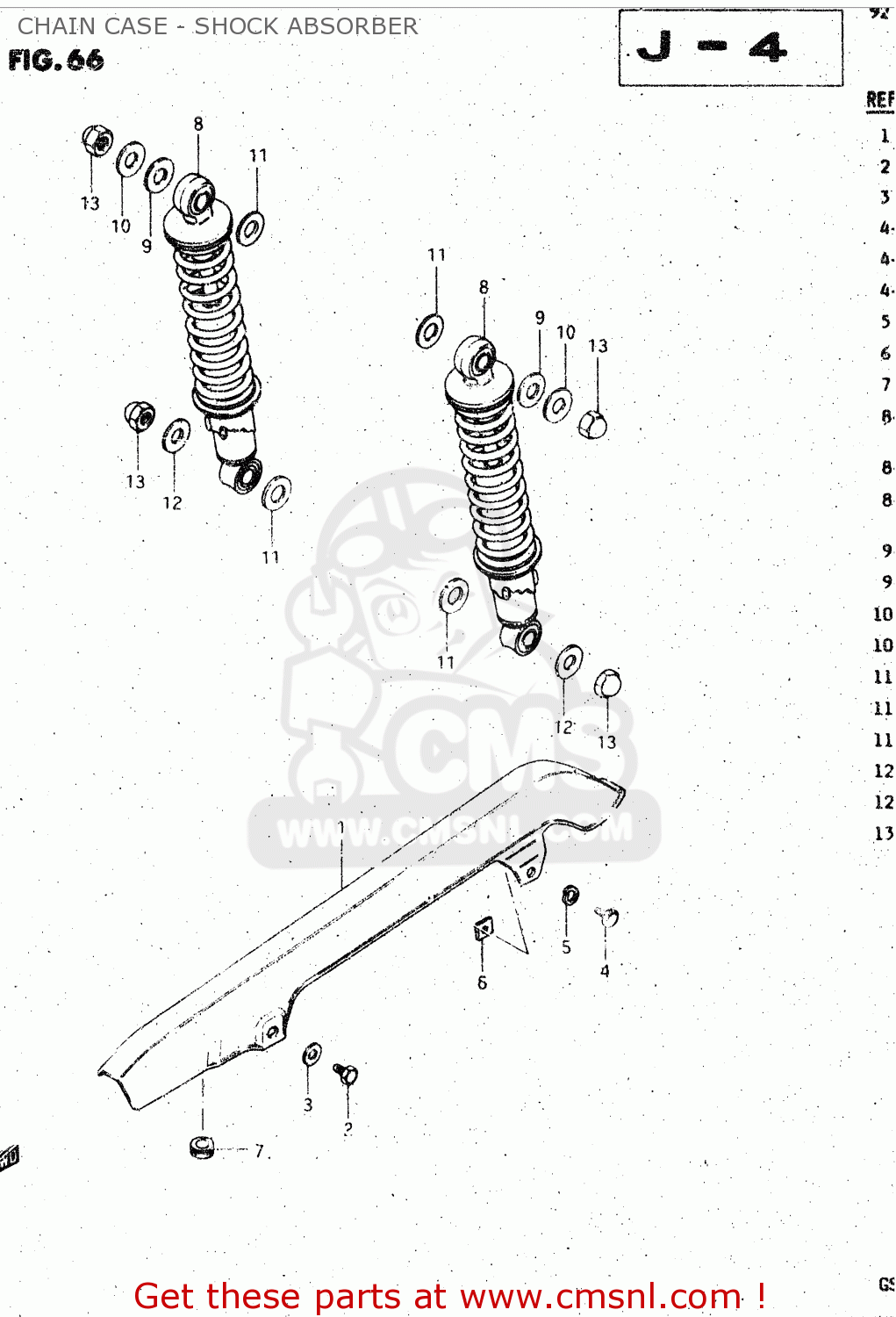

Chain case - shock absorber diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CHAIN CASE - SHOCK ABSORBER GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CHAIN CASE - SHOCK ABSORBER GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

6131113000291
ref: 1

CASE, CHAIN (BLACK)

€ 27.50

2

0910006011
ref: 2

BOLT(6X8)

€ 2.50

3

0916906010
ref: 3

WASHER

€ 3.00

4-1

0110706125
ref: 4-1
MODEL Z/D/F/K

BOLT

€ 2.00

4-2

0113406125
ref: 4-2
MODEL L/M

BOLT ,6X12

€ 1.50

4-3

0157006123
ref: 4-3
MODEL R

BOLT

€ 1.50

5

0832121064
ref: 5
MODEL Z/D/F/K

WASHER,LOCK

€ 2.00

6

6131643000
ref: 6

NUT,CHAIN CASE RR

€ 3.00

7

0932008013
ref: 7

CUSHION

€ 4.00

8-1

6210005320
ref: 8-1
GS125ESZ/EZ

ABSORBER ASSY, REAR SHOCK (ORANGE)

€ 182.50

8-2

6210005310
ref: 8-2
GS125Z

ABSORBER ASSY, REAR SHOCK

€ 0.00

8-3

6210005350
ref: 8-3
MODEL D/F/K/L/M/R

ABSORBER ASSY,RR SHOCK

€ 140.00

9-1

0916010001
ref: 9-1
MODEL Z/D/F/K/L/M

WASHER

€ 2.00

9-2

0916010059
ref: 9-2
MODEL R

WASHER

€ 2.50

10-1

0916010001
ref: 10-1
MODEL D/F/K/L/M

WASHER

€ 2.00

10-2

0916010059
ref: 10-2
MODEL R

WASHER

€ 2.50

11-1

0916012017
ref: 11-1
MODEL Z/D/F

WASHER(12.1X30X2.3)

€ 2.50

11-2

0832221128
ref: 11-2
MODEL K/L/M

WASHER

€ 2.00

11-3

0832201127
ref: 11-3
MODEL R

WASHER

€ 2.00

12-1

0916010001
ref: 12-1
MODEL Z/D/F/K/L/M

WASHER

€ 2.00

12-2

0916010059
ref: 12-2
MODEL R

WASHER

€ 2.50

13

0831310107
ref: 13

NUT

€ 2.50
