Buy Suzuki GS Parts Online

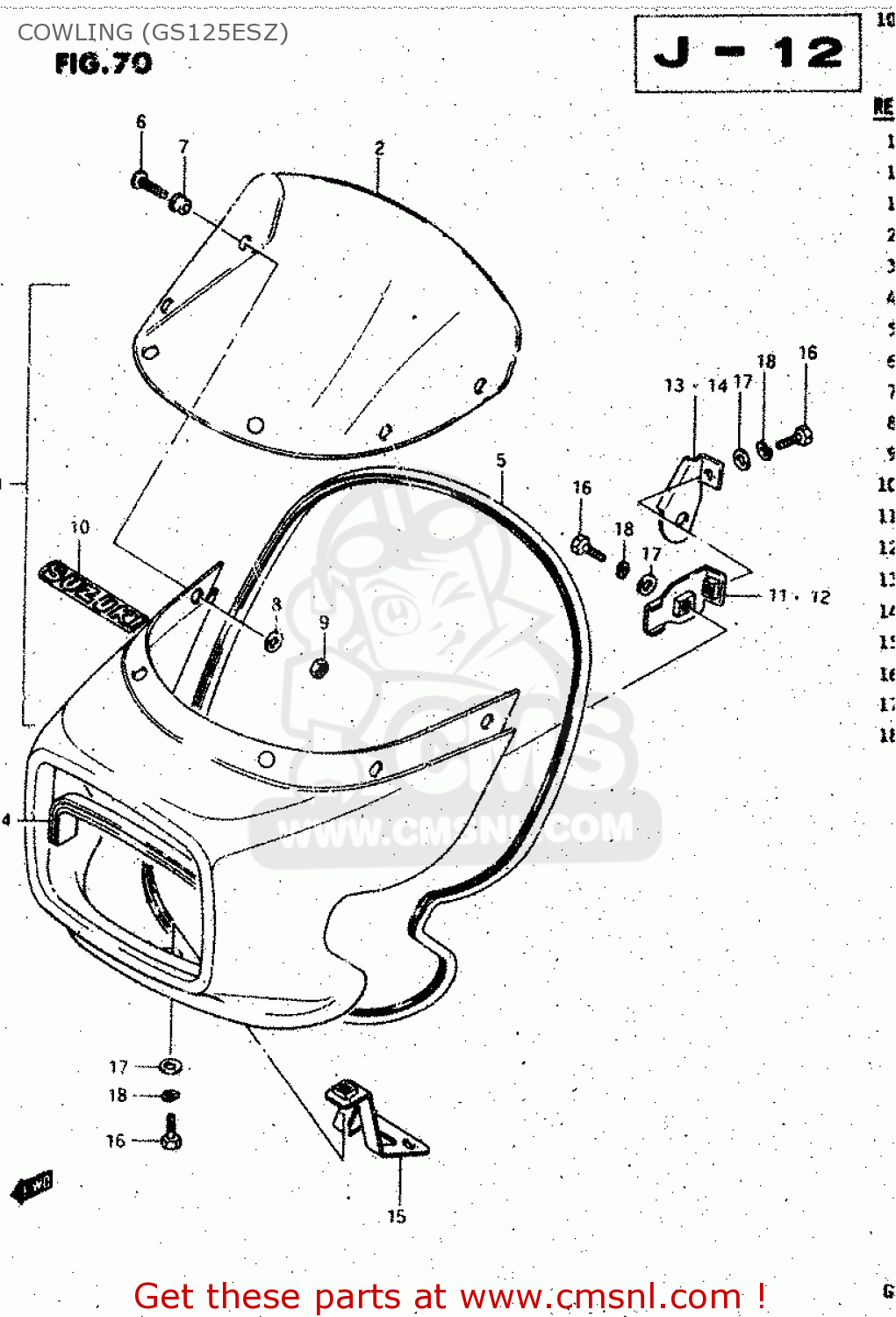

COWLING (GS125ESZ)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

Cowling (gs125esz) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GS125ESZ) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
COWLING (GS125ESZ) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
COWLING (GS125ESZ) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1-1
9440005361019
ref: 1-1
COWLING ASSY (BLACK)
€ 201.50
1-2
944000536104Y
ref: 1-2
COWLING ASSY (BLUE)
€ 201.50
1-3
944000536107P
ref: 1-3
COWLING ASSY (RED)
€ 201.50
2
9461136500
ref: 2
WINDOW,COWLING
9461136500
€ 37.00
3
9459139300
ref: 3
MOLDING,HEADLAMP GRILL
9459139300
€ 11.50
4
9459239300
ref: 4
MOLDING,HEADLAMP GRILL
€ 11.50
5
9463136501
ref: 5
ARROW RIGHT94631-441
MOULDING, WINDOW
9463136501
€ 18.00
6
0214205124
ref: 6
SCREW, FRONT & REAR
€ 1.50
7
0932005008
ref: 7
CUSHION
0932005008
€ 5.00
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
6816649200538
ref: 10
EMBLEM,SEAT TAIL COVER
6816649200538
€ 5.00
11
9451036500
ref: 11
BRACE, RH (L:19)
9451036500
€ 4.50
12
9453036500
ref: 12
BRACE,COWLING LH
9453036500
€ 5.00
13
9452105351
ref: 13
BRACKET, FITTING RH (L:19)
9452105351
€ 7.00
14
9456105351
ref: 14
BRACKET,L
9456105351
€ 6.00
15
9455005350
ref: 15
BRACKET, LOWER
9455005350
€ 6.00
16
0110706165
ref: 16
BOLT 6X16
0110706165
€ 2.00
17
0916006039
ref: 17
WASHER (6.5X18X1.6)
0916006039
€ 2.00
18
0832121064
ref: 18
WASHER,LOCK
0832121064
€ 2.00
