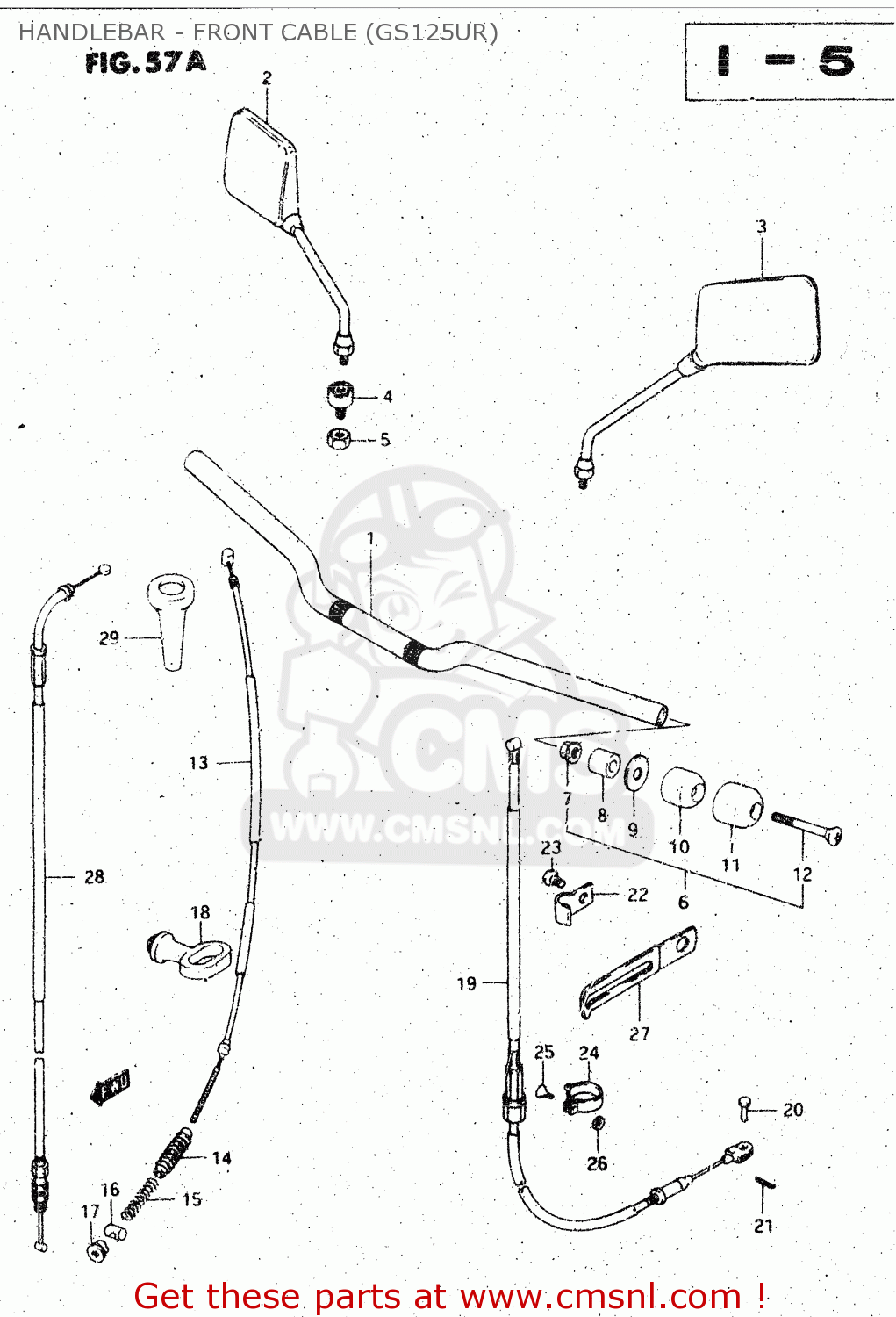

HANDLEBAR - FRONT CABLE (GS125UR)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

Handlebar - front cable (gs125ur) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HANDLEBAR - FRONT CABLE (GS125UR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HANDLEBAR - FRONT CABLE (GS125UR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

5611185360
ref: 1

HANDLEBAR

€ 0.00

2

5650036500
ref: 2

MIRROR ASSY, REAR VIEW RH

€ 43.50

3

5660036500
ref: 3

MIRROR ASSY, REAR VIEW LH

€ 39.00

4

5670045400
ref: 4

CUSHION ASSY,RR VIEW MIRROR

€ 18.00

5

0831000103
ref: 5

NUT

€ 2.00

6

5620012810
ref: 6

BALANCER SET,HANDLEBAR

€ 88.00

7

0915906024
ref: 7

NUT

€ 2.00

8

5627244500
ref: 8

EXPANDER,HANDLE BALANCER

€ 3.00

9

5627534400
ref: 9

SPACER,BALANCER

€ 2.50

10

5627149420
ref: 10

BALANCER,HANDLE

€ 19.50

11

5627405350
ref: 11

CAP,BALANCER

€ 223.50

12

0212206653
ref: 12

SCREW

€ 2.50

13

5810005351
ref: 13

CABLE,FR BRAKE

€ 18.00

14

0928707001
ref: 14

SEAL,DUST(7X16X75)

€ 2.00

15

0944006083
ref: 15

SPRING

€ 0.00

16

0920910001
ref: 16

PIN,10X19

€ 2.00

17

0915005101
ref: 17

NUT

€ 3.00

18

5862121203A
ref: 18

GUIDE,CABLE

€ 7.50

19

5820005360
ref: 19

CABLE ASSY,CLUTCH

€ 24.50

20

0920006004
ref: 20

PIN(L:13)

€ 1.50

21

0411120158
ref: 21

PIN

€ 1.50

22

5862637400
ref: 22

CLAMP,CLUTCH CABLE NO.1

€ 8.50

23

0211216103
ref: 23

SCREW

€ 2.00

24

5828505350
ref: 24

CLAMP,CABLE

€ 4.00

25

0211205163
ref: 25

SCREW

€ 2.00

26

0831000053
ref: 26

NUT

€ 2.50

27

0940408405
ref: 27

CLAMP

€ 3.50

28

5830005310
ref: 28

CABLE ASSY,THROTTLE

€ 26.00

29

5827331000
ref: 29

BOOT,CLUTCH CABLE

€ 2.50
