CRANKCASE

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

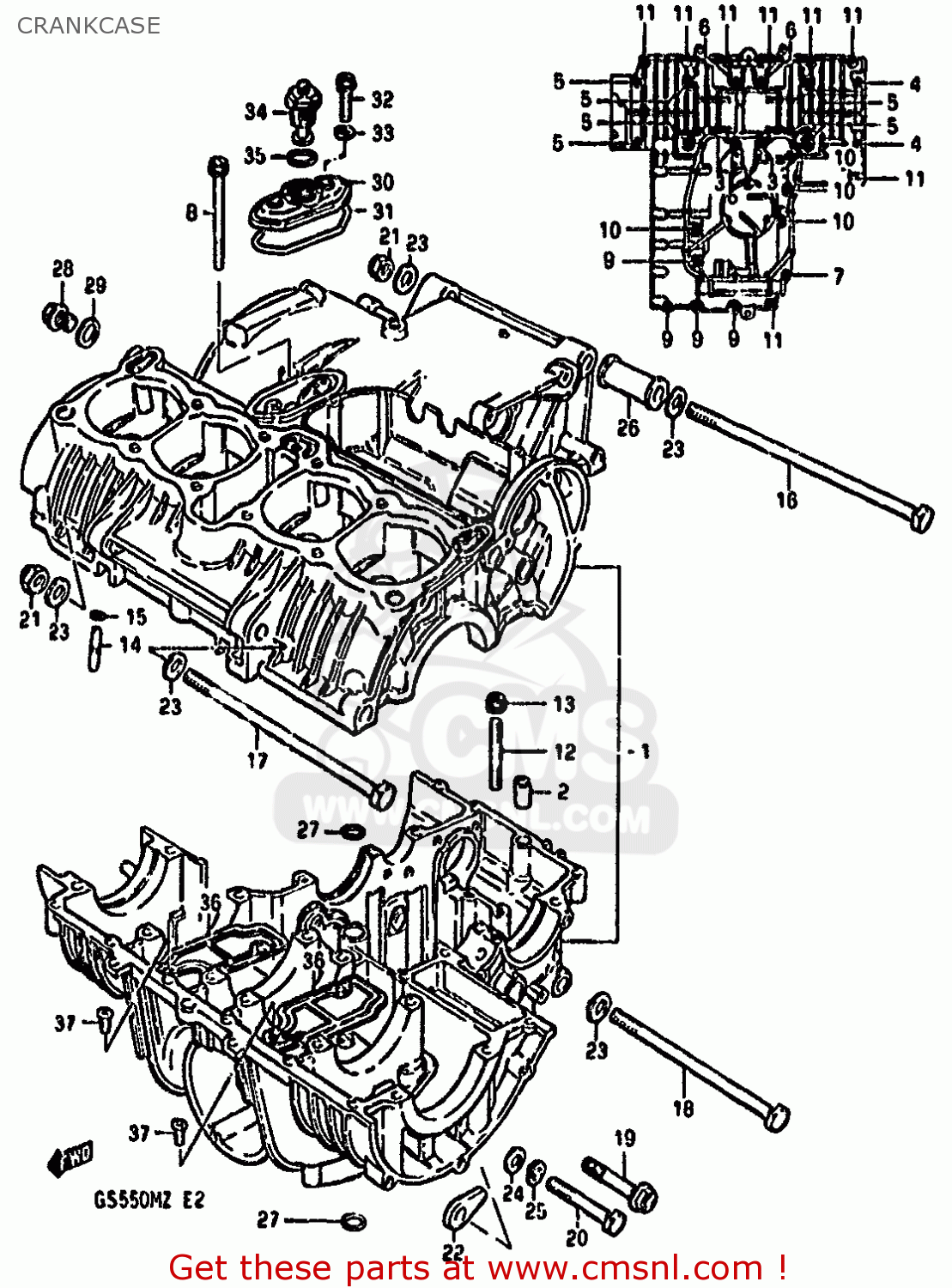

Crankcase diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

CRANKCASE GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
CRANKCASE GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
CRANKCASE GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1130047812
ref: 1
CRANKCASE SET
€ 1,791.50
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308026
ref: 3
BOLT
0910308026
€ 3.50
4
0151708908
ref: 4
BOLT 8X90
€ 3.50
5
0151708708
ref: 5
BOLT (8X70)
€ 2.00
6
0151708558
ref: 6
BOLT 8X55
0151708558
€ 3.00
7
0151708458
ref: 7
BOLT (8X45)
€ 3.00
8
0151706908
ref: 8
BOLT (6X90)
€ 2.00
9
0151706608
ref: 9
BOLT (6X60)
€ 2.50
10
0151706508
ref: 10
BOLT ,6X50
€ 2.00
11
0151706408
ref: 11
BOLT
0151706408
€ 2.50
12
0142106408
ref: 12
STUD BOLT
€ 2.50
13
0831616068
ref: 13
NUT
0831616068
€ 2.50
14
0936405005
ref: 14
UNION
0936405005
€ 3.00
15
0928003003
ref: 15
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
16
0910010074
ref: 16
BOLT 10X270
0910010074
€ 15.50
17
0910010111
ref: 17
BOLT
€ 11.50
18
0910010078
ref: 18
BOLT(10X165)
0910010078
€ 10.50
19
0151710558
ref: 19
MODEL X
BOLT 10X55
€ 3.00
20
0110710558
ref: 20
MODEL Z
BOLT 10X55
0110710558
€ 3.50
21
0915910011
ref: 21
NUT
0915910011
€ 3.00
22
0915910020
ref: 22
NUT
0915910020
€ 7.50
23
0832211108
ref: 23
WASHER
€ 2.50
24
0916010005
ref: 24
WASHER(10.5X20X3.2)
0916010005
€ 2.00
25
0832121108
ref: 25
LOCK WASHER
0832121108
€ 2.00
26
1161045000
ref: 26
SPACER,ENGINE MOUNT
€ 12.00
27
0928013001
ref: 27
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
28
0924714012
ref: 28
PLUG (14X12)
0924714012
€ 3.50
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
30
1644545000
ref: 30
HOUSING,OIL PRESSURE SWITCH
1644545000
€ 28.00
31
1644845000
ref: 31
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
32
0151706258
ref: 32
BOLT
0151706258
€ 2.50
33
0916806009
ref: 33
GASKET (NAS)
0916806009
€ 2.00
34
3782045050
ref: 34
SWITCH ASSEMBLY
3782045050
€ 30.00
35
0928019001
ref: 35
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
36
1152147000
ref: 36
PLATE,OIL SEPARATOR
€ 2.00
37
0211206088
ref: 37
SCREW
€ 2.00
