GEAR SHIFTING

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

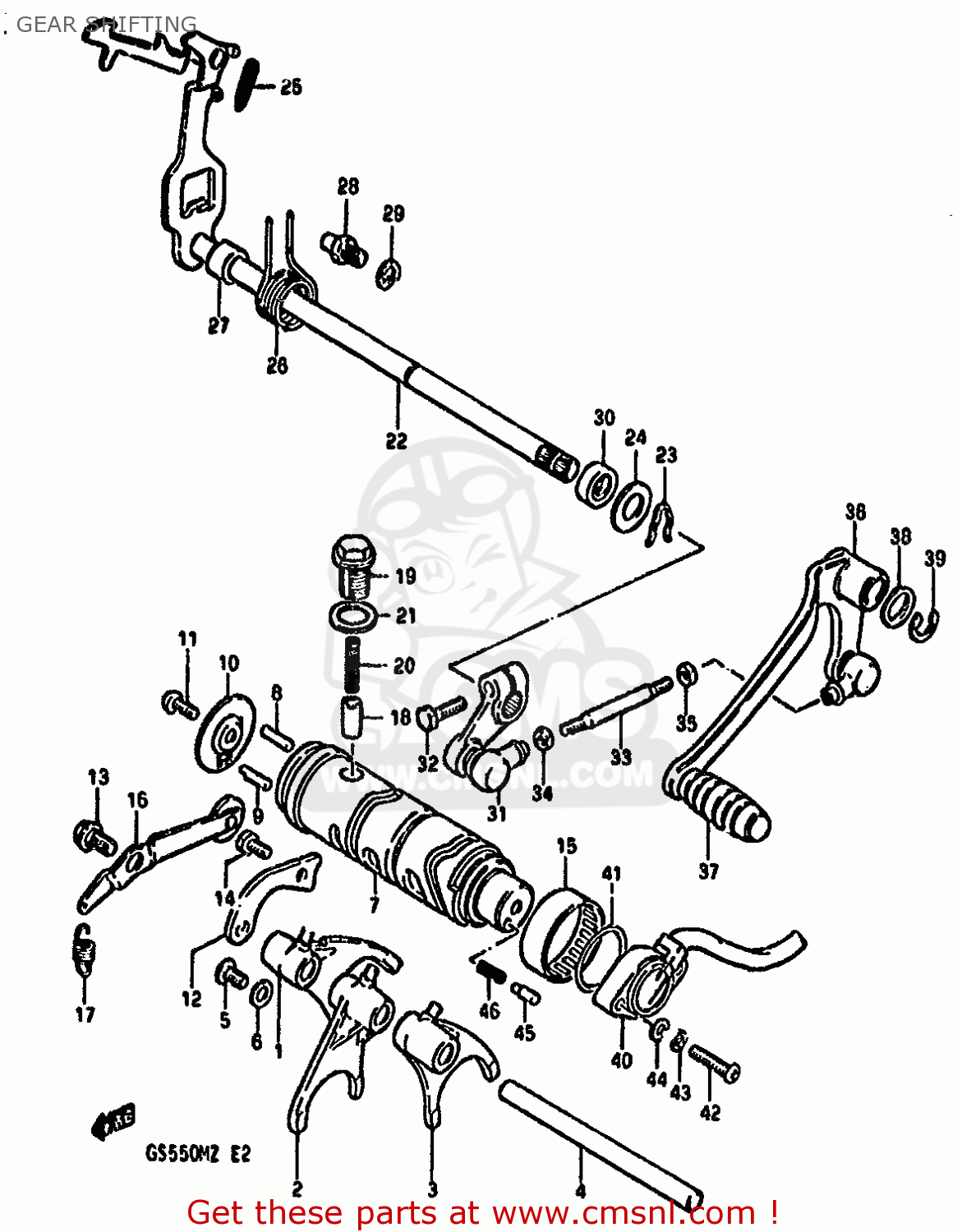

Gear shifting diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

GEAR SHIFTING GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
GEAR SHIFTING GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
GEAR SHIFTING GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
2521144001
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
2522144001
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
2523144000
€ 74.50
4
2541131000
ref: 4
SHAFT,GEAR SHIFT FORK
2541131000
€ 14.50
5
0214206108
ref: 5
SCREW
0214206108
€ 2.00
6
0821106141
ref: 6
WASHER
0821106141
€ 2.50
7
2531147000
ref: 7
CAM,GEAR SHIFT
2531147000
€ 68.50
8
0926104001
ref: 8
PIN(4X18.5)
0926104001
€ 1.50
9
0920904013
ref: 9
PIN
0920904013
€ 5.00
10
2532244000
ref: 10
RETAINER,GEAR SHIFT CAM DR PIN
2532244000
€ 2.50
11
0211206168
ref: 11
SCREW
0211206168
€ 2.50
12
2534144000
ref: 12
GUIDE,GEAR SHIFTING CABLE
€ 6.00
13
0911106019
ref: 13
BOLT
€ 1.50
14
0110706128
ref: 14
BOLT
0110706128
€ 2.00
15
0926340001
ref: 15
BEARING(40X47X12)
0926340001
€ 21.00
16
2535044000
ref: 16
STOPPER,GEAR SHIFT CAM NO.1
2535044000
€ 10.50
17
0944309007
ref: 17
SPRING
0944309007
€ 14.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
20
0944006020
ref: 20
SPRING
0944006020
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22
2551047000
ref: 22
SHAFT,GEAR SHIFT
2551047000
€ 58.50
23
0938412001
ref: 23
SPRING,RETAINER
0938412001
€ 2.00
24
0916012020
ref: 24
WASHER (12.5X27X1.6)
0916012020
€ 2.00
25
0944307013
ref: 25
SPRING
0944307013
€ 2.50
26
0944426012
ref: 26
SPRING
0944426012
€ 3.50
27
0918012068
ref: 27
SPACER(12X20X15.3)
0918012068
€ 3.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29
0916208005
ref: 29
WASHER
€ 2.00
30
0928512002
ref: 30
OIL SEAL
0928512002
€ 7.00
31
2552047000
ref: 31
ARM,GEAR SHIFT LINK
€ 53.50
32
0110706208
ref: 32
BOLT
0110706208
€ 2.00
33
2552547700
ref: 33
ROD,GEAR SHIFT LINK
2552547700
€ 9.00
34
0831011068
ref: 34
NUT
0831011068
€ 2.50
35
0914006011
ref: 35
NUT
0914006011
€ 1.50
36-1
2560047700
ref: 36-1
MODEL X
LEVER ASSY,GEAR SHIFTING
€ 19.00
36-2
2560047701
ref: 36-2
MODEL Z
LEVER ASSEMBLY,GEAR SHIFTING
2560047701
€ 19.00
37
2565216500
ref: 37
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
38
0916012011
ref: 38
WASHER(12.5X20X1)
0916012011
€ 1.50
39
0833131128
ref: 39
CIRCLIP
0833131128
€ 2.00
40
3772045100
ref: 40
TERMINAL BASE ASSY,GEAR SHIFT
3772045100
€ 92.50
41
0928026003
ref: 41
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
42
0211205208
ref: 42
SCREW 5X20
0211205208
€ 3.00
43
0832121058
ref: 43
LOCK WASHER
0832121058
€ 2.00
44
0832221058
ref: 44
WASHER
€ 2.50
45
0920905011
ref: 45
PIN(5X15.5)
0920905011
€ 2.00
46
0944004010
ref: 46
SPRING
0944004010
€ 1.50
