MASTER CYLINDER

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

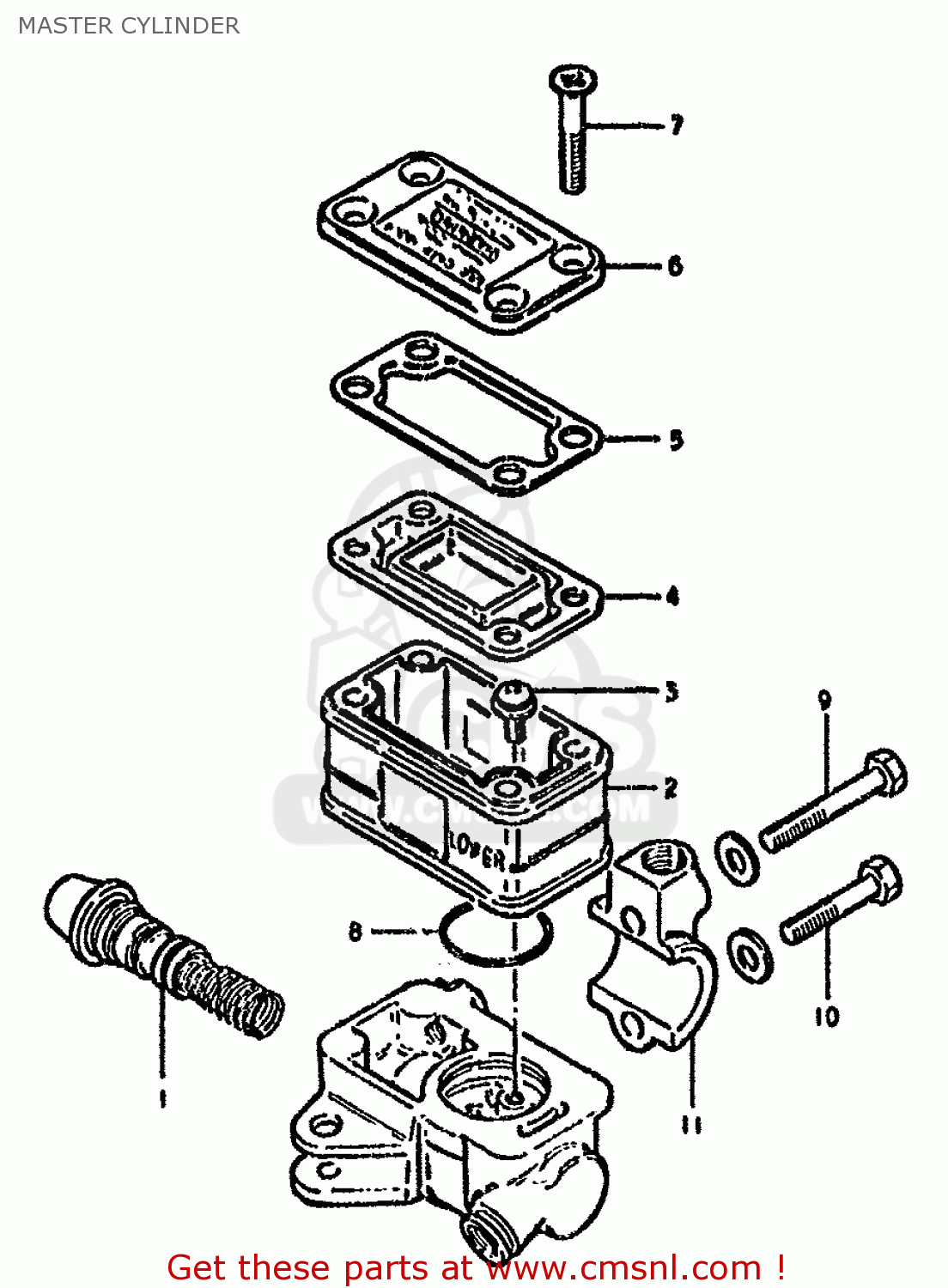

Master cylinder diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

5960049001
ref: 0
MODEL X

CYLINDER ASSEMBLY,MASTER

€ 230.50

5960049010
ref: 0
MODEL Z

CYLINDER ASSY, MASTER

€ 151.00

1-1

5960049810
ref: 1-1
MODEL X

PISTON & CUP SET

€ 48.50

1-2

5960049830
ref: 1-2
MODEL Z

PISTON & CUP SET

€ 46.50

5968749000
ref: 2

RESERVOIR

€ 24.00

5968849000
ref: 3

SCREW,MASTER C

€ 1.00

5966749000
ref: 4

DIAPHRAGM

€ 19.50

5966849000
ref: 5

PLATE,DIAPHRAGM

€ 7.00

5966949000
ref: 6

CAP

€ 25.00

5969149000
ref: 7

SCREW

€ 4.50

5968649000
ref: 8

O RING

€ 6.50

5969449001
ref: 9

BOLT,MASTER CYLINDER H

€ 3.00

5969349001
ref: 10

BOLT,MASTER CYLINDER H

€ 4.00

5967149000
ref: 11

HOLDER

€ 22.50
