STARTER CLUTCH

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

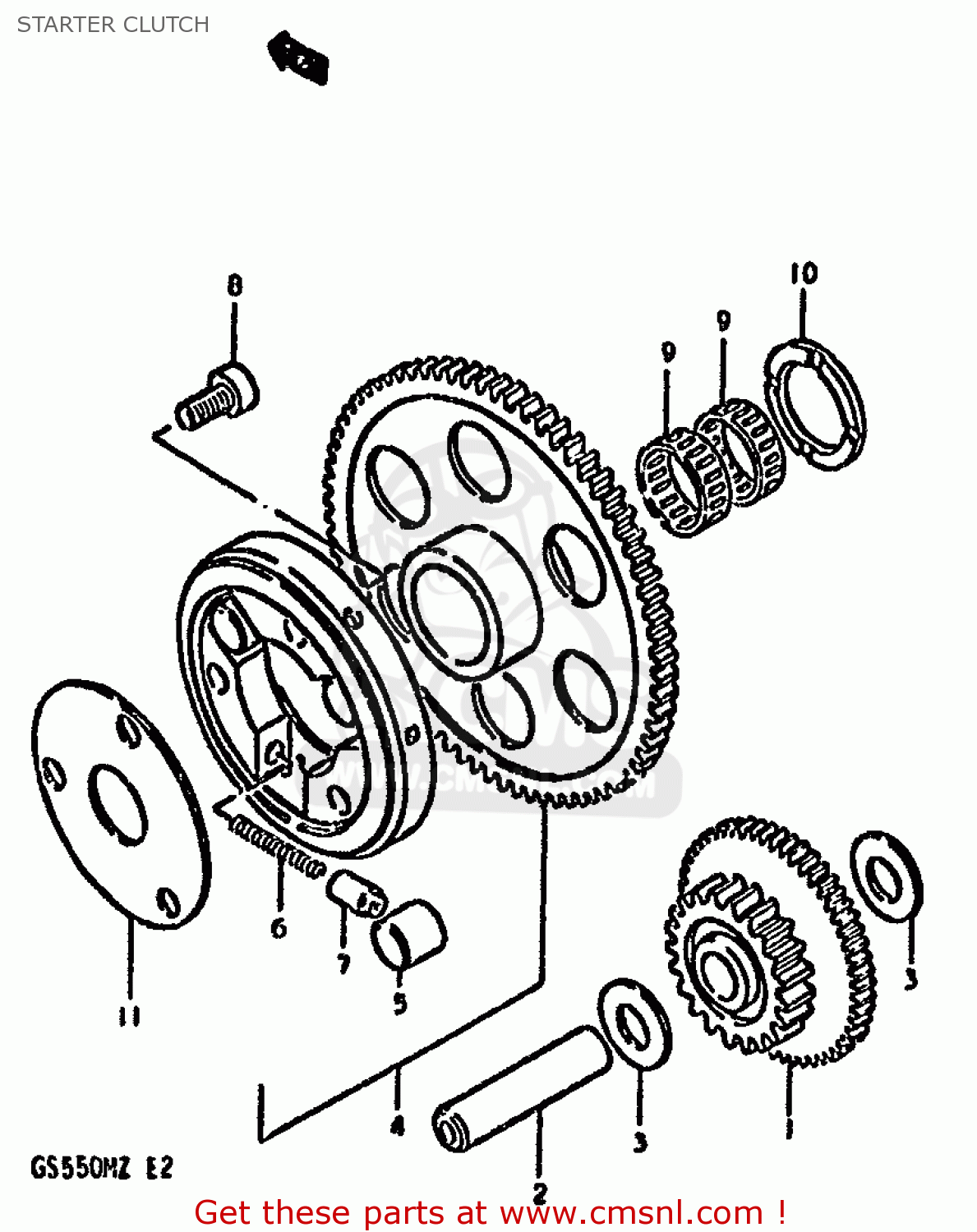

Starter clutch diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1261147000
ref: 1

GEAR,STARTER IDLE

€ 64.50

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

1260047812
ref: 4

CLUTCH SET,STARTER

€ 148.00

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

0944004015
ref: 6

SPRING

€ 2.50

1263331000
ref: 7

PIECE,PUSH

€ 9.00

0910608006
ref: 8

BOLT

€ 3.00

0926325030
ref: 9

ROLLER BEARING (25X30X9

€ 15.00

0916025019
ref: 10

WASHER(25X38X2.5)

€ 10.00

1264945000
ref: 11

SHIM,STARTER CLUTCH HUB

€ 7.00
