STEERING STEM (MODEL X)

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

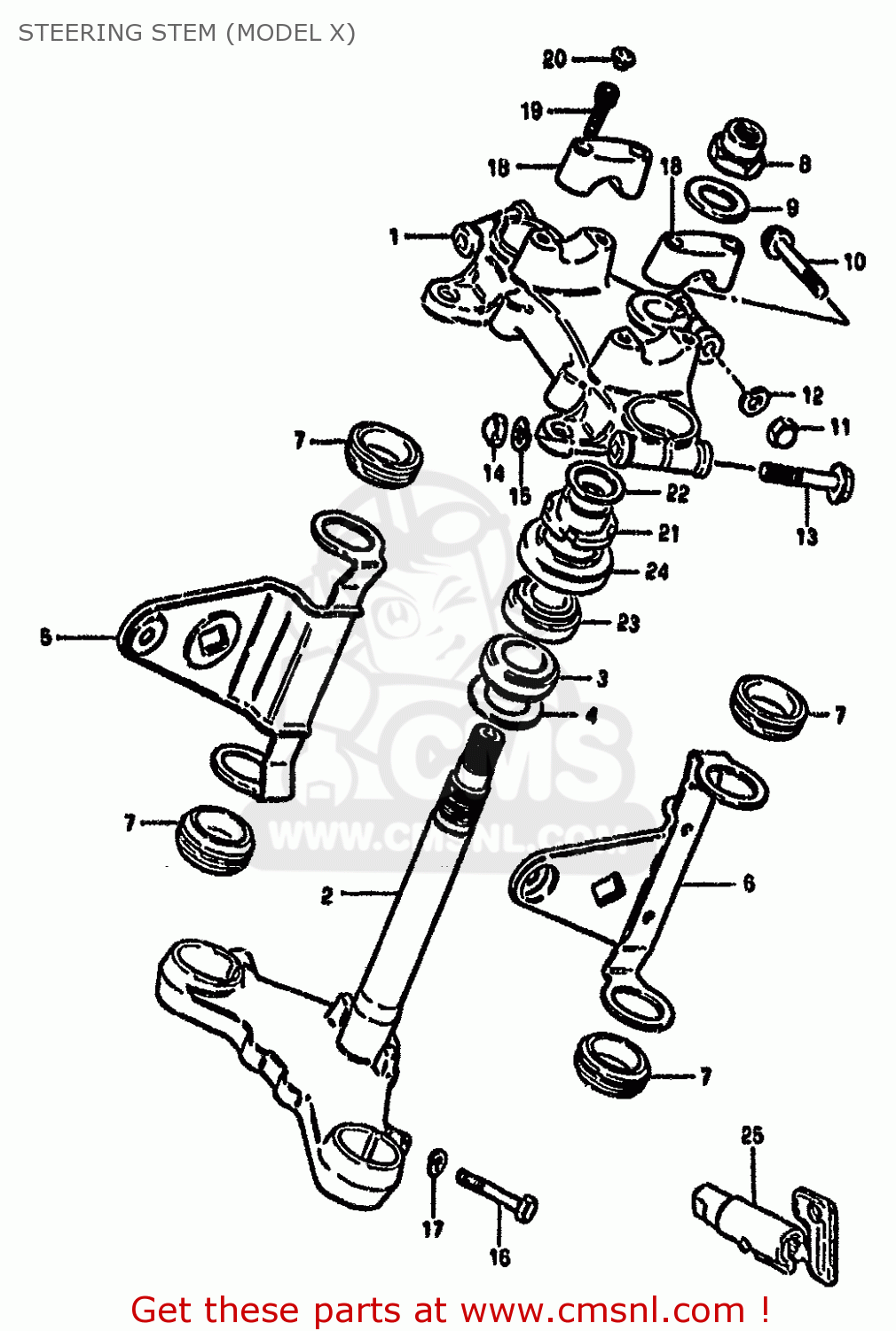

Steering stem (model x) diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

STEERING STEM (MODEL X) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
STEERING STEM (MODEL X) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
STEERING STEM (MODEL X) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
5131134200291
ref: 1
BLACK
HEAD,STEERING STEM
€ 87.50
2-1
5140034830
ref: 2-1
TO 51400-34851
STEM,STEERING
€ 191.50
2-2
5140034840
ref: 2-2
E22
STEM,STEERING
€ 191.50
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153034200291
ref: 5
BLACK
BRACKET,HEADLAMP,RIGHT
5153034200291
€ 57.50
6
5154034200291
ref: 6
BLACK
BRACKET,HEADLAMP,LEFT
5154034200291
€ 43.00
7
5155347000
ref: 7
CUSHION,HEADLAMP BRACKET
€ 3.50
8
5135334300
ref: 8
NUT,STEERING STEM
5135334300
€ 6.50
9
5135634300
ref: 9
WASHER,STEM HEAD
€ 0.00
10
0151708508
ref: 10
BOLT
0151708508
€ 3.50
11
0831311085
ref: 11
NUT,M8X1.25X12
€ 2.00
12
0832121085
ref: 12
LOCK WASHER
€ 2.50
13
0151710558
ref: 13
BOLT 10X55
€ 3.00
14
0914510002
ref: 14
NUT
0914510002
€ 4.00
15
0832131108
ref: 15
LOCK WASHER
€ 2.00
16
0110710408
ref: 16
BOLT 10X40
0110710408
€ 3.00
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
5621134300291
ref: 18
BLACK
HOLDER,HANDLEBAR(BLACK)
5621134300291
€ 42.00
19
0910608013
ref: 19
BOLT
€ 3.00
20
0925006004
ref: 20
CAP(OD:14.5)
0925006004
€ 1.50
21
5163134200
ref: 21
NUT,STEERING STEM
5163134200
€ 23.00
22
0916018002
ref: 22
WASHER(18.5X24X1)
0916018002
€ 2.00
23
0926525008
ref: 23
TAPER,ROLLER BEARING
0926525008
€ 48.50
24
5164340500
ref: 24
DUST SEAL,STEERING,UPPER
5164340500
€ 8.00
25
5190022662
ref: 25
E22
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
