RIGHT HANDLE SWITCH (E4,E17,E22)

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

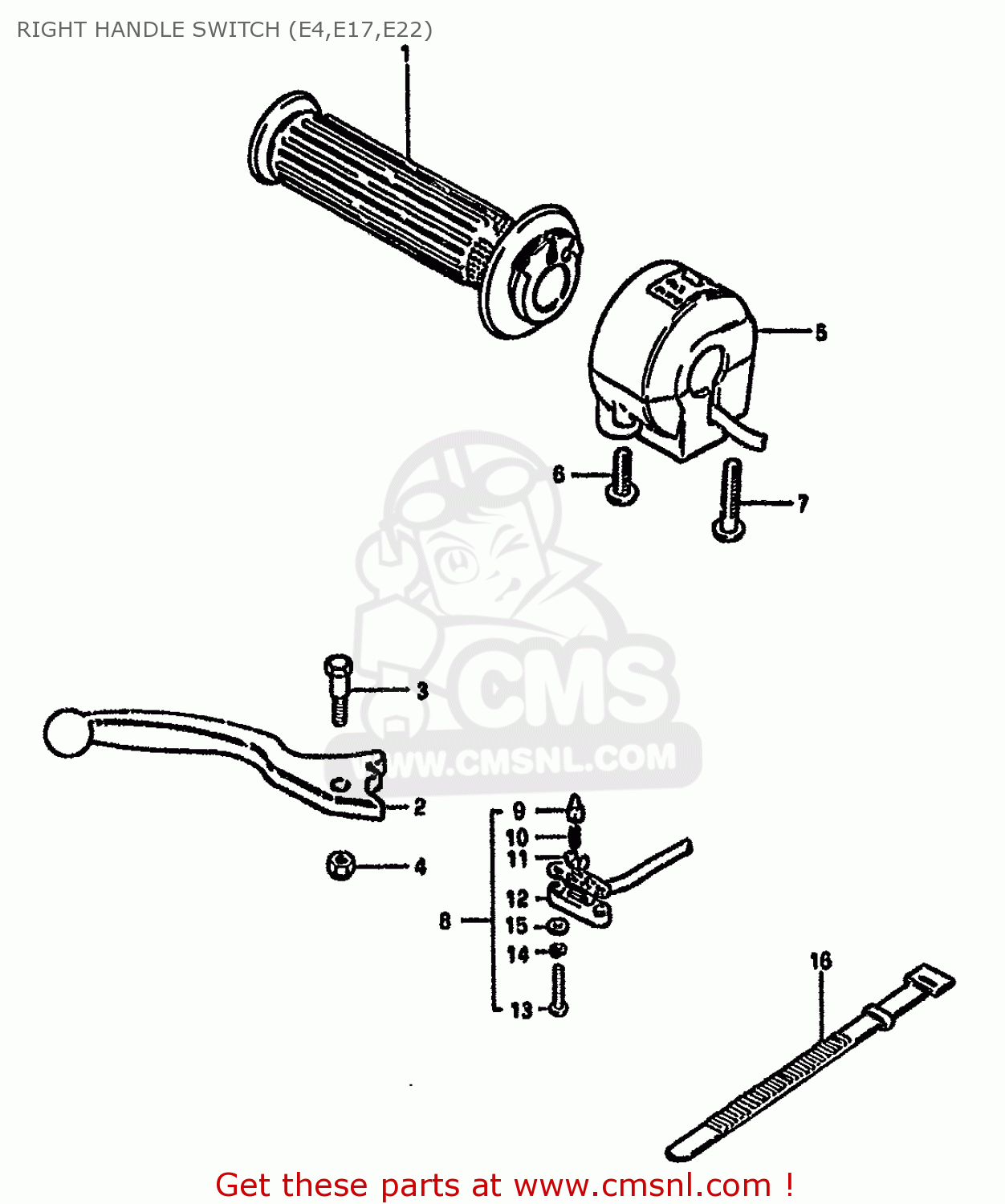

Right handle switch (e4,e17,e22) diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

RIGHT HANDLE SWITCH (E4,E17,E22) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

RIGHT HANDLE SWITCH (E4,E17,E22) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

5711045000
ref: 1

GRIP,THROTTLE

€ 25.50

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720034420
ref: 5-1
MODEL X

SWITCH ASSY, HANDLE RH

€ 118.50

5-2

3720034421
ref: 5-2
MODEL Z

SWITCH ASSY, HANDLE LH

€ 118.50

6

0211205258
ref: 6

SCREW

€ 2.00

7

0211205358
ref: 7

SCREW

€ 1.50

8-1

5746049101
ref: 8-1
MODEL X

SWITCH ASSEMBLY

€ 40.00

8-2

5746049300
ref: 8-2
MODEL Z

SWITCH ASSEMBLY

€ 40.00

9

5746118600
ref: 9

HOLDER

€ 4.50

10

5746218600
ref: 10

SPRING

€ 4.50

11

5746318600
ref: 11

PLATE

€ 4.50

12

5748133010
ref: 12

COVER,FR BK TERMINAL BASE

€ 19.50

13

0912503105
ref: 13

SCREW

€ 2.50

14

0832121038
ref: 14

LOCK WASHER

€ 1.50

15

0832221038
ref: 15

WASHER

€ 2.00

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
