RIGHT HANDLE SWITCH

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

Right handle switch diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

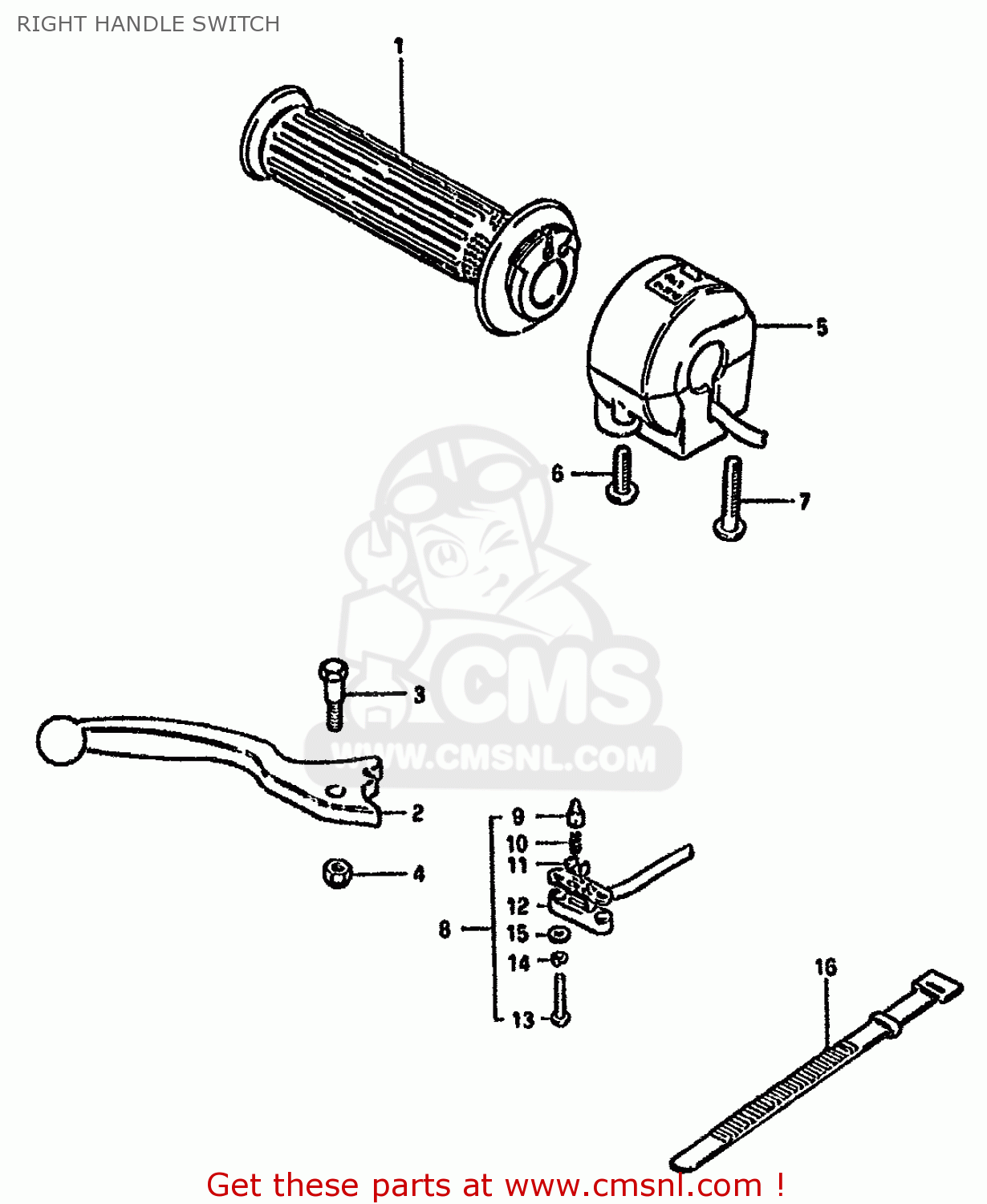

RIGHT HANDLE SWITCH GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

RIGHT HANDLE SWITCH GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

5711045000
ref: 1

GRIP,THROTTLE

€ 25.50

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720034410
ref: 5-1
MODEL X

SWITCH ASSY, HANDLE LH

€ 108.50

5-2

3720034411
ref: 5-2
MODEL Z

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.50

6

0211205258
ref: 6

SCREW

€ 2.00

7

0211205358
ref: 7

SCREW

€ 1.50

8-1

5746049101
ref: 8-1
MODEL X E24,E25

SWITCH ASSEMBLY

€ 40.00

8-2

5746049300
ref: 8-2
MODEL Z E24,E25

SWITCH ASSEMBLY

€ 40.00

9

5746118600
ref: 9
E24,E25

HOLDER

€ 4.50

10

5746218600
ref: 10
E24,E25

SPRING

€ 4.50

11

5746318600
ref: 11
E24,E25

PLATE

€ 4.50

12

5748133010
ref: 12
E24,E25

COVER,FR BK TERMINAL BASE

€ 19.50

13

0912503105
ref: 13
E24,E25

SCREW

€ 2.50

14

0832121038
ref: 14
E24,E25

LOCK WASHER

€ 1.50

15

0832221038
ref: 15
E24,E25

WASHER

€ 2.00

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
