REAR COMBINATION LAMP (E6,E24)

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

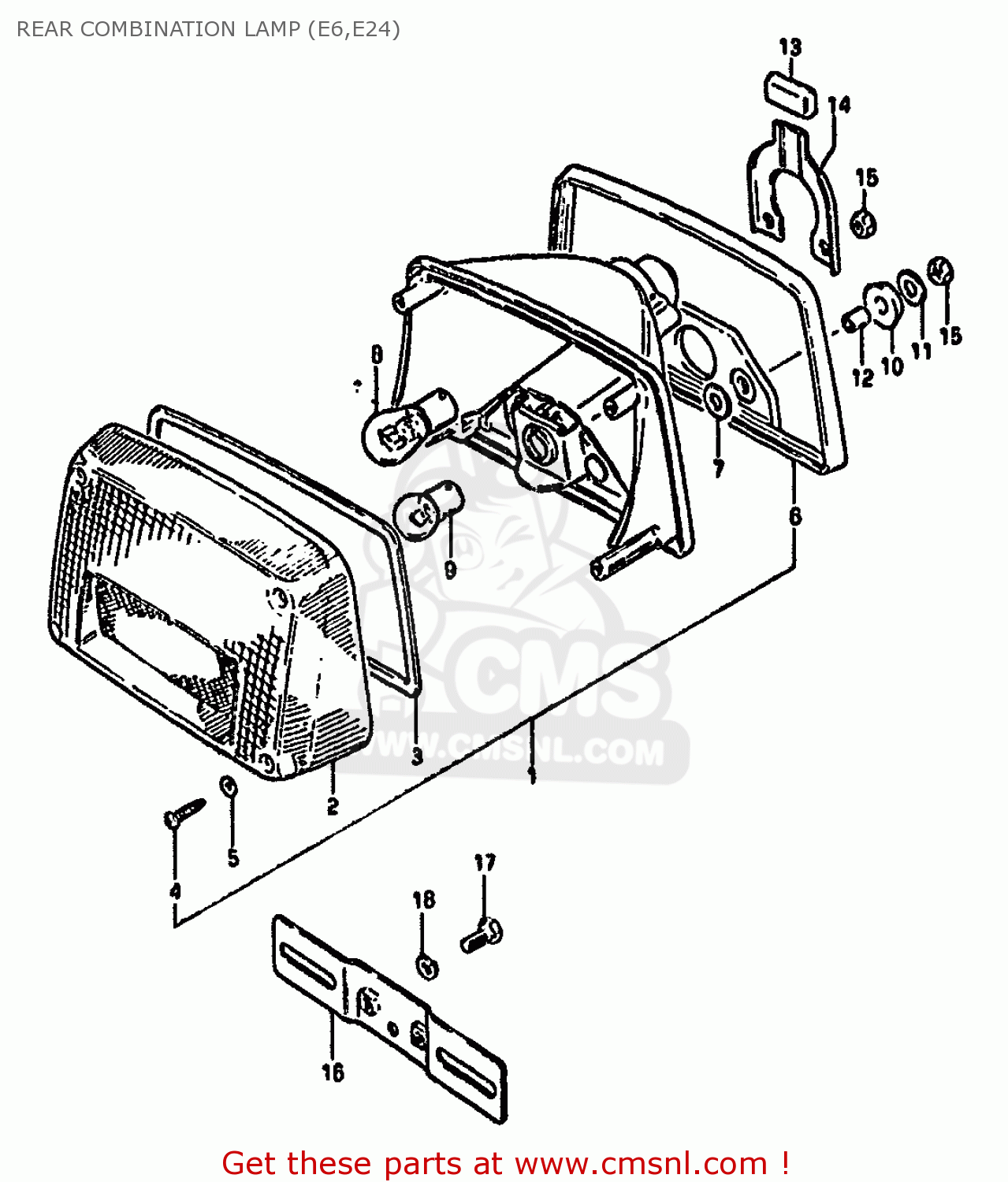

Rear combination lamp (e6,e24) diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

REAR COMBINATION LAMP (E6,E24) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

REAR COMBINATION LAMP (E6,E24) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3571034310
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 245.00

2

3571249031
ref: 2

LENS

€ 43.50

3

3571349030
ref: 3

GASKET (NAS)

€ 12.50

4

3562749030
ref: 4

SCREW,REAR COMBINATION LAMP

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3573334310
ref: 6

CUSHION,REAR COMBINATION LAMP

€ 0.00

7

3572734310
ref: 7

WASHER,REAR COMBINATION LAMP

€ 0.00

8

0947112035
ref: 8

BULB(12V23W)

€ 5.50

9

0947112037
ref: 9

BULB

€ 7.00

10

3576426451
ref: 10
FROM 35764-26450

CUSHION,RR COMBINATION LAMP

€ 0.00

11

0916006060
ref: 11

WASHER

€ 2.00

12

0918006090
ref: 12

SPACER (6.4X9X10.5)

€ 2.00

13

3576434300
ref: 13

CUSHION,REAR COMBINATION LAMP

€ 0.00

14

3579334300
ref: 14

PLATE

€ 2.50

15

0831626068
ref: 15

NUT 6MM

€ 2.00

16

3592734310
ref: 16

BRACKET, LICENSE PLATE

€ 0.00

17

0110706128
ref: 17

BOLT

€ 2.00

18

0832121068
ref: 18

LOCK WASHER

€ 2.50
