FRONT CALIPERS

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

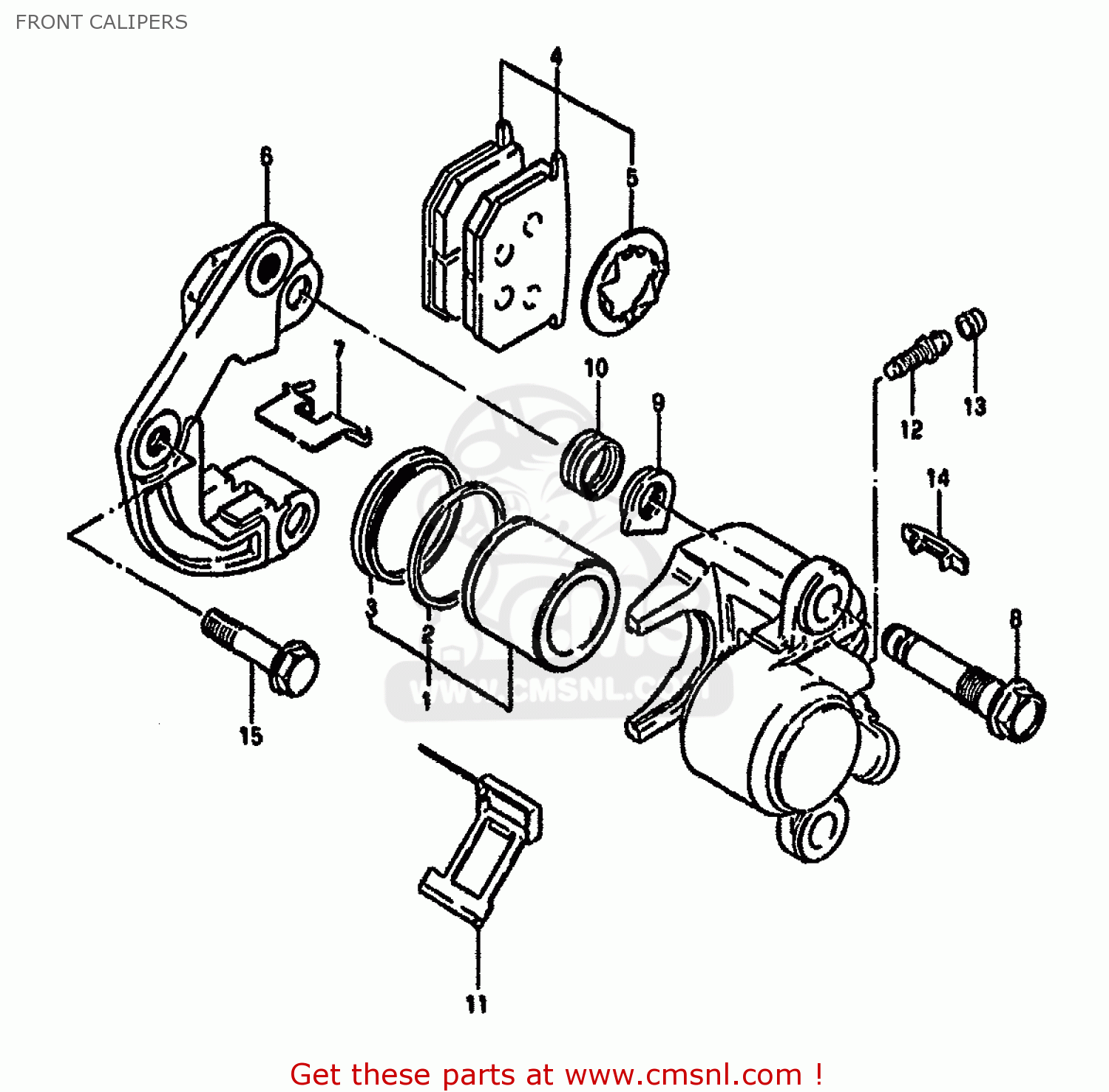

Front calipers diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

FRONT CALIPERS GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

FRONT CALIPERS GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

0

5910049010
ref: 0

CALIPER ASSEMBLY,RIGHT (ASB)

€ 293.00

0

5930049010
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 271.50

1

5930049810
ref: 1

PISTON SET

€ 52.50

2

5910734020
ref: 2

SEAL,PISTON

€ 6.50

3

5930849000
ref: 3

BOOT,PISTON

€ 9.00

4

5930049821
ref: 4

PAD & SHIM SET (MCA)

€ 91.00

5

5937149000
ref: 5

SHIM,PAD

€ 7.00

6-1

5915049010
ref: 6-1

HOLDER,CALIPER,RIGHT

€ 0.00

6-2

5935049010
ref: 6-2

HOLDER,CALIPER,LEFT

€ 0.00

7

5931649001
ref: 7

PAD,GUIDE

€ 11.00

8

5930549000
ref: 8

AXLE,CALIPER

€ 42.00

9

5931749000
ref: 9

NUT,CALIPER AXLE

€ 14.00

10

5931249000
ref: 10

BOOT

€ 30.00

11

5931549000
ref: 11

SPRING

€ 9.50

12

5912147050
ref: 12

BREATHER

€ 11.50

13

5247460020
ref: 13

CAP,BLEEDER PL

€ 6.00

14

5932449000
ref: 14

COVER,INDICATOR

€ 12.50

15

0910310038
ref: 15

BOLT 10X37

€ 3.00
