FUEL TANK

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

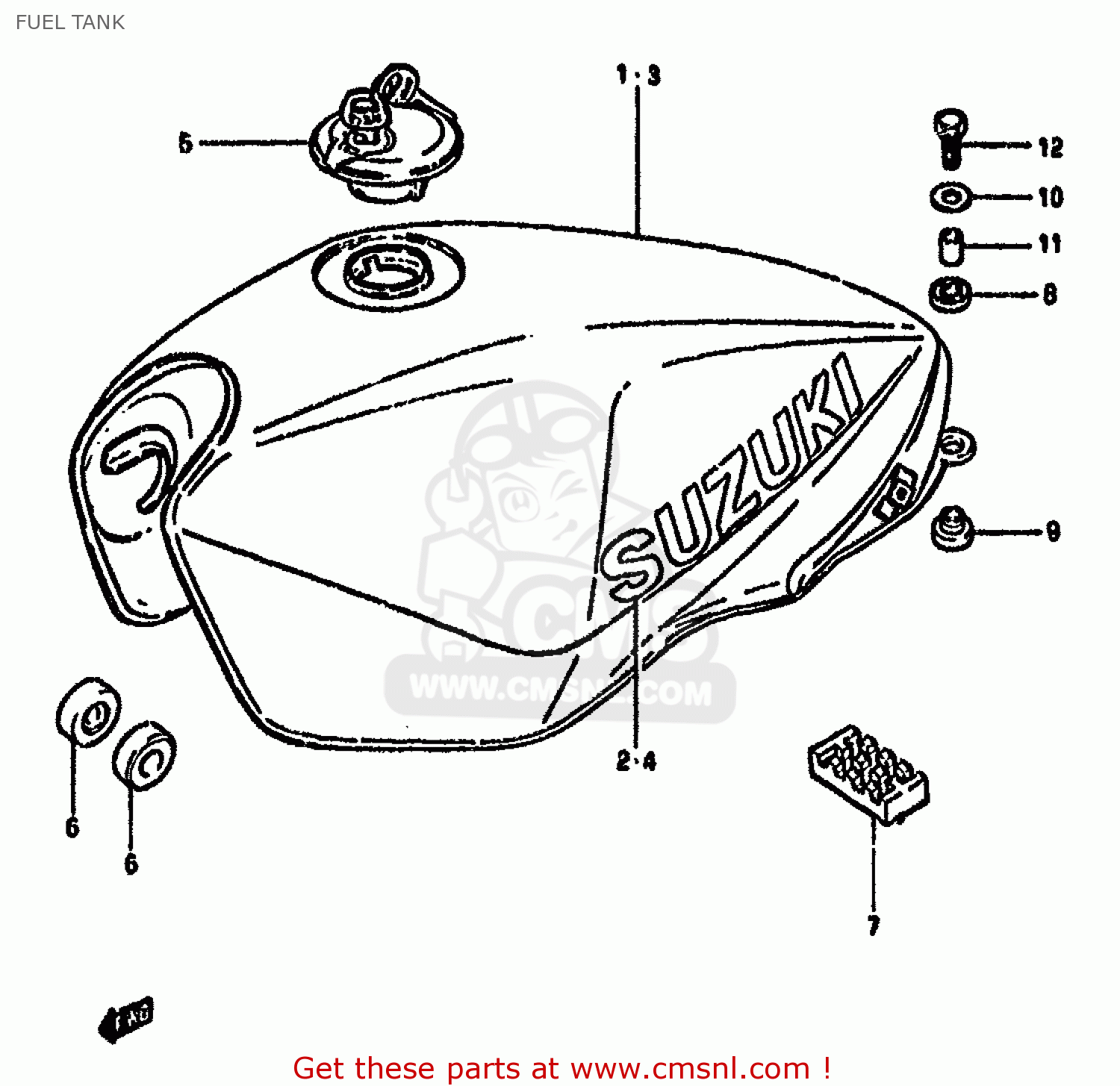

Fuel tank diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1-1

441003430013L
ref: 1-1
MODEL X

TANK, FUEL (SILVER)

€ 392.00

1-2

441003431013L
ref: 1-2
MODEL Z

TANK ASSEMBLY,FUEL

€ 400.50

681113430005F
ref: 2

EMBLEM

€ 18.00

3-1

441003430011W
ref: 3-1
MODEL X

TANK,FUEL (RED)

€ 392.00

3-2

441003431011W
ref: 3-2
MODEL Z

TANK ASSEMBLY,FUEL

€ 0.00

6811134300064
ref: 4

EMBLEM

€ 15.00

4420034301KEY
ref: 5

CAP SET,FUEL TANK

€ 135.50

0932910007
ref: 6

CUSHION

€ 3.00

4454134500
ref: 7

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 8

CUSHION

€ 3.00

0932010020
ref: 9

CUSHION

€ 4.00

0916006004
ref: 10

WASHER (6.5X24X1.6)

€ 1.50

0918006072
ref: 11

SPACER

€ 2.00

0110706308
ref: 12

BOLT

€ 2.50
