SEAT
GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

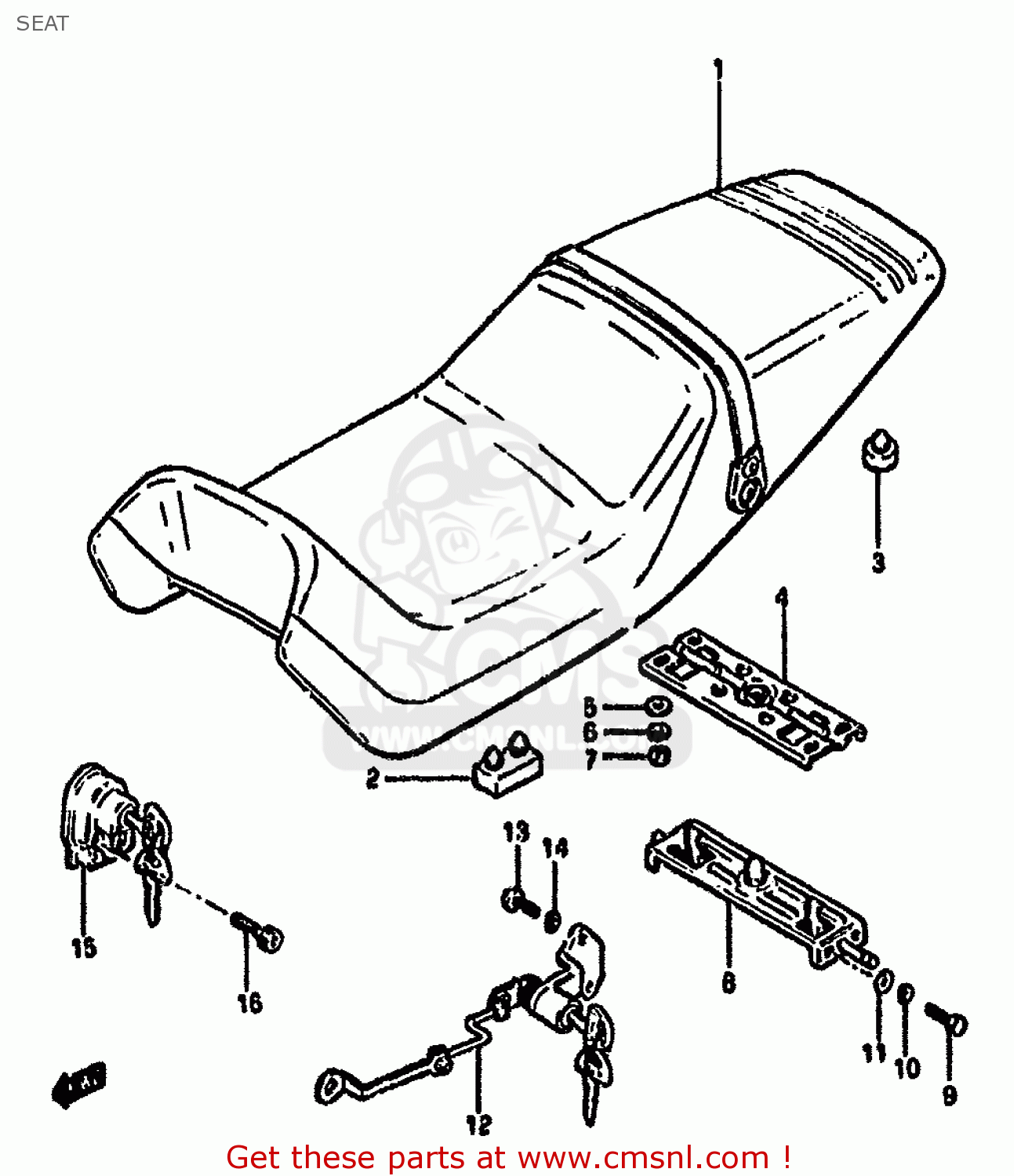

Seat diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
SEAT GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004770079W
ref: 1-1
MODEL X
SEAT ASSY
€ 455.00
1-2
451004770279W
ref: 1-2
MODEL Z
SEAT ASSEMBLY
€ 0.00
1-3
451004770040P
ref: 1-3
MODEL X
SEAT ASSY (BLACK)
€ 0.00
1-4
451004770240P
ref: 1-4
MODEL Z
SEAT ASSEMBLY
€ 0.00
2
0932108006
ref: 2
CUSHION
€ 3.00
3
0932110001
ref: 3
CUSHION
€ 2.50
4
4512434300
ref: 4
PLATE,SEAT LOCK GUIDE
€ 12.50
5
0832221068
ref: 5
WASHER
€ 2.00
6
0832121068
ref: 6
LOCK WASHER
€ 2.50
7
0831022068
ref: 7
NUT 6MM
€ 2.50
8
4522034300
ref: 8
CLAMP, SEAT
€ 55.50
9
0110405108
ref: 9
BOLT
€ 1.50
10
0832121058
ref: 10
LOCK WASHER
€ 2.00
11
0832221058
ref: 11
WASHER
€ 2.50
12
9570034810
ref: 12
LOCK ASSEMBLY,SEAT
€ 46.50
13
0214205108
ref: 13
SCREW RH & LH
€ 2.50
14
0832121058
ref: 14
LOCK WASHER
€ 2.00
15
9570034210
ref: 15
LOCK ASSY,HELMET
€ 59.00
16
0910605008
ref: 16
BOLT 5X25
€ 2.00
