TURN SIGNAL LAMP (E6,E24)

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

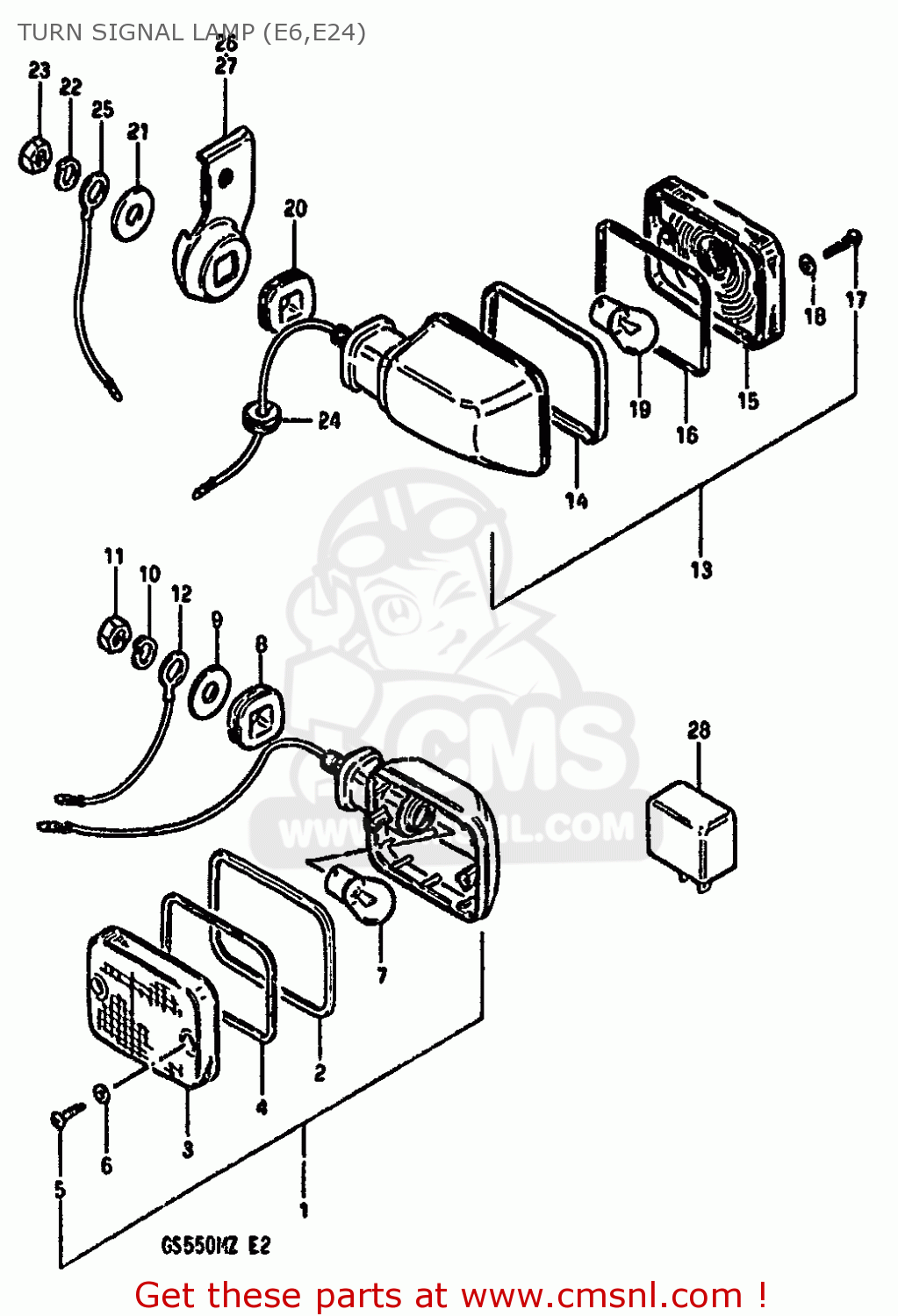

Turn signal lamp (e6,e24) diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

TURN SIGNAL LAMP (E6,E24) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
TURN SIGNAL LAMP (E6,E24) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
TURN SIGNAL LAMP (E6,E24) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3560144123999
ref: 1-1
MODEL X
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 102.00
1-2
3560145510
ref: 1-2
MODEL Z
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560145510
€ 70.00
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3
3561249231
ref: 3
LENS
3561249231
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112006
ref: 7
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
8
0932015002
ref: 8
CUSHION
0932015002
€ 4.50
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121108
ref: 10
LOCK WASHER
0832121108
€ 2.00
11
0831012108
ref: 11
NUT
0831012108
€ 2.50
12
3686245000
ref: 12
MODEL X
WIRE
€ 5.00
13-1
3560144123999
ref: 13-1
MODEL X
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 102.00
13-2
3560145510
ref: 13-2
MODEL Z
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560145510
€ 70.00
14
3561149230
ref: 14
RIM
3561149230
€ 11.00
15
3561249231
ref: 15
LENS
3561249231
€ 13.00
16
3561349230
ref: 16
GASKET (NAS)
3561349230
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0947112006
ref: 19
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
20
0932015002
ref: 20
CUSHION
0932015002
€ 4.50
21
0916010006
ref: 21
WASHER (10.5X30X2.3)
0916010006
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
0832121108
€ 2.00
23
0831012108
ref: 23
NUT
0831012108
€ 2.50
24
0930805011
ref: 24
GROMMET
0930805011
€ 2.00
25
3686245000
ref: 25
MODEL X
WIRE
€ 5.00
26
3562047700
ref: 26
BRACKET,REAR TURN SIGNAL
€ 9.50
27
3564047700
ref: 27
BRACKET,REAR TURN SIGNAL
€ 9.50
28
3861045031
ref: 28
RELAY,TURN SIGNAL
3861045031
€ 54.50
