REAR WHEEL

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

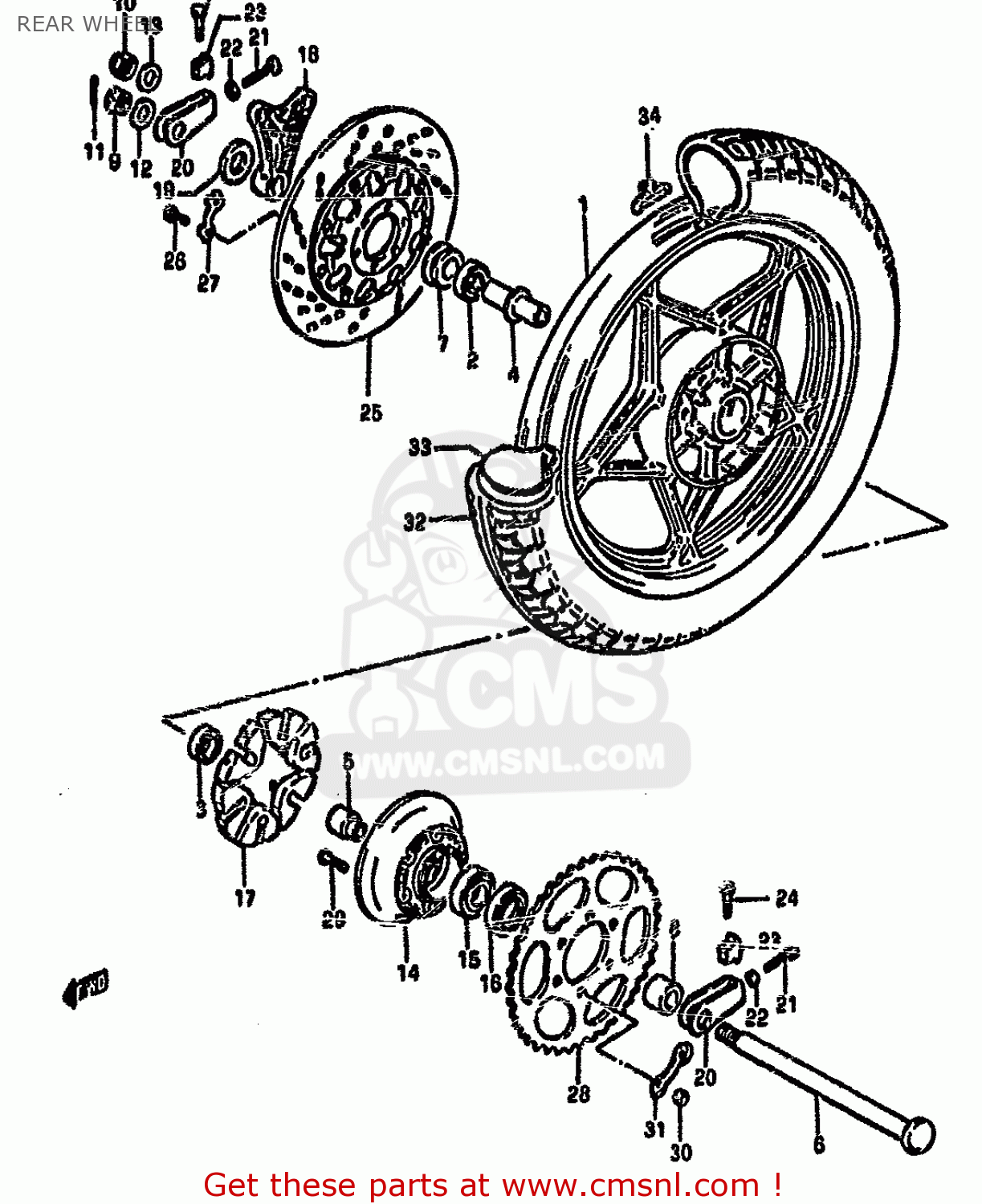

Rear wheel diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

REAR WHEEL GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
REAR WHEEL GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
REAR WHEEL GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
641114930012U
ref: 1-1
CASTING WHEEL,REAR 2.15
641114930012U
€ 420.00
1-2
641114930010V
ref: 1-2
WHEEL,REAR
€ 420.00
2
0813363037
ref: 2
BEARING
0813363037
€ 28.50
3
0815363037
ref: 3
BEARING
0815363037
€ 19.50
4
6473145000
ref: 4
SPACER,REAR HUB BEARING
6473145000
€ 18.50
5
6473347000
ref: 5
RETAINER,REAR SPROCKET D
€ 16.50
6
6471147200
ref: 6
AXLE,REAR
6471147200
€ 30.50
7
6474047001
ref: 7
SPACER,REAR AXLE
6474047001
€ 12.50
8
0918017048
ref: 8
SPACER (17X33X21.1)
0918017048
€ 7.50
9
0914116001
ref: 9
NUT
0914116001
€ 6.50
10
0915916002
ref: 10
MODEL X:E22 MODEL Z:
NUT
0915916002
€ 5.00
11
0411140308
ref: 11
PIN,COTTER
0411140308
€ 1.50
12
0916017013
ref: 12
WASHER (17X30X3.2)
0916017013
€ 2.00
13
0832211168
ref: 13
MODEL X E22
WASHER
0832211168
€ 2.00
14
6461131001
ref: 14
DRUM,REAR SPROCKET MOUNT
€ 140.00
15
0811363050
ref: 15
BEARING
0811363050
€ 21.50
16
0928533001
ref: 16
SEAL,OIL(33X62X7)
0928533001
€ 20.00
17
6465131000
ref: 17
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
18
6972147001
ref: 18
BRACKET,RR,CALIPER
6972147001
€ 27.50
19
6474147300
ref: 19
SPACER,REAR CARIPER BRACKET
€ 7.00
20-1
6141033000
ref: 20-1
MODEL X
ADJUSTER,CHAIN
6141033000
€ 58.00
20-2
6141047200
ref: 20-2
MODEL Z
ADJUSTER,CHAIN
6141047200
€ 58.00
21-1
0910408006
ref: 21-1
MODEL X
BOLT
0910408006
€ 3.00
21-2
0910408018
ref: 21-2
MODEL Z
BOLT 8X50
0910408018
€ 3.00
22
0831012088
ref: 22
NUT
0831012088
€ 2.00
23
6143331000
ref: 23
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
24
0151708508
ref: 24
BOLT
0151708508
€ 3.50
25
5921018460
ref: 25
DISC,BRAKE
€ 0.00
26
0910008094
ref: 26
BOLT(8X30)
0910008094
€ 2.50
27
0916908016
ref: 27
WASHER
0916908016
€ 3.50
28-1
6451147600
ref: 28-1
SPROCKET,RR
6451147600
€ 57.00
28-2
6451147630
ref: 28-2
X E22,Z (E22,E25)
SPROCKET,REAR (NT:51)
€ 80.00
28-3
6451131741
ref: 28-3
Z E17
SPROCKET,REAR (NT:49)
€ 113.50
29
0911910002
ref: 29
BOLT
0911910002
€ 3.50
30
0831012108
ref: 30
NUT
0831012108
€ 2.50
31
0916910007
ref: 31
WASHER
0916910007
€ 7.50
32-1
6510034530
ref: 32-1
BS
TIRE
€ 0.00
32-2
6510034550
ref: 32-2
DUNLOP
TIRE
€ 0.00
32-3
6510045430
ref: 32-3
BS X E22,Z (E22,E25)
TIRE
€ 0.00
33-1
6520047620
ref: 33-1
TUBE ASSEMBLY,WHEEL,INNER
€ 0.00
33-2
6520015030
ref: 33-2
X E22,MODEL Z
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
34-1
5541147001
ref: 34-1
BALANCER,WHEEL
5541147001
€ 4.00
34-2
5541247001
ref: 34-2
BALANCER,WHEEL
5541247001
€ 3.50
