FRONT WHEEL

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

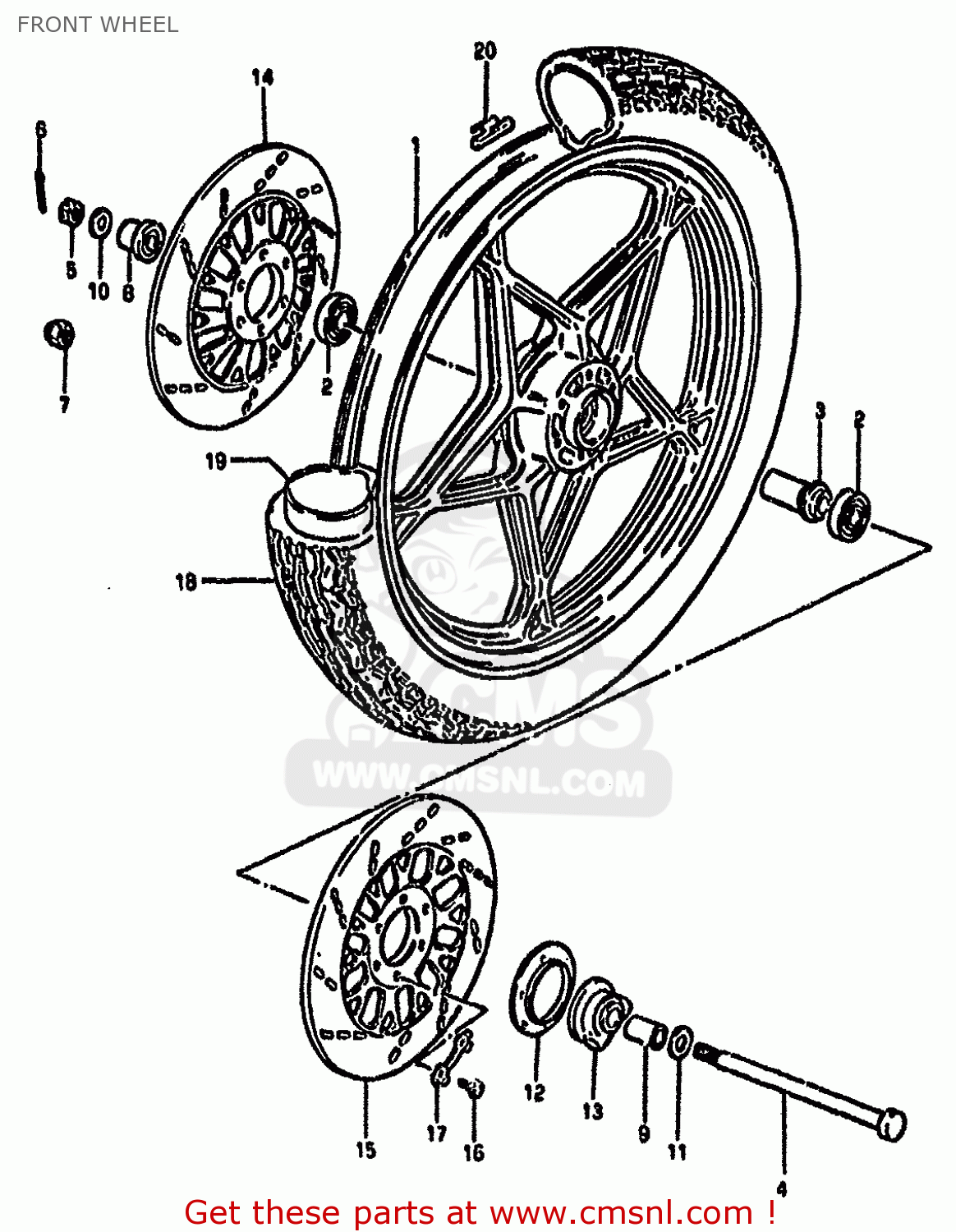

Front wheel diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

FRONT WHEEL GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
FRONT WHEEL GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
FRONT WHEEL GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
541114930010V
ref: 1-1
WHITE
WHEEL,FRONT (1.85-19)
€ 0.00
1-2
541114930012U
ref: 1-2
DARK GRAY
WHEEL, FRONT (19X1.85) (GRAY)
€ 491.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471133002
ref: 4
AXLE,FRONT
5471133002
€ 41.00
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
0915912004
ref: 7
E22,E25
NUT
€ 8.50
8
5474018410
ref: 8
SPACER,FR HUB BEARING,R
5474018410
€ 17.00
9
0918015034
ref: 9
SPACER(15X22X30)
0918015034
€ 7.00
10
0832221128
ref: 10
WASHER
0832221128
€ 2.00
11
0832211148
ref: 11
E22,E25
WASHER
0832211148
€ 2.00
12
5487145010
ref: 12
DUST SEAL,SPEEDOMETER GEAR BOX
5487145010
€ 21.00
13
5460018401
ref: 13
BOX ASSEMBLY,SPEEDOMETER GEAR
5460018401
€ 90.50
14
5921145260
ref: 14
DISC,BRAKE
€ 0.00
15
5922145260
ref: 15
DISC,BRAKE
€ 175.50
16
0910008175
ref: 16
BOLT(8X28)
0910008175
€ 2.50
17
0916908029
ref: 17
WASHER
0916908029
€ 3.50
18-1
5510034530
ref: 18-1
BS MODEL Z
TIRE,FRONT
€ 0.00
18-2
5510034550
ref: 18-2
DUNLOP
TIRE,FRONT
€ 86.50
18-3
5510045430
ref: 18-3
BS E22,E25
TIRE,FRONT
€ 0.00
19-1
5520015030
ref: 19-1
MODEL Z
TUBE,INNER
€ 41.00
19-2
5520044610
ref: 19-2
MODEL X
TUBE
€ 41.00
19-2
5520015030
ref: 19-2
E22
TUBE,INNER
€ 41.00
20-1
5541147001
ref: 20-1
BALANCER,WHEEL
5541147001
€ 4.00
20-2
5541247001
ref: 20-2
BALANCER,WHEEL
5541247001
€ 3.50
