FRONT BRAKE HOSE (MODEL Z)

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

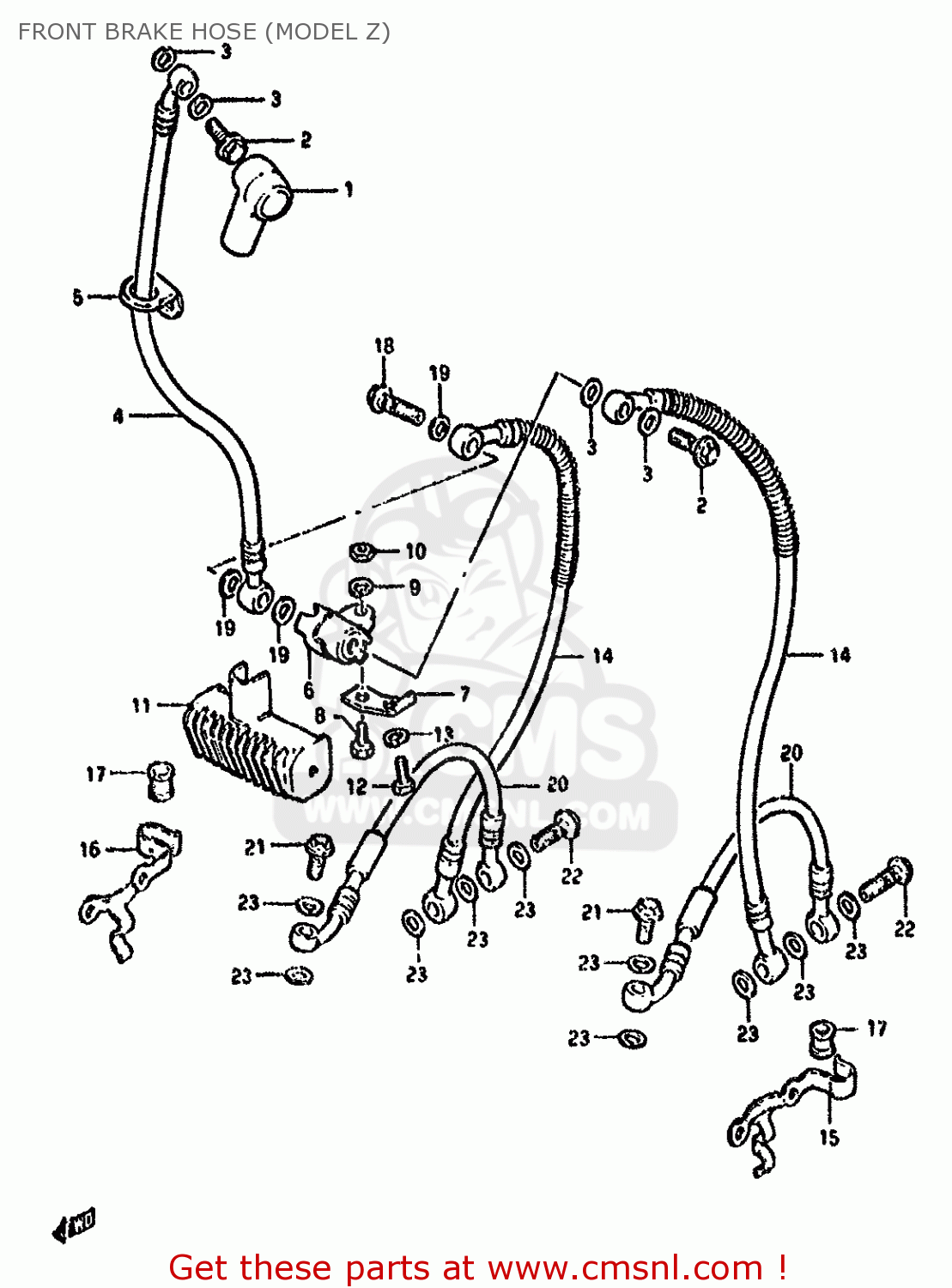

Front brake hose (model z) diagram GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

FRONT BRAKE HOSE (MODEL Z) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

FRONT BRAKE HOSE (MODEL Z) GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010007
ref: 2

BOLT,UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4

5948047700
ref: 4

HOSE, BRAKE NO.1 (FLAT HANDLEBAR)

€ 0.00

5

5924331010
ref: 5

GUIDE,BRAKE HOSE NO.1

€ 3.00

6

5949145000
ref: 6

JOINT,BRAKE HOSE

€ 29.00

7

5949247700
ref: 7

BRACKET

€ 0.00

8

0110706128
ref: 8

BOLT

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0831011068
ref: 10

NUT

€ 2.50

11

5949534300
ref: 11

COVER,BRAKE HOSE JOINT

€ 17.00

12

0110706208
ref: 12

BOLT

€ 2.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

5924047700
ref: 14

HOSE,FRONT BRAKE

€ 52.00

15

5927034300
ref: 15

CLAMP,FRONT BRAKE HOSE

€ 0.00

16

5926034300
ref: 16

CLAMP,FRONT BRAKE HOSE

€ 0.00

17

5924449000
ref: 17

BUSH,BRAKE HOSE GUIDE,NO.2

€ 4.50

18

0936010008
ref: 18

BOLT,UNION

€ 7.00

19

0916110005
ref: 19

WASHER

€ 2.00

20

5952047700
ref: 20

HOSE,ANTINOSE

€ 0.00

21

0936010007
ref: 21

BOLT,UNION

€ 6.50

22

0936010008
ref: 22

BOLT,UNION

€ 7.00

23

0916110005
ref: 23

WASHER

€ 2.00
