BATTERY

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

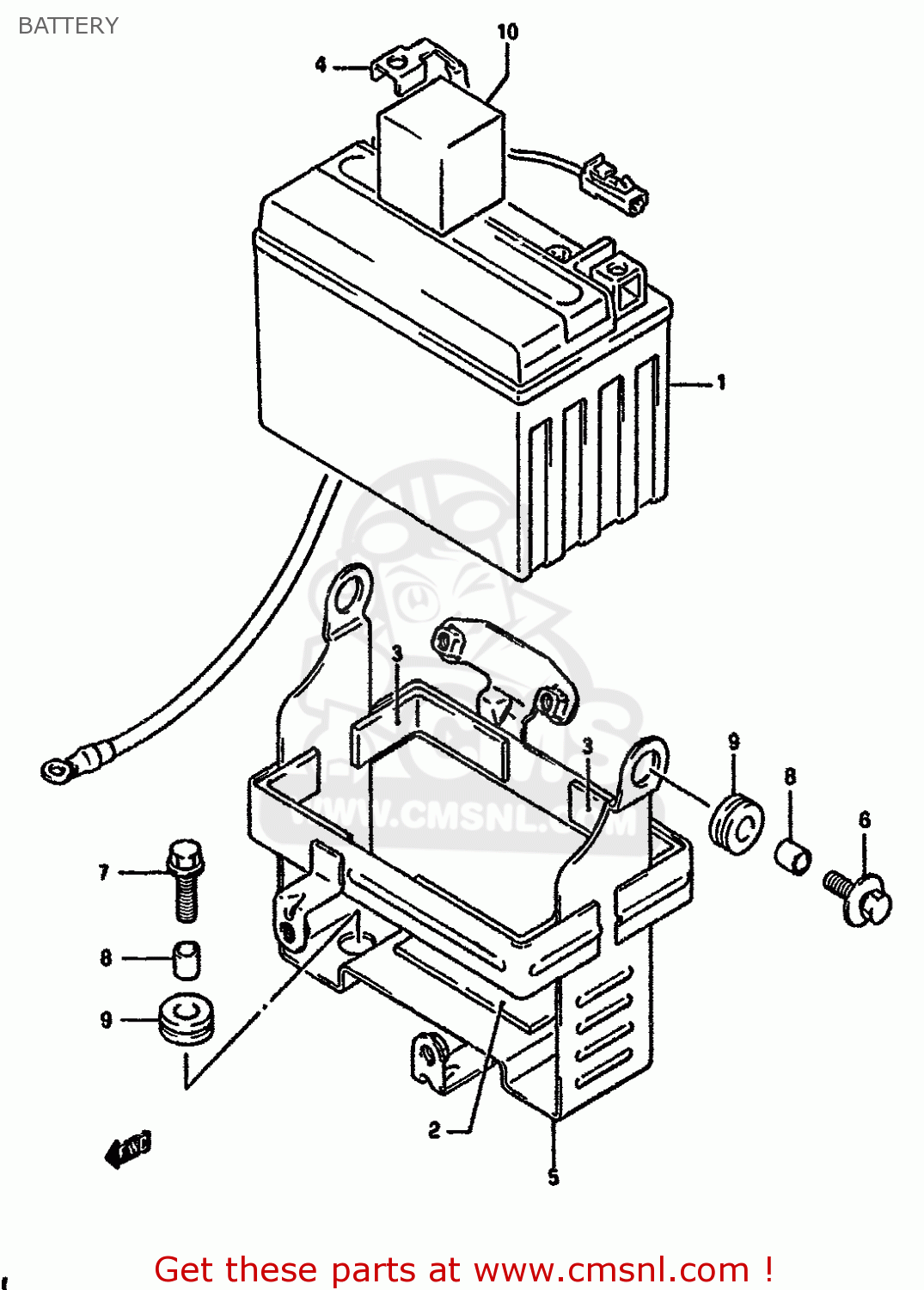

Battery diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3361032C01
ref: 1-1
MODEL M

BATTERY (YTX9-BS,12V8AH)

€ 108.50

1-2

3361032C10
ref: 1-2
MODEL N/P

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

1-3

3361032C01
ref: 1-3
MODEL N/P:E30

BATTERY (YTX9-BS,12V8AH)

€ 108.50

3365219B00
ref: 2
CUT 27X80

CUSHION,BATTERY(80X27X3)

€ 4.50

3-1

3365229100
ref: 3-1

PROTECTOR,20X9

€ 5.00

3-2

3365137000
ref: 3-2
CUT 20X90

PROTECTOR(170X95X3.0)

€ 5.00

3386010D00
ref: 4

WIRE,BATTERY MINUS LEAD

€ 16.50

5-1

4154010D00
ref: 5-1
~F.NO.GK75A-108159

HOLDER COMP,BATTERY

€ 38.50

5-2

4154010D01
ref: 5-2
MODEL M:F.NO.GK75A-1

HOLDER,BATTERY

€ 38.50

5-3

4154010D02
ref: 5-3
MODEL N/P

HOLDER,BATTERY

€ 38.50

0911606083
ref: 6

BOLT

€ 2.00

0151706204
ref: 7

BOLT 6X20

€ 2.50

0918006103
ref: 8

SPACER(6.2X9X7.5)

€ 1.50

0932008007
ref: 9

CUSHION

€ 4.00

4457610D00
ref: 10

CUSHION,BATTERY 35X35X

€ 3.50
