TRANSMISSION

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

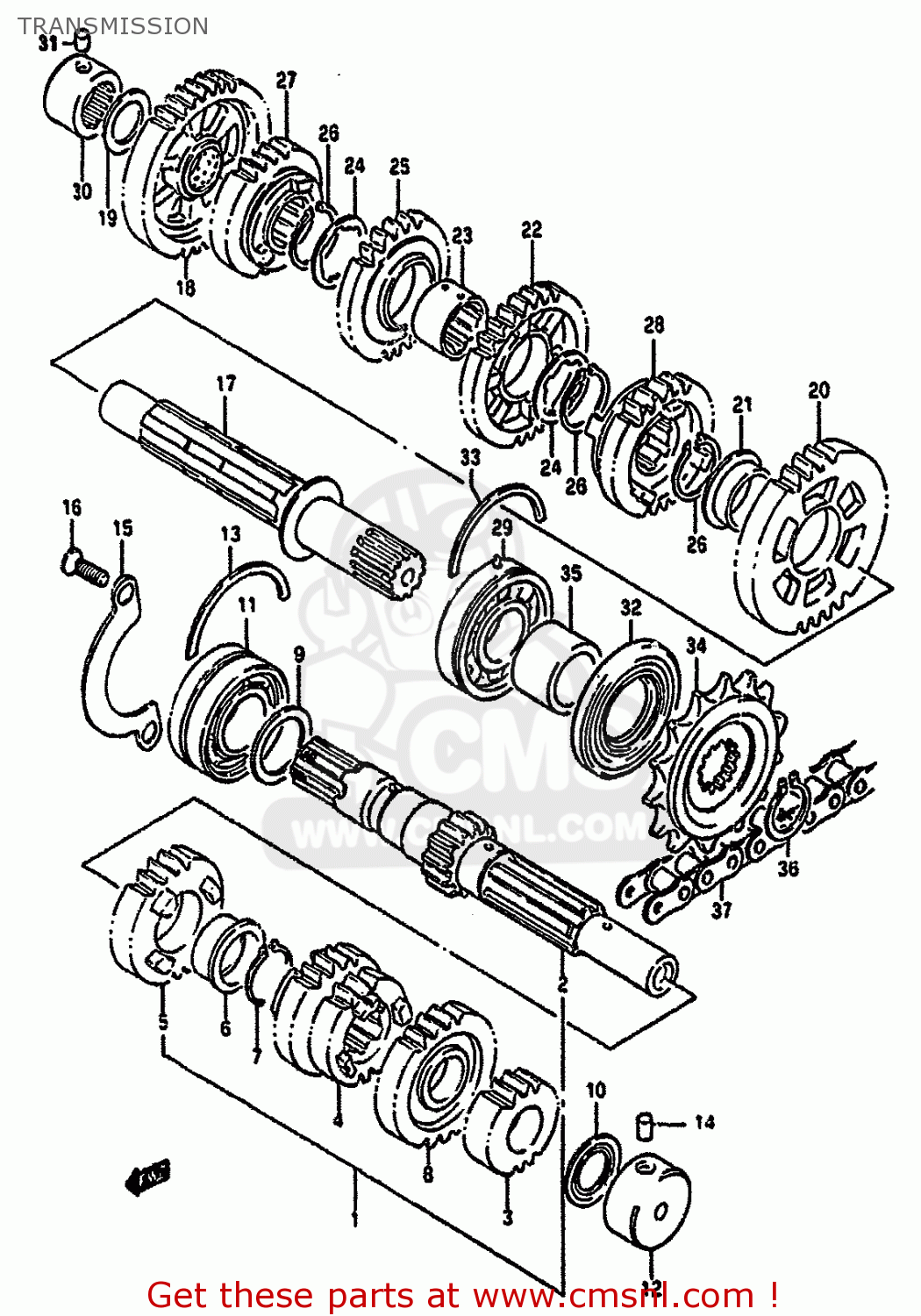

Transmission diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

TRANSMISSION GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
TRANSMISSION GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
TRANSMISSION GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
2412032C00
ref: 1-1
MODEL M/N
SHAFT,COUNTER
€ 188.50
1-2
2412034C00
ref: 1-2
MODEL P
SHAFT,COUNTER
€ 195.50
2
2412130B01
ref: 2
COUNTER SHAFT NT:11
€ 189.00
3
2422130B00
ref: 3
GEAR,2ND DRIVE
€ 63.00
4
2423132C02
ref: 4
GEAR,3RD & 4TH DRIVE(NT:16/16)
2423132C02
€ 114.50
5
2425132C01
ref: 5
GEAR,5TH DRIVE(NT:24)
2425132C01
€ 72.50
6
0930122003
ref: 6
BUSH
0930122003
€ 17.50
7
0833131226
ref: 7
CIRCLIP
0833131226
€ 2.00
8-1
2426032C00
ref: 8-1
MODEL M/N
GEAR,6TH DRIVE(NT:20)
2426032C00
€ 74.50
8-2
2426034C00
ref: 8-2
MODEL P
GEAR,SIXTH DRIVE
€ 112.50
9
0821125341
ref: 9
WASHER
0821125341
€ 3.50
10
0928517003
ref: 10
SEAL,OIL(17X28.5X2.5)
0928517003
€ 7.50
11
0926725008
ref: 11
BEARING(25X52X19.6)
0926725008
€ 79.00
12
0926317044
ref: 12
BEARING(17X34X16)
0926317044
€ 52.50
13
0939058001
ref: 13
C RING
0939058001
€ 2.00
14
0422107129
ref: 14
PIN
0422107129
€ 1.50
15
2474138401
ref: 15
RETAINER,CNTR SHAFT BEARING
€ 5.50
16
0212206167
ref: 16
SCREW
0212206167
€ 2.00
17
2413132C00
ref: 17
SHAFT,DRIVE
2413132C00
€ 186.50
18
2431030B00
ref: 18
GEAR,FIRST DRIVEN
€ 114.50
19
0821120321
ref: 19
WASHER,THRUST
€ 3.00
20
2432130B00
ref: 20
GEAR,2ND DRIVEN
€ 108.50
21
0930125002
ref: 21
BUSH
0930125002
€ 10.50
22
2433130B00
ref: 22
GEAR,3RD DRIVEN
2433130B00
€ 107.50
23
2433230B00
ref: 23
SPACER,3RD DRIVEN GEAR
2433230B00
€ 28.50
24
0916725022
ref: 24
WASHER,LOCK
0916725022
€ 5.00
25
2434130B00
ref: 25
GEAR,FOURTH DRIVEN
2434130B00
€ 62.50
26
0938025003
ref: 26
RING,SNAP
0938025003
€ 3.00
27
2435132C01
ref: 27
GEAR,5TH DRIVEN(NT:30)
€ 103.50
28-1
2436132C01
ref: 28-1
MODEL M/N
GEAR,SIXTH DRIVEN
€ 69.50
28-2
2436134C01
ref: 28-2
MODEL P
GEAR,SIXTH DRIVEN
€ 117.00
29
0926222017
ref: 29
BEARING
€ 59.50
30
0926320040
ref: 30
BEARING(20X34X20)
0926320040
€ 42.50
31
0422107129
ref: 31
PIN
0422107129
€ 1.50
32
0928330044
ref: 32
SEAL,OIL(30X56X6)
0928330044
€ 13.00
33
0939056001
ref: 33
C RING
0939056001
€ 3.00
34
2751032C00
ref: 34
SPROCKET,ENGINE(NT:14)
2751032C00
€ 59.00
35
0918022043
ref: 35
SPACER(22X30X21.4)
0918022043
€ 15.00
36
0833131226
ref: 36
CIRCLIP
0833131226
€ 2.00
37
2760032C10114
ref: 37
CHAIN,DRIVE(525V9X114LE)
€ 160.00
