MUFFLER

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

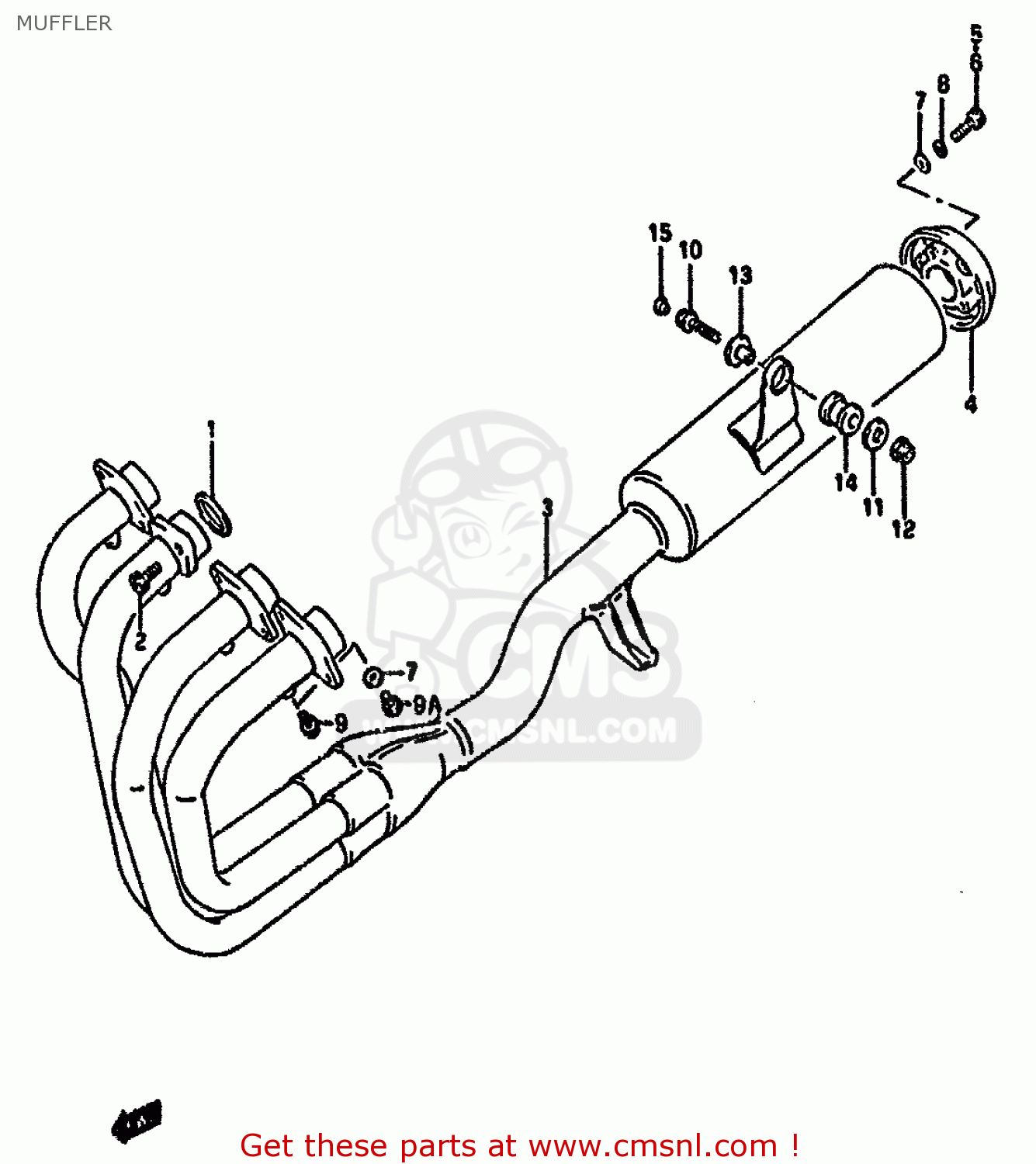

Muffler diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

MUFFLER GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
MUFFLER GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
MUFFLER GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
1418110D00
ref: 1-1
MODEL M/N
GASKET,EXHAUST PIPE (NAS)
€ 12.00
1-2
1418145D00
ref: 1-2
MODEL P
GASKET,EXHAUST PIPE (NAS)
1418145D00
€ 12.00
2-1
0910608032
ref: 2-1
BOLT 8X23
0910608032
€ 2.50
2-2
0910608081
ref: 2-2
E22
BOLT(8X30)
€ 3.00
3-1
1430110D10
ref: 3-1
MUFFLER ASSY
€ 889.50
3-2
1430110D00
ref: 3-2
E22
MUFFLER ASSY
€ 1,239.00
3-3
1430110D20H01
ref: 3-3
E30
MUFFLER ASSEMBLY
€ 766.50
4-1
1479110D00
ref: 4-1
MODEL M/N
COVER,MUFFLER
€ 64.50
4-2
1479110D01
ref: 4-2
MODEL P
COVER,MUFFLER TAIL
1479110D01
€ 64.50
5-1
0910606068
ref: 5-1
MODEL M
BOLT(6X10)
€ 2.50
5-2
0910606076
ref: 5-2
MODEL N/P
BOLT(6X10)
0910606076
€ 2.50
6-1
0910606070
ref: 6-1
MODEL M
BOLT
€ 4.00
6-2
0910606077
ref: 6-2
MODEL N/P
BOLT(6X35)
0910606077
€ 4.00
7-1
0916006055
ref: 7-1
WASHER(7X12X1)
0916006055
€ 2.00
7-2
0916006055
ref: 7-2
E22
WASHER(7X12X1)
0916006055
€ 2.00
8
0916406013
ref: 8
WASHER
0916406013
€ 2.50
9
0154706105
ref: 9
BOLT,HOSE JOINT
€ 3.00
9A
0910606076
ref: 9A
E22,-09106-06068
BOLT(6X10)
0910606076
€ 2.50
10
0712008557
ref: 10
BOLT
0712008557
€ 3.00
11
0916008002
ref: 11
WASHER (8.5X29X1.6)
0916008002
€ 2.00
12
0831931087
ref: 12
NUT
0831931087
€ 2.50
13
0918008152
ref: 13
SPACER(8.6X12X24.2)
0918008152
€ 6.00
14
0932012048
ref: 14
CUSHION
0932012048
€ 5.00
15
0925006008
ref: 15
CAP(OD:10)
0925006008
€ 3.00
