WATER PUMP

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

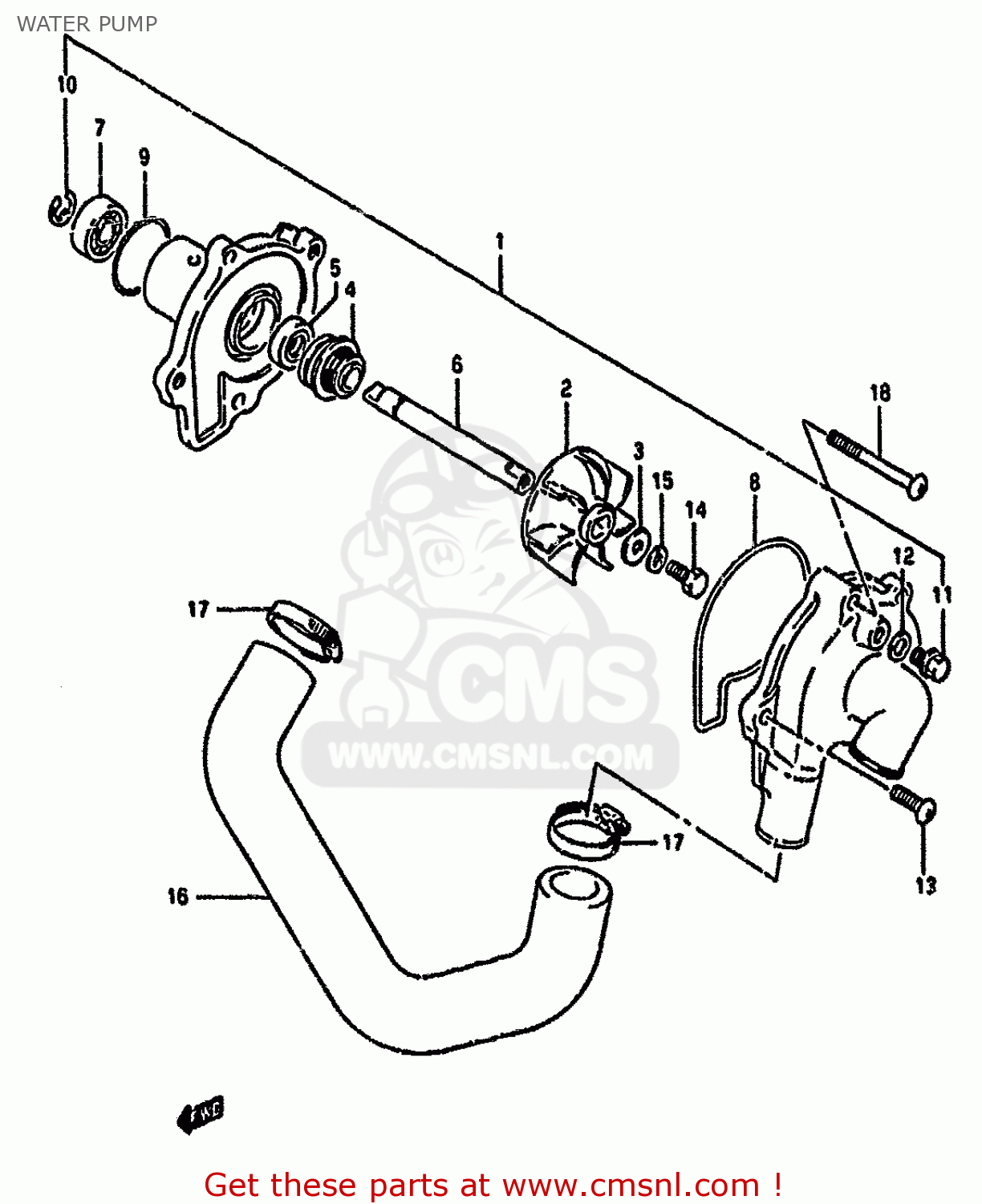

Water pump diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

1740010D00
ref: 1-1
MODEL M/N

PUMP ASSEMBLY,WATER

€ 313.00

1-2

1740010D01
ref: 1-2
MODEL P

PUMP ASSEMBLY,WATER

€ 313.00

1749116700
ref: 2

IMPELLER,WATER PUMP

€ 17.50

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

1747046A00
ref: 4

SEAL,MECHANICAL

€ 21.50

1746138A00
ref: 5

OILSEAL

€ 4.50

1751130B00
ref: 6

SHAFT,WATER PUMP

€ 47.00

1745138A00
ref: 7

BEARING,10X26X8

€ 13.00

1741838400
ref: 8

O RING

€ 3.50

1743533400
ref: 9

O RING,WATER PUMP HOLDER

€ 13.00

0833211086
ref: 10

E RING

€ 2.00

1741514300
ref: 11

BOLT,DRAIN

€ 2.00

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

0211206164
ref: 13

SCREW

€ 2.00

0910006099
ref: 14

BOLT(6X13)

€ 2.00

0916406006
ref: 15

WASHER

€ 2.50

1785810D00
ref: 16

HOSE,WATER PUMP OUTLET

€ 27.00

0940230502
ref: 17

CLAMP

€ 11.50

0211206455
ref: 18

SCREW

€ 1.50
