STARTER CLUTCH

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

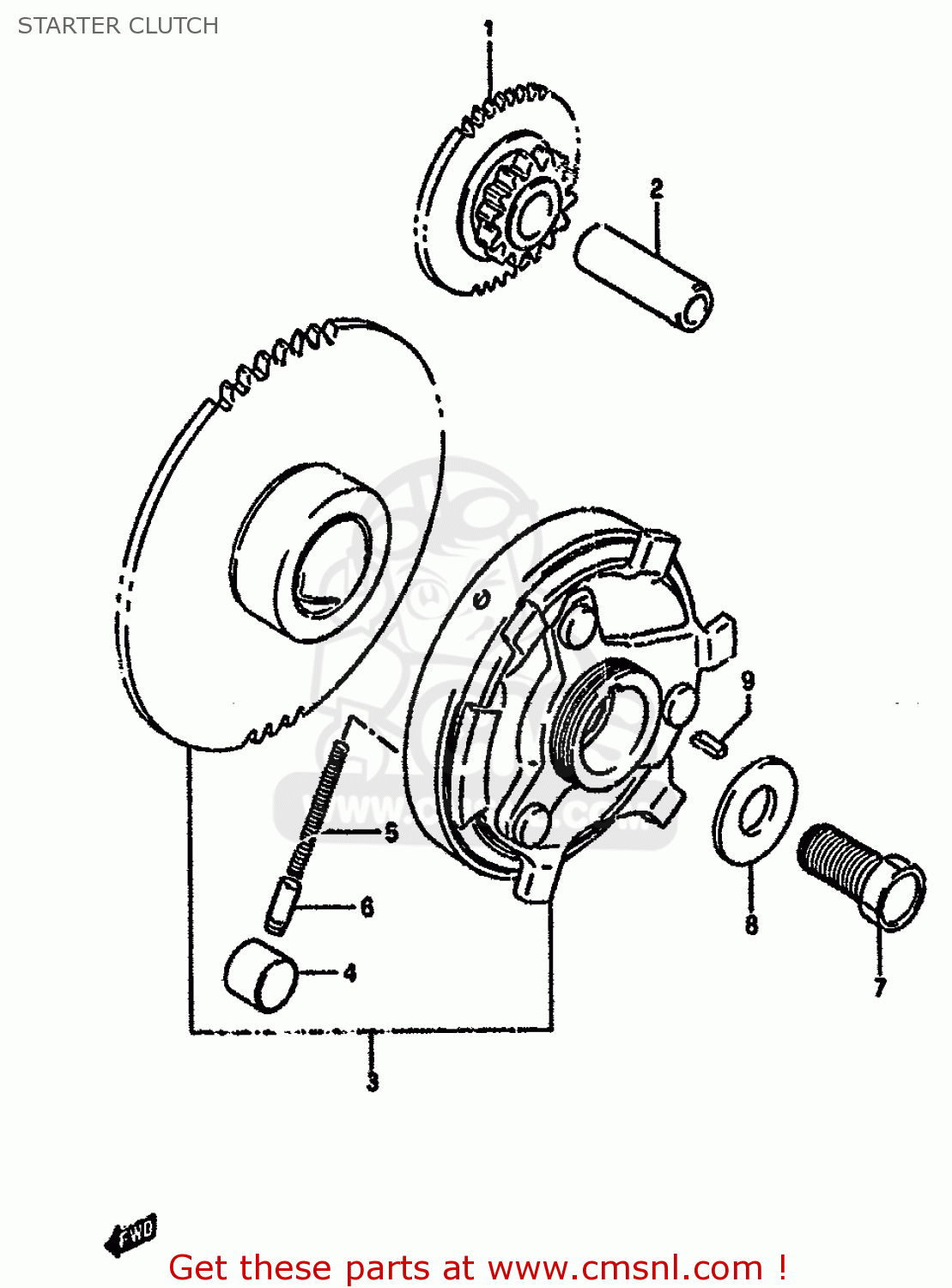

Starter clutch diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

STARTER CLUTCH GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

STARTER CLUTCH GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1261106C00
ref: 1

GEAR,STARTER IDLE

€ 79.50

2

0920613007
ref: 2

PIN(7.4X13X40)

€ 9.00

3-1

1260032811
ref: 3-1
MODEL M/N

CLUTCH SET,STARTER

€ 149.50

3-2

1260033850
ref: 3-2
MODEL P

CLUTCH SET,STARTER

€ 146.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0110712258
ref: 7

BOLT

€ 2.50

8

0916012036
ref: 8

WASHER(12X30X3)

€ 3.00

9

0942103006
ref: 9

KEY

€ 10.00
