FRONT BRAKE HOSE (E22)

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

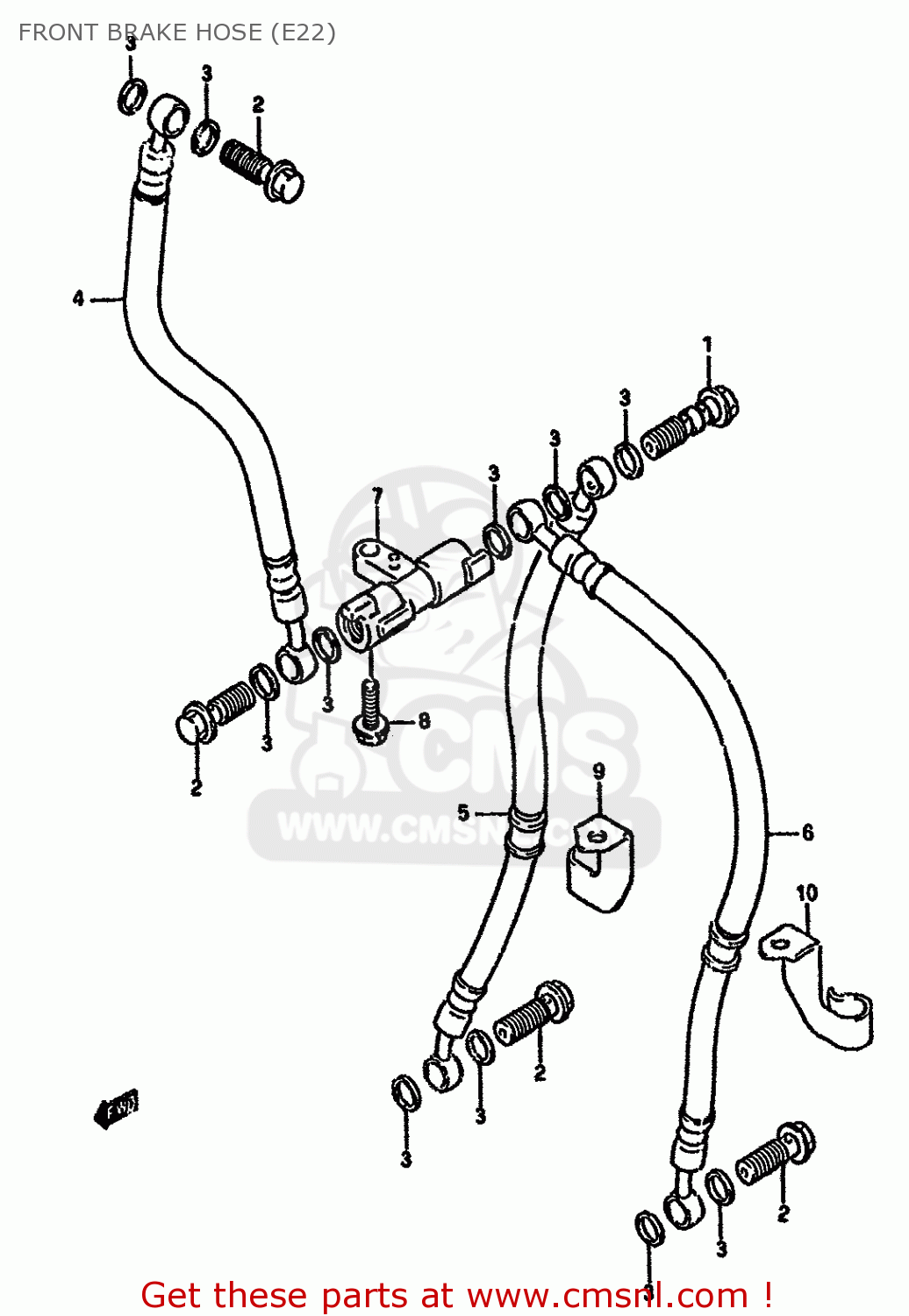

Front brake hose (e22) diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

FRONT BRAKE HOSE (E22) GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
FRONT BRAKE HOSE (E22) GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
FRONT BRAKE HOSE (E22) GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
0936010018
ref: 1
BOLT UNION
0936010018
€ 7.00
2
0936010017
ref: 2
BOLT UNION
0936010017
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
0916110009
€ 2.00
4
5948010D20
ref: 4
HOSE,FR BRAKE NO.1
5948010D20
€ 51.00
5
5924010D00
ref: 5
HOSE,FRONT BRAKE NO.2 RH
€ 64.00
6
5944010D00
ref: 6
HOSE,FRONT BRAKE NO.2 LH
€ 65.50
7
5949112C00
ref: 7
JOINT,BRAKE HOSE
5949112C00
€ 25.50
8
0151706167
ref: 8
BOLT 6X16
0151706167
€ 1.50
9
5926806C01
ref: 9
CLAMP,FR BRAKE HOSE,R
€ 8.50
10
5926906C01
ref: 10
CLAMP,FR BRAKE HOSE,L
€ 6.00
