CAM CHAIN

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

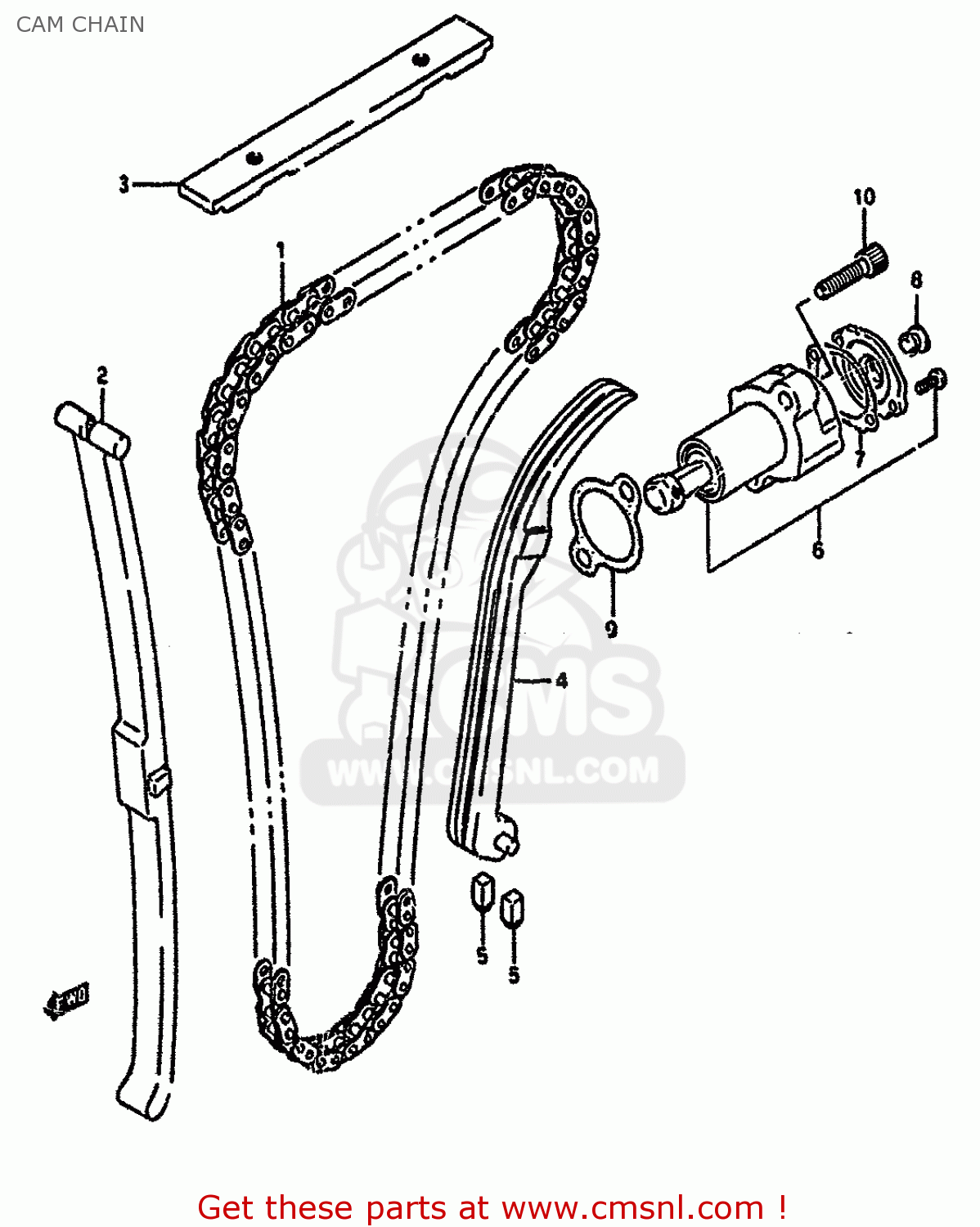

Cam chain diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1276032C01
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 286.50

1277132C00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 36.00

1278233400
ref: 3

GUIDE,CAM CHAIN NO.2

€ 26.50

1281032C01
ref: 4

TENSIONER,CAM CHAIN

€ 52.50

1281444101
ref: 5

CUSHION,CAM CHAIN TENSIONER

€ 8.50

1283015521
ref: 6

ADJUSTER ASSEMBLY,TENSIONER

€ 91.00

GASKET,ADJUSTER CAP (NAS)

€ 3.00

1283938200
ref: 8

PLUG,ADJUSTER

€ 2.00

9-1

1283724A00
ref: 9-1
MODEL M

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

9-2

1283724A10
ref: 9-2
MODEL N/P

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

0711006255
ref: 10

BOLT

€ 3.00

all assemblies
