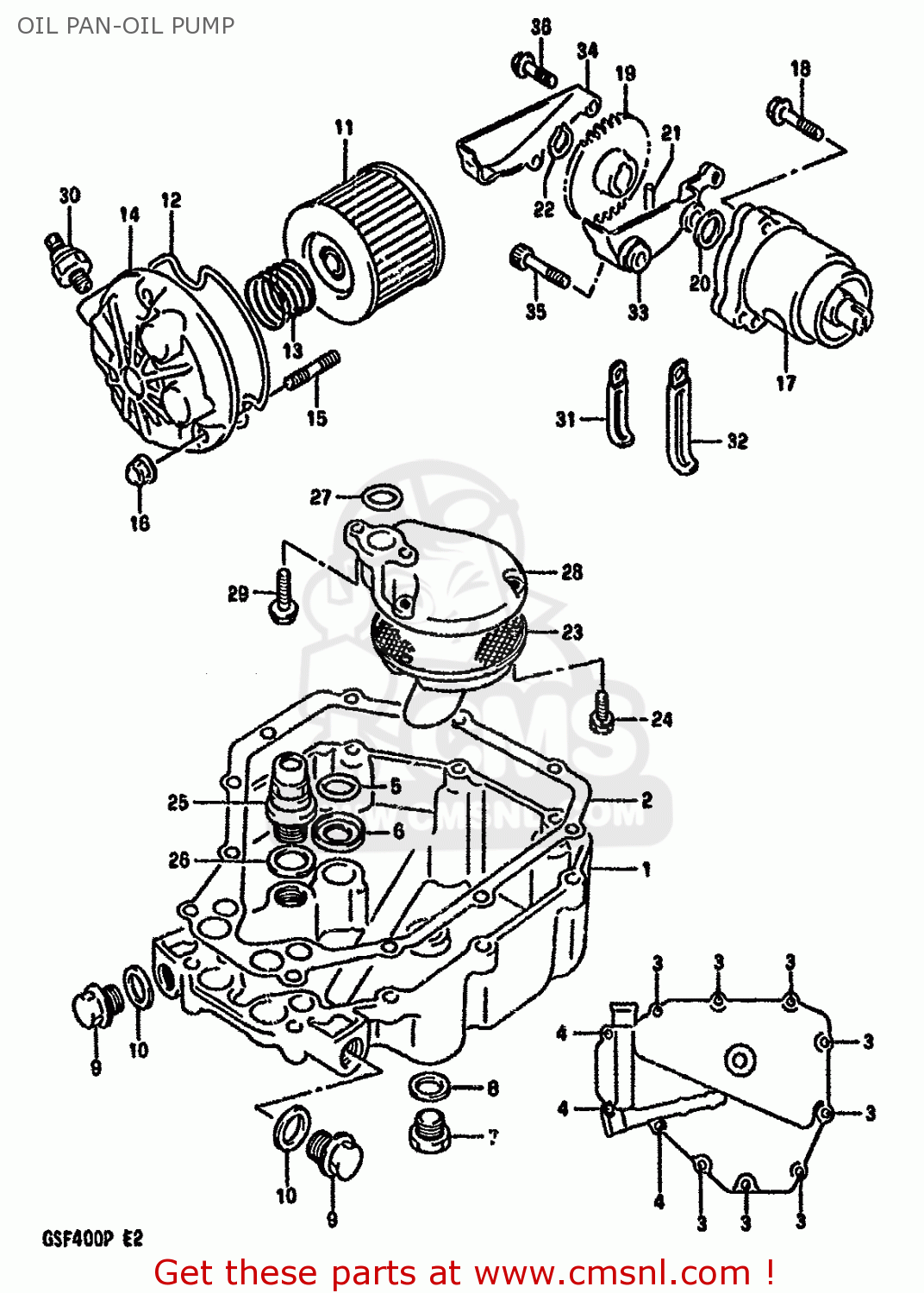

OIL PAN-OIL PUMP

ref

part #

description

quantity

1

1151110D00
ref: 1

PAN,OIL

€ 89.50

2-1

1148932C00
ref: 2-1
MODEL M

GASKET,OIL PAN (NAS)

€ 17.50

2-2

1148932C10
ref: 2-2
MODEL N/P

GASKET,OIL PAN(ASB) (NAS)

€ 17.50

3

0154706254
ref: 3

BOLT 6X25

€ 2.50

4

0154706304
ref: 4

BOLT 6X30

€ 2.50

5

0928016008
ref: 5

O RING(D:3.2,ID:15.8)

€ 1.50

6

1652930B00
ref: 6

GASKET,OIL OUTLET (NAS)

€ 5.00

7

0924714001
ref: 7

PLUG

€ 5.00

8

0916814004
ref: 8

GASKET(14X19.2X2) (NAS)

€ 2.50

9

0924714015
ref: 9

PLUG(14X12)

€ 2.50

10

0916814004
ref: 10

GASKET(14X19.2X2) (NAS)

€ 2.50

11

1651045040
ref: 11

FILTER ASSY,ENGINE OIL

€ 7.50

12

1651845000
ref: 12

O RING,OIL FILTER CHAMBER CAP

€ 7.50

13

0944032004
ref: 13

SPRING

€ 13.50

14

1651210D00
ref: 14

CAP,FILTER

€ 21.00

15

0142106208
ref: 15

STUD 6X20

€ 2.50

16

0831321064
ref: 16

NUT 6MM

€ 2.00

17

1640032C00
ref: 17

PUMP ASSY,ENGINE OIL

€ 152.00

18

0151706307
ref: 18

BOLT

€ 2.00

19

1633130B00
ref: 19

GEAR,OIL PUMP DRIVEN

€ 36.00

20

0822112205
ref: 20

SHIM

€ 1.50

21

0926105006
ref: 21

PIN(5X18)

€ 1.50

22

0833131126
ref: 22

CIRCLIP,12 MM

€ 2.00

23

1652010D00
ref: 23

STRAINER,ENGINE OIL

€ 19.50

24

0113706128
ref: 24

BOLT

€ 2.50

25

1644027A01
ref: 25

VALVE ASSY,OIL RELIEF

€ 42.00

26

0916816002
ref: 26

GASKET(16X22X2) (NAS)

€ 2.00

27

0928016008
ref: 27

O RING(D:3.2,ID:15.8)

€ 1.50

28

1652530B00
ref: 28

PROTECTOR,OIL STRAINER

€ 17.00

29

0151706207
ref: 29

BOLT 6X20

€ 2.50

30

3782033D00
ref: 30
-37820-33200

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

31

0940406422
ref: 31

CLAMP

€ 2.50

32

0940408402
ref: 32

CLAMP

€ 3.50

33

1132332C00
ref: 33

CASE,OIL SEPARATOR

€ 16.50

34

1132432C00
ref: 34

CAP,OIL SEPARATOR

€ 10.00

35

0711006357
ref: 35

BOLT

€ 3.50

36

0151705258
ref: 36

BOLT

€ 1.50
