CYLINDER

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

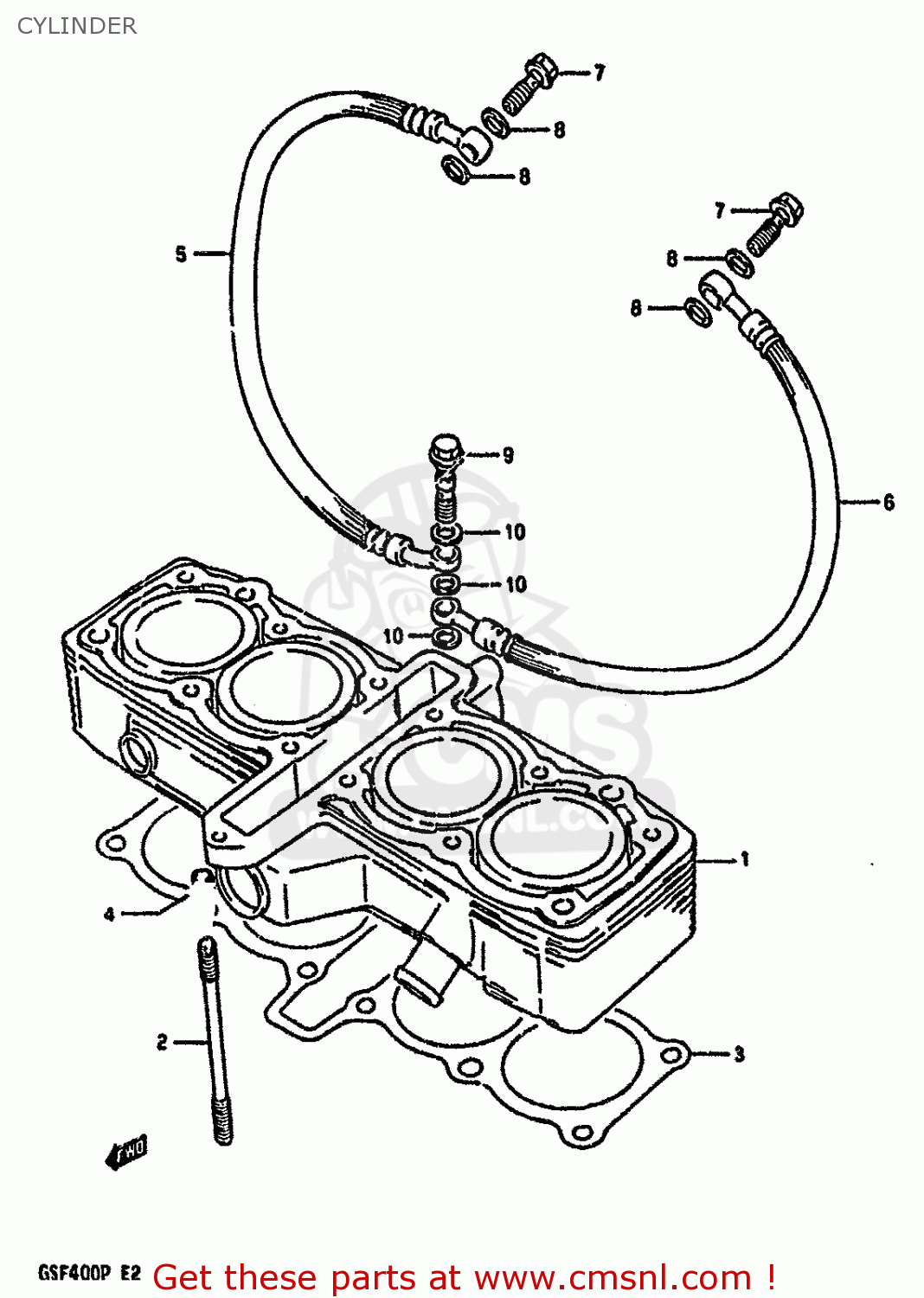

Cylinder diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

CYLINDER GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

CYLINDER GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1121010D00
ref: 1

CYLINDER

€ 705.50

2

0910808202
ref: 2

BOLT,STUD(8X120)

€ 10.00

3

1124132C00
ref: 3

GASKET,CYLINDER (NAS)

€ 16.00

4

0421111169
ref: 4

PIN

€ 2.00

5

1128110D00
ref: 5

HOSE,CRANKCASE OIL,RIGHT

€ 94.00

6

1128210D00
ref: 6

HOSE,CRANKCASE OIL,LEFT

€ 94.00

7

1128432C00
ref: 7

CLAMP,OIL HOSE CRANKCASE

€ 15.00

8

0916808026
ref: 8

GASKET (NAS)

€ 1.00

9

1128532C00
ref: 9

BOLT,OIL PIPE UNION,NO

€ 16.50

10

0916110009
ref: 10

WASHER(10X15X1.5)

€ 2.00
