HEADLAMP (MODEL P E4,E16,E21,E22,E25,E34,E53)

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

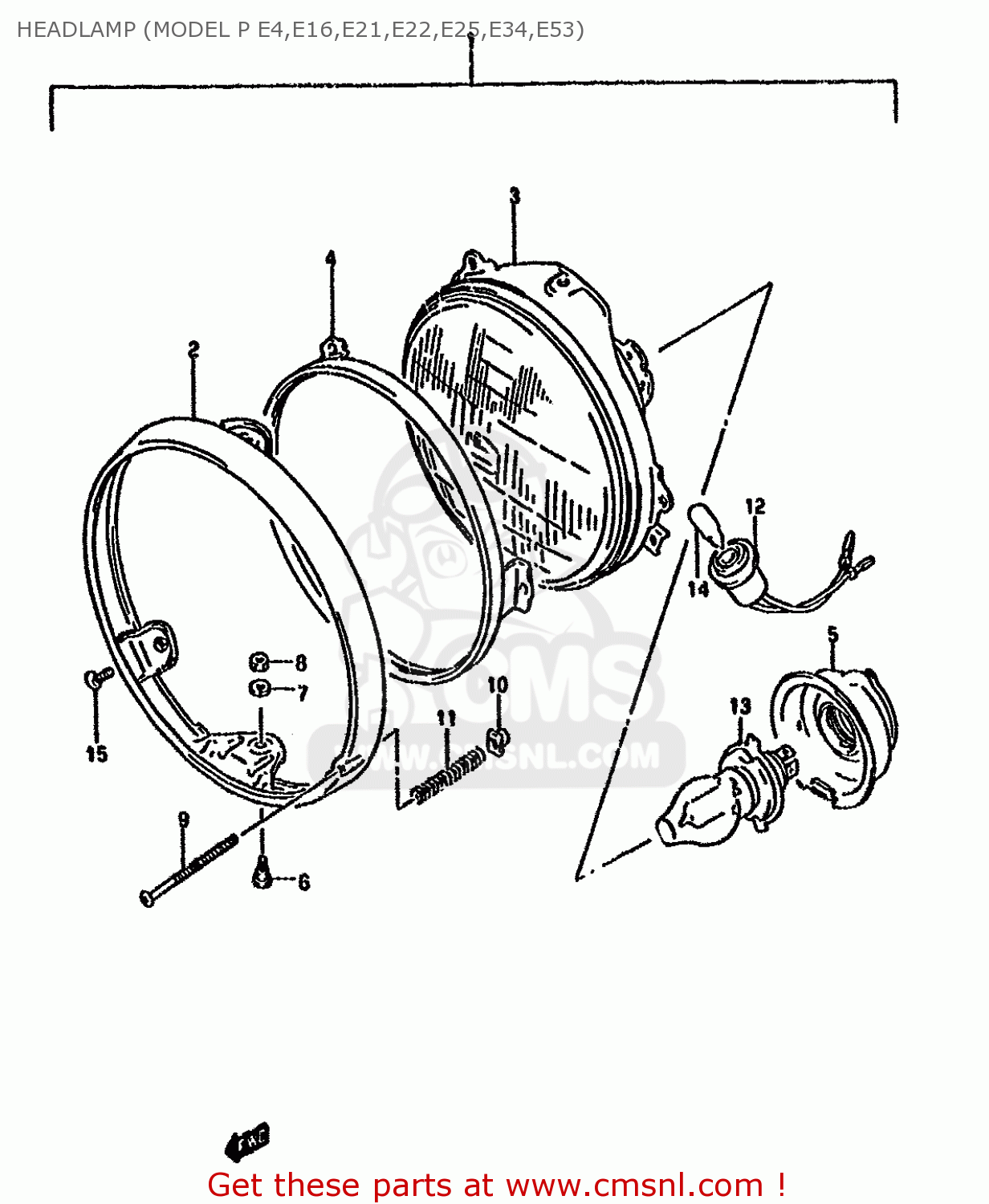

Headlamp (model p e4,e16,e21,e22,e25,e34,e53) diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3510010D40999
ref: 1-1
E4

HEADLAMP ASSY

€ 179.00

1-2

3510010D50999
ref: 1-2
E16,E21,E22,E25,E34,

HEADLAMP ASSY

€ 179.00

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3512110D40
ref: 3

LAMP UNIT

€ 147.00

3512745030
ref: 4

RETAINING RING

€ 19.50

3517320A01
ref: 5

COVER,SOCKET

€ 14.50

3518115611
ref: 6

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832121057
ref: 7

LOCK WASHER

€ 2.00

0831011057
ref: 8

NUT 5MM

€ 2.50

3515145030
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

3515215611
ref: 10

NUT

€ 3.50

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

3611801D20
ref: 12

SOCKET

€ 11.50

13-1

0947112061
ref: 13-1
E4,EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

13-2

0947112060
ref: 13-2
E16,E21,E22,E25,E34,

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 14

BULB(12V4W)

€ 6.00

0213205127
ref: 15

SCREW 5X12

€ 2.50

3595043431
ref: 16
E30

REFLEX REFLECTOR,FR SIDE

€ 12.00

3595610D00
ref: 17
E30

BRACKET,FRONT SIDE REFLECTOR

€ 7.50

0831626055
ref: 18
E30

NUT

€ 2.00

20-2

0947112060
ref: 20-2
E16,E21,E22,E25,E34,

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 21

BULB(12V4W)

€ 6.00

0213205127
ref: 22

SCREW 5X12

€ 2.50
