STAND

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

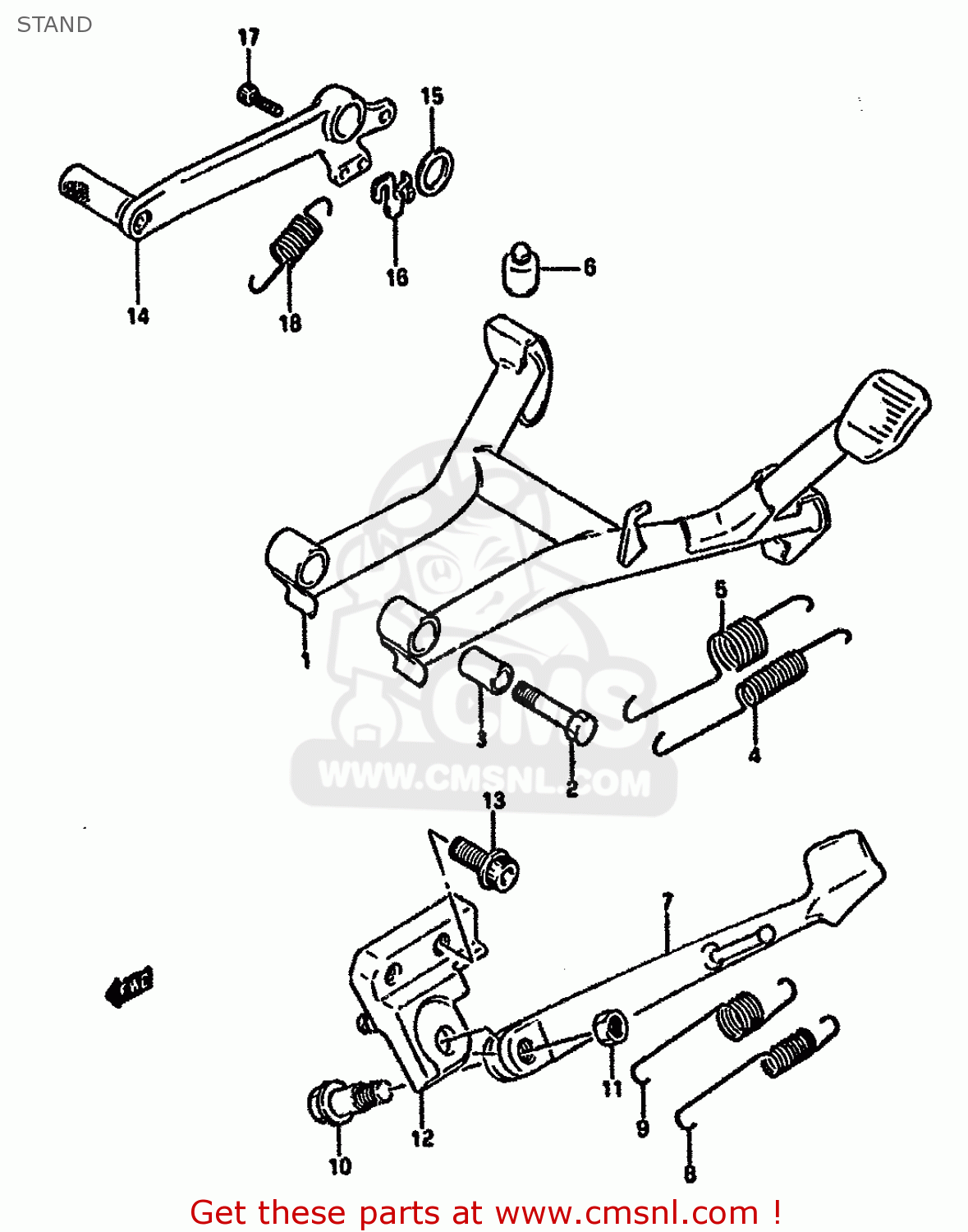

Stand diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

STAND GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
STAND GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
STAND GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
4210011D00
ref: 1
STAND,CENTER
€ 132.00
2
0910010257
ref: 2
BOLT(10X43)
0910010257
€ 4.00
3
0918010113
ref: 3
SPACER(10X16X25.5)
0918010113
€ 13.50
4
0944314059
ref: 4
SPRING
0944314059
€ 9.50
5
0944322013
ref: 5
SPRING OUTER
0944322013
€ 7.00
6
0932110017
ref: 6
CUSHION
0932110017
€ 5.50
7-1
4231010D00019
ref: 7-1
MODEL M/N
STAND,SIDE
€ 83.50
7-2
4231010D10019
ref: 7-2
MODEL P
STAND,SIDE
€ 83.50
8
0944315046
ref: 8
SPRING
0944315046
€ 7.50
9
0944322017
ref: 9
SPRING
0944322017
€ 7.00
10
0911110046
ref: 10
BOLT(10X30)
0911110046
€ 2.50
11
0831022105
ref: 11
NUT
0831022105
€ 2.00
12-1
4233010D00019
ref: 12-1
MODEL M/N
BRACKET,SIDE STAND
€ 49.00
12-2
4233010D10019
ref: 12-2
MODEL P
BRACKET,SIDE STAND
€ 49.00
13
0712010255
ref: 13
BOLT
€ 2.50
14
4311010D00
ref: 14
PEDAL,BRAKE
4311010D00
€ 101.50
15
0916118003
ref: 15
WASHER(18.2X27X1)
€ 3.00
16
4356032C00
ref: 16
BRACKET,STOP LAMP SWITCH SPR
4356032C00
€ 3.00
17
0711005167
ref: 17
BOLT
€ 2.50
18
0944313017
ref: 18
SPRING
0944313017
€ 3.50
