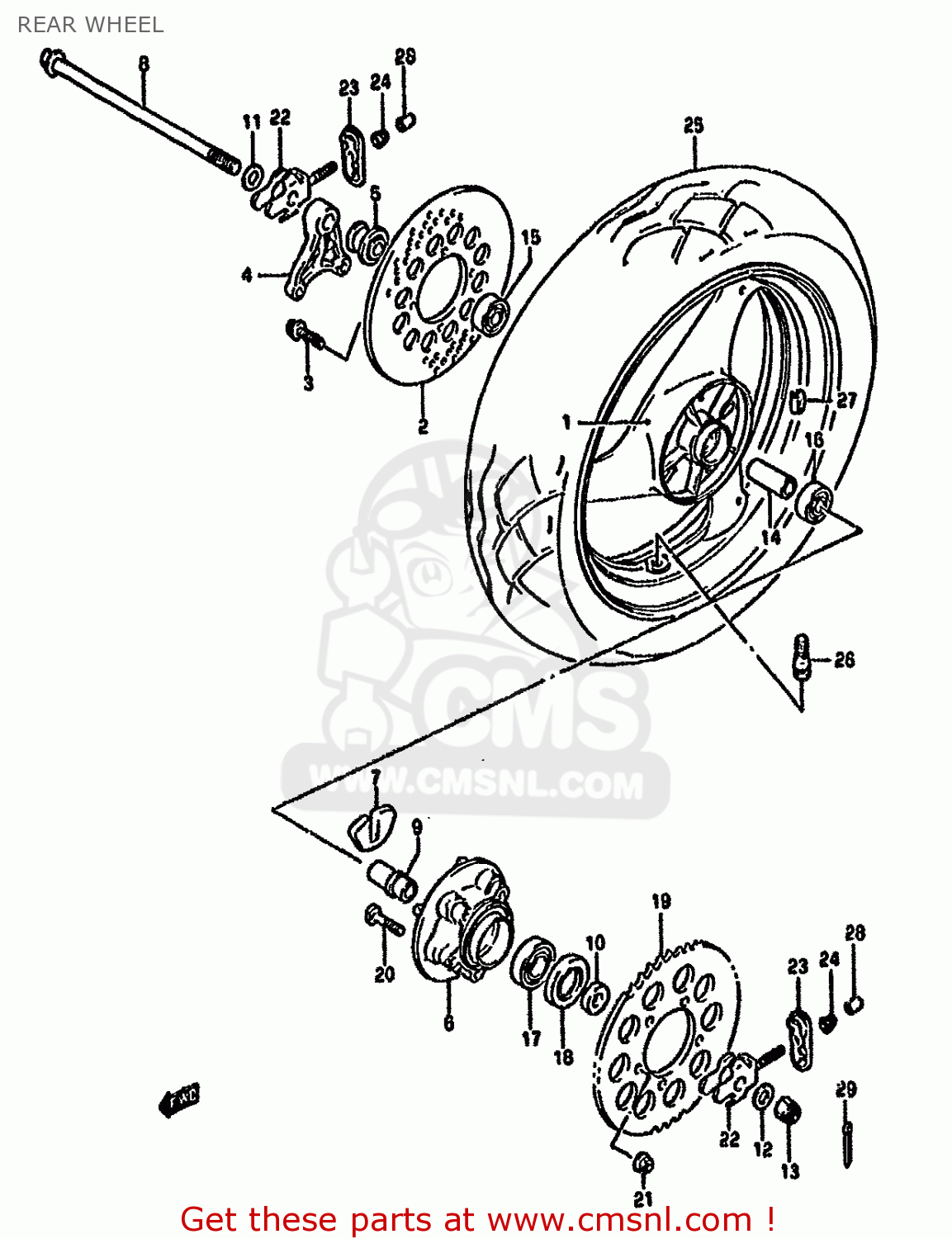

REAR WHEEL

ref

part #

description

quantity

1-1

6411110D0035B
ref: 1-1
MODEL M/N,FOR 02X

WHEEL,REAR (MT4.00X17)

€ 635.50

1-2

6411110D000FP
ref: 1-2
FOR 31X,0ZX,1HU MODE

WHEEL,REAR (MT4.00X17)(S

€ 492.50

1-3

6411110D0014L
ref: 1-3
FOR 21X

WHEEL,REAR

€ 635.50

2

6921101D00
ref: 2

DISC,RR BRAKE

€ 232.50

3

0712008305
ref: 3

BOLT

€ 3.50

4

6972143400
ref: 4

BRACKET,RR,CALIPER

€ 51.50

5

6474019C00
ref: 5

SPACER,RR AXLE,R

€ 19.00

6

6461117C01
ref: 6

DRUM,RR SPROCKET MOUNTING

€ 159.00

7

6465132C00
ref: 7

ABSORBER,RR HUB SHOCK

€ 11.50

8-1

6471144B00
ref: 8-1

AXLE,RR

€ 55.00

8-2

6471101D00
ref: 8-2
E30

AXLE,REAR

€ 43.50

9

6473310D00
ref: 9

RETAINER,RR SPROCKET DRUM

€ 20.00

10

6475134C00
ref: 10

SPACER,RR AXLE,L

€ 28.00

11

0916017049
ref: 11

WASHER

€ 2.00

12

0916017048
ref: 12

WASHER(17X34X3)

€ 4.50

13-1

0831921168
ref: 13-1

NUT 16MM

€ 5.00

13-2

0831441168
ref: 13-2
E30

NUT

€ 4.50

14

0918017071
ref: 14

SPACER(17.5X25X78)

€ 20.00

15

0812363037
ref: 15

BEARING

€ 16.00

16

0814363037
ref: 16

BEARING

€ 23.00

17

0926225073
ref: 17

BEARING(25X62X17)

€ 21.50

18

0928535001
ref: 18

SEAL,OIL(35X62X8)

€ 9.00

19-1

6451110D00
ref: 19-1
MODEL M/N-64511-10D0

SPROCKET,REAR

€ 62.50

19-2

6451133C20
ref: 19-2
MODEL P

SPROCKET,REAR

€ 66.00

20

0911910037
ref: 20

BOLT

€ 6.00

21

0831931107
ref: 21

NUT

€ 3.00

22

6141010D00
ref: 22

ADJUSTER,CHAIN

€ 18.00

23

6142010D00
ref: 23

PLATE,CHAIN ADJUSTER

€ 8.50

24

0831931087
ref: 24

NUT

€ 2.50

25

6511010D10
ref: 25

TIRE,RR(150/70-17 69H)

€ 323.50

26

4313024A00
ref: 26

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

27-1

5541100A00
ref: 27-1

BALANCER,WHEEL (10G)

€ 6.50

27-2

5541200A00
ref: 27-2

BALANCER,WHEEL

€ 7.00

27-3

5541300A00
ref: 27-3

BALANCER,WHEEL

€ 4.00

28

6144233300
ref: 28
E22

CAP,CHAIN ADJUSTER

€ 6.00

29

0411140308
ref: 29
E30

PIN,COTTER

€ 1.50
