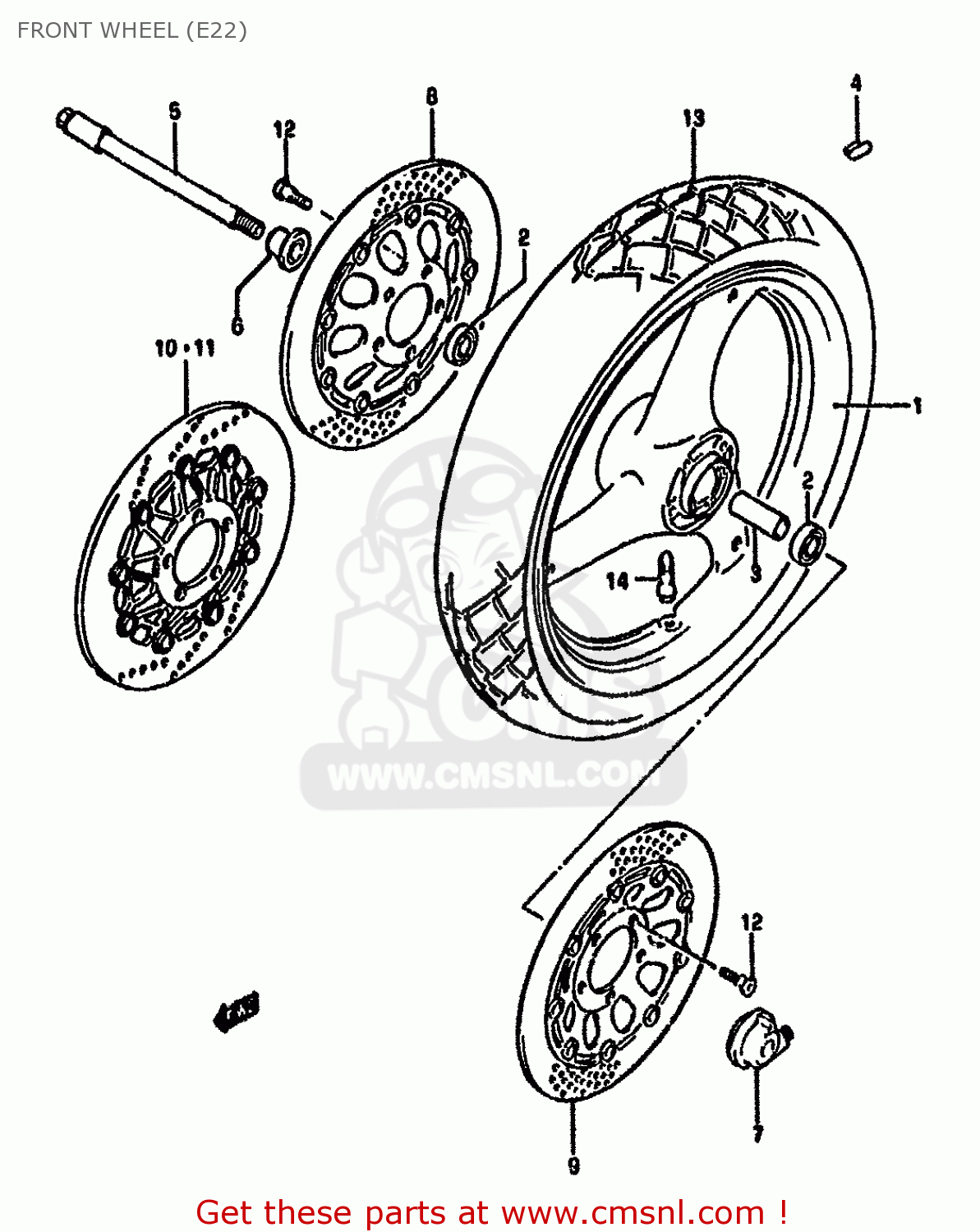

FRONT WHEEL (E22)

ref

part #

description

quantity

1-1

5411132C0035B
ref: 1-1
MODEL M/N,FOR 02X

WHEEL,FRONT (MT3.00X17) (GOLD)

€ 543.00

1-2

5411132C0014L
ref: 1-2
FOR 21X

WHEEL,FRONT (MT3.00X17) (WHITE)

€ 584.50

1-3

5411132C000FP
ref: 1-3
FOR 31X,0ZX,1HX MODE

WHEEL,FRONT (MT3.00X17) SILVER

€ 544.00

2

0814362037
ref: 2

BEARING

€ 18.50

3

0918017094
ref: 3

SPACER(17.5X22.5X73)

€ 14.00

4-1

5541100A00
ref: 4-1

BALANCER,WHEEL (10G)

€ 6.50

4-2

5541200A00
ref: 4-2

BALANCER,WHEEL

€ 7.00

4-3

5541300A00
ref: 4-3

BALANCER,WHEEL

€ 4.00

5

5471132C00
ref: 5

AXLE,FR

€ 76.50

6

5474032C00
ref: 6

SPACER,FR AXLE,R

€ 12.00

7

5460032C02
ref: 7

BOX ASSY,SPEEDOMETER GEAR

€ 113.00

8

5921032C40
ref: 8
MODEL M/N

DISC,FR BRAKE,R

€ 424.50

9

5922032C40
ref: 9
MODEL M/N

DISC,FRONT BRAKE LH

€ 424.50

10

5921046D10
ref: 10
MODEL P

DISC,FR BRAKE,R

€ 267.50

11

5922046D10
ref: 11
MODEL P

DISC,FR BRAKE,L

€ 386.50

12

0910608082
ref: 12

BOLT 8X33

€ 6.00

13

5511010D10
ref: 13

TIRE,FR(110/70-17 54H)

€ 234.00

14

4313024A00
ref: 14

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

all assemblies
