HEADLAMP (MODEL M/N)

GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

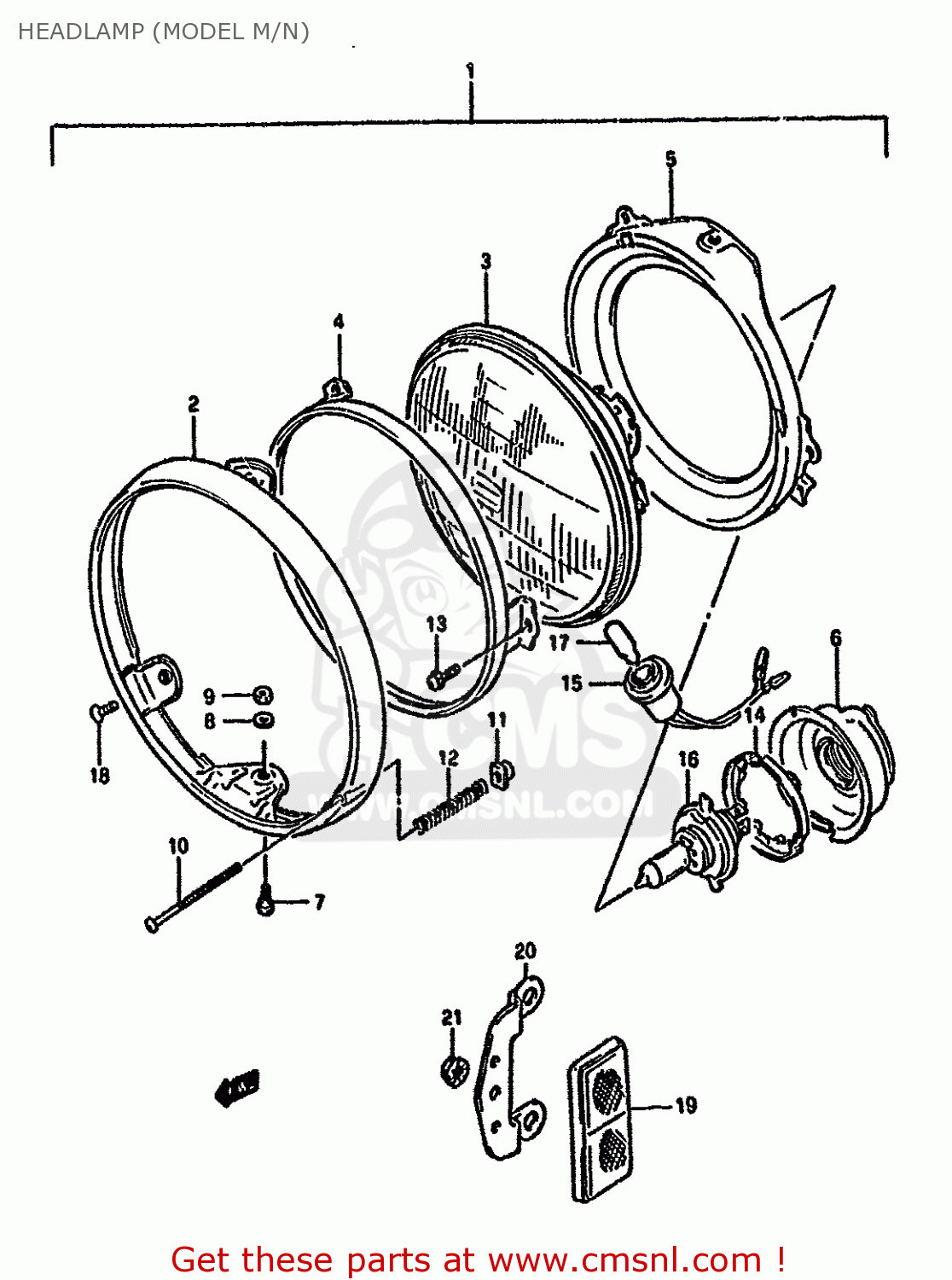

Headlamp (model m/n) diagram GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)

HEADLAMP (MODEL M/N) GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
HEADLAMP (MODEL M/N) GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
HEADLAMP (MODEL M/N) GSF400 1991 (M) (E02 E04 E16 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3510001D20
ref: 1-1
HEADLAMP ASSY
€ 234.00
1-2
3510001D30
ref: 1-2
E30
HEADLAMP ASSY
€ 244.50
2
3511101D20
ref: 2
RIM,HEADLAMP
3511101D20
€ 55.50
3-1
3512134300
ref: 3-1
LAMP UNIT
3512134300
€ 115.00
3-2
3512134430
ref: 3-2
E30
LAMP UNIT
3512134430
€ 100.00
4
3512745030
ref: 4
RETAINING RING
3512745030
€ 19.50
5
3513045030
ref: 5
RING
3513045030
€ 29.50
6
3517345000
ref: 6
COVER,HEADLAMP SOCKET
3517345000
€ 14.50
7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
8
0832121057
ref: 8
LOCK WASHER
0832121057
€ 2.00
9
0831011056
ref: 9
NUT
€ 2.50
10
3515145030
ref: 10
SCREW,HEADLAMP ADJUST
3515145030
€ 4.00
11
3515215611
ref: 11
NUT
3515215611
€ 3.50
12
3515431900
ref: 12
SPRING,ADJUSTING
3515431900
€ 3.50
13
0211204106
ref: 13
SCREWM4X0.7X10
€ 1.00
14
3513634400
ref: 14
SETTING,BULB
3513634400
€ 4.50
15
3611801D20
ref: 15
SOCKET
3611801D20
€ 11.50
16
0947112060
ref: 16
BULB(12V60/55W,H4)
0947112060
€ 8.00
17
0947112063
ref: 17
BULB(12V4W)
0947112063
€ 6.00
18
0213205127
ref: 18
SCREW 5X12
0213205127
€ 2.50
19
3595043431
ref: 19
E30
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
20
3595610D00
ref: 20
E30
BRACKET,FRONT SIDE REFLECTOR
€ 7.50
21
0831626055
ref: 21
E30
NUT
0831626055
€ 2.00
