AIR CLEANER

GSX1100E 1980 (T) GENERAL EXPORT (E01)

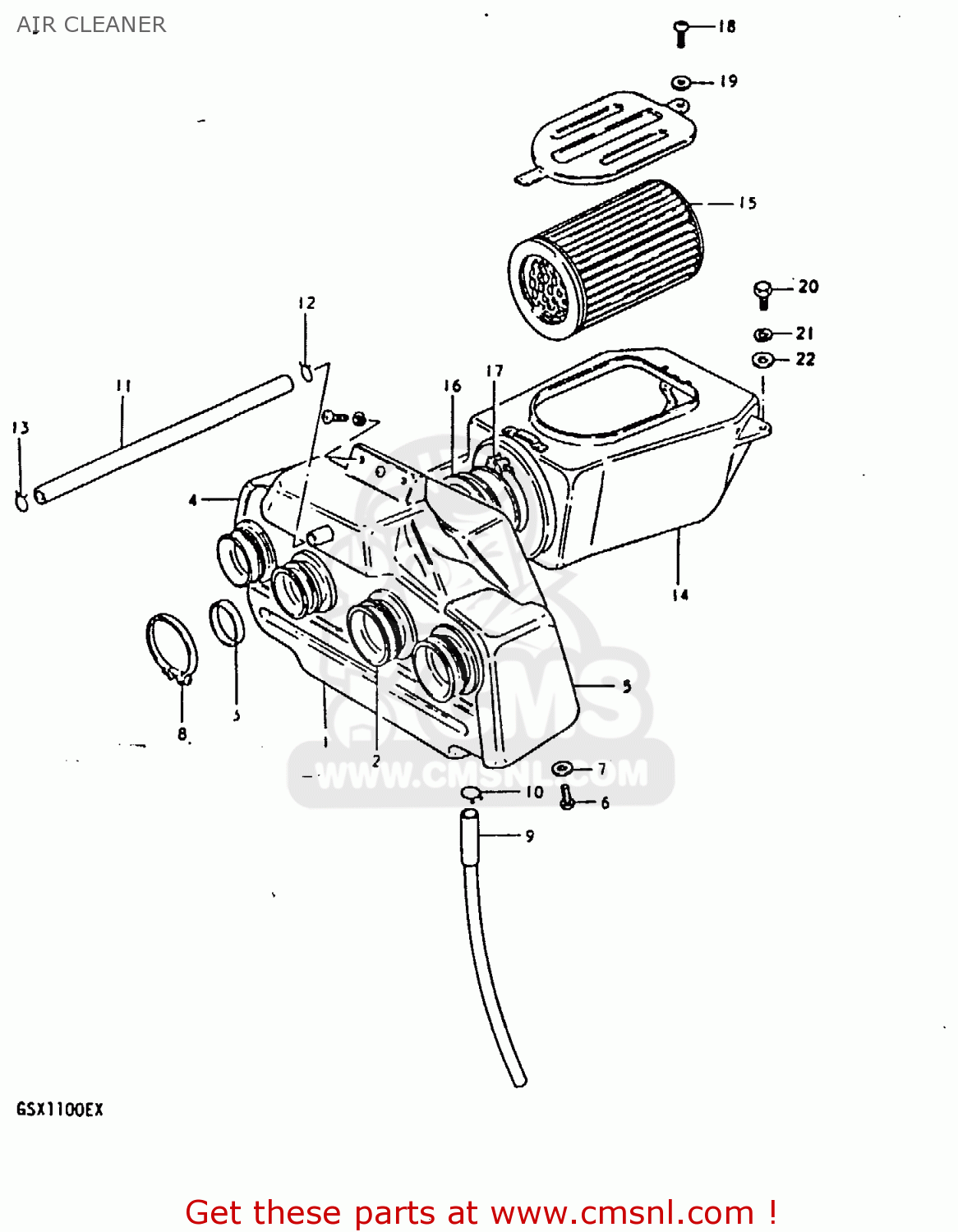

Air cleaner diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

AIR CLEANER GSX1100E 1980 (T) GENERAL EXPORT (E01)

AIR CLEANER GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1371049200
ref: 1

CASE COMP,AIR CLEANER

€ 0.00

2

1388149200
ref: 2

TUBE,AIR CLEANER OUTLET

€ 25.50

3

1388549200
ref: 3

RING,CARBURETOR AIR IN

€ 8.00

4

1383149200
ref: 4

COVER,AIR CLEANER,RIGHT

€ 26.50

5

1383249200
ref: 5

COVER,AIR CLEANER,LEFT

€ 20.50

6

0211205108
ref: 6

SCREW

€ 2.00

7

0832221058
ref: 7

WASHER

€ 2.50

8

0940262306
ref: 8

CLAMP

€ 6.00

9

1387000020
ref: 9

DRAIN TUBE

€ 13.50

10

0940114301
ref: 10

CLIP

€ 2.00

11

0934311001
ref: 11

HOSE

€ 30.00

12

1385949200
ref: 12

CLIP,BREATHER HOSE

€ 1.50

13

0940114301
ref: 13

CLIP

€ 2.00

14

1370049810
ref: 14

CLEANER ASSEMBLY,AIR

€ 172.00

15

1378049200
ref: 15

FILTER,AIR CLEANER

€ 41.00

16

1380149200
ref: 16

JOINT,HOSE AIR CLEANER

€ 34.50

17

0940270306
ref: 17

CLAMP

€ 5.00

18

0211205128
ref: 18

SCREW

€ 2.50

19

0832221058
ref: 19

WASHER

€ 2.50

20

0110706208
ref: 20

BOLT

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0832221068
ref: 22

WASHER

€ 2.00
