FUEL TANK (GSX1100X/EX : 24L)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

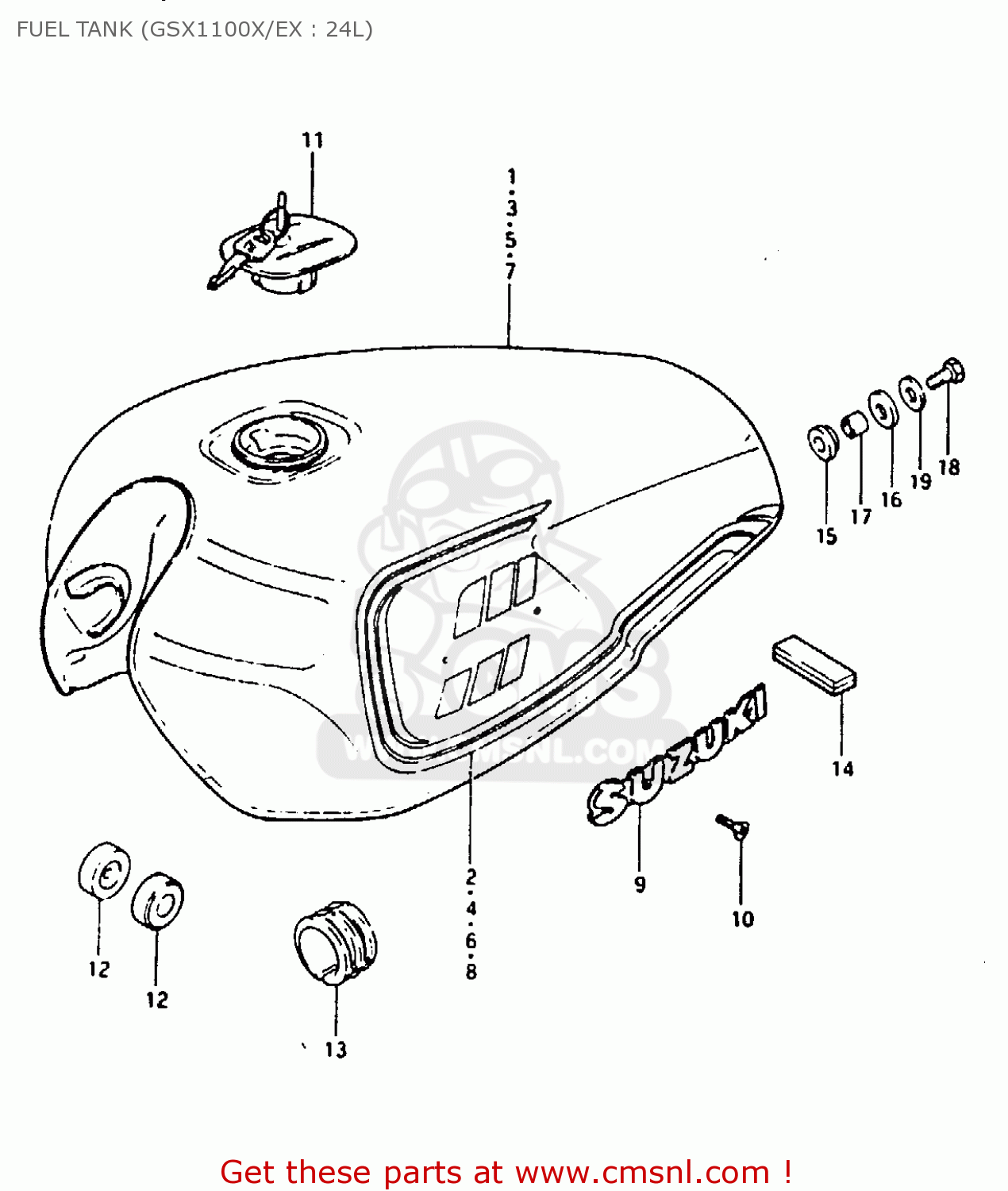

Fuel tank (gsx1100x/ex : 24l) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

FUEL TANK (GSX1100X/EX : 24L) GSX1100E 1980 (T) GENERAL EXPORT (E01)

FUEL TANK (GSX1100X/EX : 24L) GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

441004924008E
ref: 1

TANK, FUEL (BLACK)

€ 655.50

2

681104924076Z
ref: 2

TAPE SET

€ 91.50

3

4410049240737
ref: 3

TANK, FUEL (SILVER)

€ 655.50

4

681104924076Z
ref: 4

TAPE SET

€ 91.50

5

441004924007P
ref: 5

TANK, FUEL (RED)

€ 655.50

6

681104924077A
ref: 6

TAPE SET

€ 0.00

7

441004924005H
ref: 7

TANK, FUEL (BLUE)

€ 655.50

8

681104924076Z
ref: 8

TAPE SET

€ 91.50

9

6811145010
ref: 9

EMBLEM,FUEL TANK

€ 26.00

10

0213203065
ref: 10

SCREW 3X6

€ 2.00

11

4420049702
ref: 11

CAP SET,FUEL TANK

€ 121.00

12

0932910007
ref: 12

CUSHION

€ 3.00

13

4454249200
ref: 13

CUSHION,FUEL TANK,UPPER

€ 5.50

14

0932901005
ref: 14

CUSHION

€ 11.50

15

0932012010
ref: 15

CUSHION

€ 3.00

16

0932012023
ref: 16

CUSHION

€ 2.50

17

0918008067
ref: 17

SPACER(8.5X12X19)

€ 2.50

18

0110708308
ref: 18

BOLT (8X30)

€ 2.50

19

0916008002
ref: 19

WASHER (8.5X29X1.6)

€ 2.00
