REAR WHEEL (GSX1100ET, GSX1100EX)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

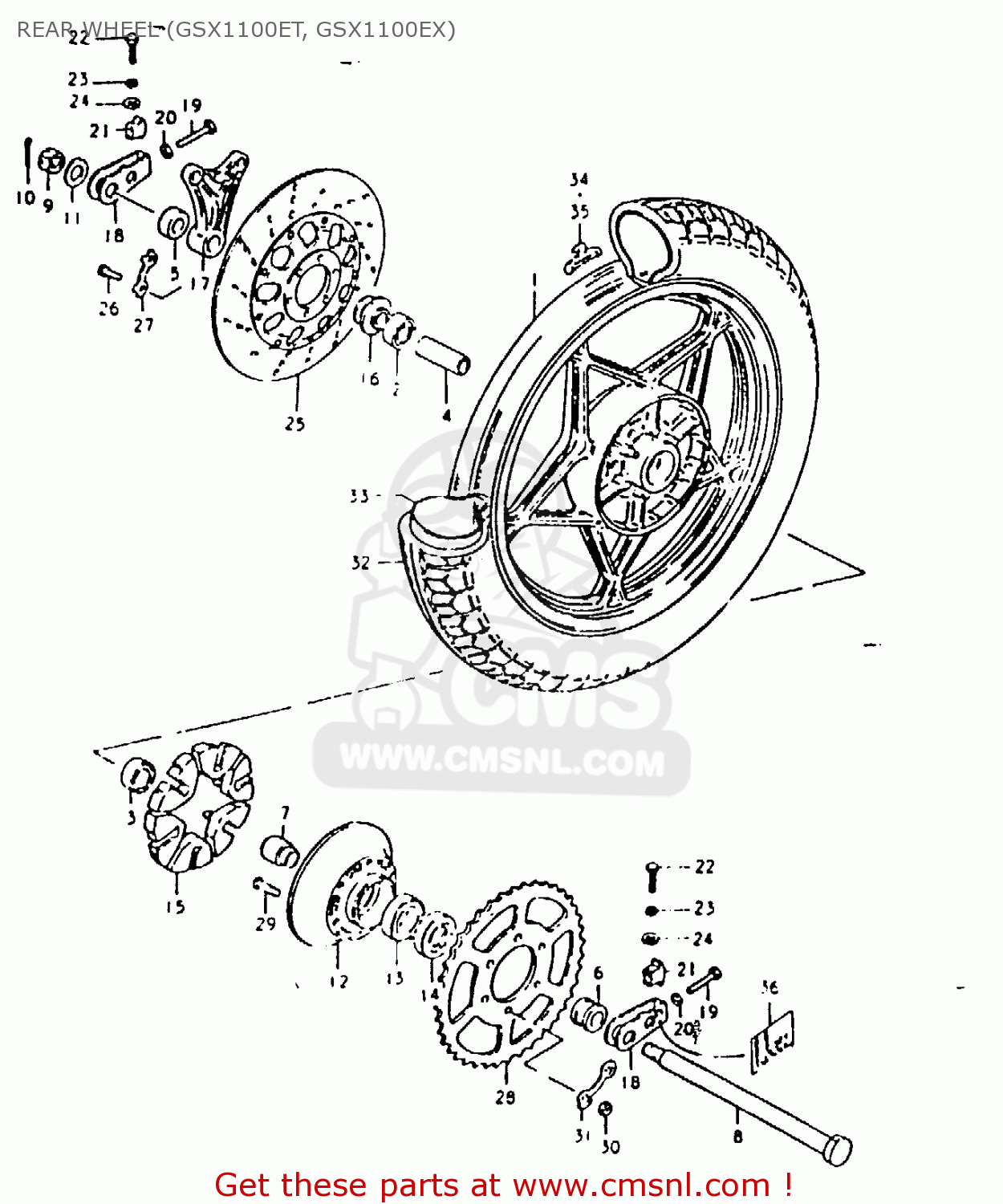

Rear wheel (gsx1100et, gsx1100ex) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

REAR WHEEL (GSX1100ET, GSX1100EX) GSX1100E 1980 (T) GENERAL EXPORT (E01)
REAR WHEEL (GSX1100ET, GSX1100EX) GSX1100E 1980 (T) GENERAL EXPORT (E01)
REAR WHEEL (GSX1100ET, GSX1100EX) GSX1100E 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
6411149021
ref: 1
WHEEL,REAR
€ 627.00
2
0813362047
ref: 2
BEARING WHEEL REAR(20X47X14)
0813362047
€ 22.50
3
0815362047
ref: 3
BEARING, LH
0815362047
€ 21.00
4
0918020062
ref: 4
SPACER(20.5X28X88)
0918020062
€ 11.50
5
0918020060
ref: 5
SPACER(20X38X12)
0918020060
€ 6.50
6
0918020054
ref: 6
SPACER(20X33X28.3)
0918020054
€ 13.00
7
6473331000
ref: 7
SPACER,REAR HUB BEARING
6473331000
€ 20.00
8
6471149000
ref: 8
AXLE,REAR
€ 59.00
9-1
0831431188
ref: 9-1
NUT 18MM
0831431188
€ 5.00
9-2
NOTUSED
ref: 9-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0411140308
ref: 10
PIN,COTTER
0411140308
€ 1.50
11
0916019008
ref: 11
WASHER(19X34X4)
0916019008
€ 3.00
12
6461131001
ref: 12
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363050
ref: 13
BEARING
0811363050
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
0928533001
€ 20.00
15
6465131000
ref: 15
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
16
6474045001
ref: 16
SPACER,REAR AXLE
€ 15.00
17
6972147011
ref: 17
BRACKET,RR,CALIPER
6972147011
€ 29.00
18
6141031001
ref: 18
FROM 61410-31000
ADJUSTER,CHAIN
6141031001
€ 50.00
19
0910408006
ref: 19
BOLT
0910408006
€ 3.00
20
0831012088
ref: 20
NUT
0831012088
€ 2.00
21
6143331000
ref: 21
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
22
0110708608
ref: 22
BOLT
€ 2.50
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
0832211088
ref: 24
WASHER
0832211088
€ 2.00
25
5921018450
ref: 25
DISC,RR BRAKE
5921018450
€ 446.00
26
0910008094
ref: 26
BOLT(8X30)
0910008094
€ 2.50
27
0916908016
ref: 27
WASHER
0916908016
€ 3.50
28
6451149001
ref: 28
SPROCKET,REAR
6451149001
€ 114.00
29
0911910002
ref: 29
BOLT
0911910002
€ 3.50
30
0831012108
ref: 30
NUT
0831012108
€ 2.50
31
0916910007
ref: 31
WASHER
0916910007
€ 7.50
32
6510049230
ref: 32
BS
TIRE 4.50V17
€ 258.00
33
6520049010
ref: 33
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
34
5541145100
ref: 34
BALANCER,WHEEL
5541145100
€ 7.00
35
5541245100
ref: 35
BALANCER,WHEEL
5541245100
€ 4.00
36
6837749000
ref: 36
LABEL,CHAIN WEAR INDICATOR
6837749000
€ 3.50
