CRANKCASE COVER

GSX1100E 1980 (T) GENERAL EXPORT (E01)

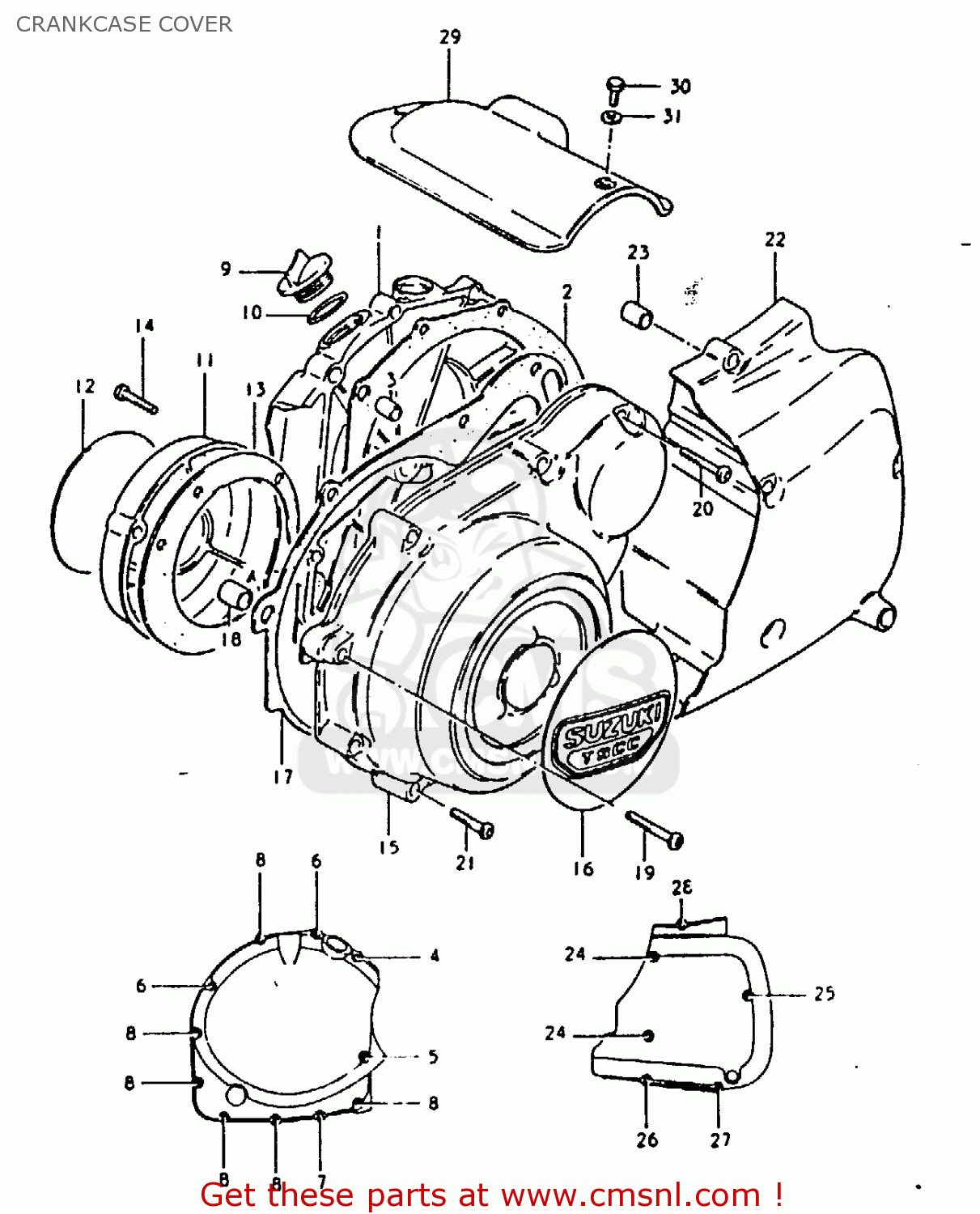

Crankcase cover diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

CRANKCASE COVER GSX1100E 1980 (T) GENERAL EXPORT (E01)
CRANKCASE COVER GSX1100E 1980 (T) GENERAL EXPORT (E01)
CRANKCASE COVER GSX1100E 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1134049200
ref: 1
COVER,CLUTCH
1134049200
€ 250.00
2
1148249201
ref: 2
GASKET,CLUTCH COVER (MCA)
1148249201
€ 39.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4
0211206408
ref: 4
SCREW
€ 2.00
5
0211206358
ref: 5
SCREW (6X35)
€ 2.50
6
0211206308
ref: 6
SCREW 6X30
€ 2.50
7
0211206258
ref: 7
SCREW
€ 2.00
8
0211206208
ref: 8
SCREW
€ 2.00
9
0925930001
ref: 9
CAP
0925930001
€ 8.50
10
0928032005
ref: 10
O RING(D:2.2,ID:32)
0928032005
€ 2.00
11
1138149201
ref: 11
FROM 11381-49200
COVER,CONTACT BREAKER
€ 49.00
12
6823549200
ref: 12
EMBLEM
6823549200
€ 19.50
13
1149149200
ref: 13
GASKET,CONTACT BREAKER COVER (NAS)
1149149200
€ 14.50
14
0211205308
ref: 14
SCREW
0211205308
€ 1.50
15
1135149200
ref: 15
COVER
1135149200
€ 186.00
16
6823349200
ref: 16
EMBLEM,MAGNETO COVER
6823349200
€ 29.50
17
1148349200
ref: 17
GASKET,MAGNETO COVER (MCA)
1148349200
€ 13.00
18
0920613001
ref: 18
PIN
0920613001
€ 2.50
19
0211206458
ref: 19
SCREW (6X45)
0211206458
€ 2.00
20
0211206408
ref: 20
SCREW
€ 2.00
21-1
0211206358
ref: 21-1
SCREW (6X35)
€ 2.50
21-2
0211206308
ref: 21-2
SCREW 6X30
€ 2.50
22
1136049200
ref: 22
COVER,SPROCKET
1136049200
€ 127.00
23
0421109129
ref: 23
PIN
0421109129
€ 2.00
24
0211206958
ref: 24
SCREW (6*95)
0211206958
€ 2.50
25
0211206858
ref: 25
SCREW 6X85
0211206858
€ 2.50
26
0211206708
ref: 26
SCREW 6X70
0211206708
€ 3.00
27
0211206557
ref: 27
SCREW
0211206557
€ 2.50
28
0211206308
ref: 28
SCREW 6X30
€ 2.50
29
1138249002
ref: 29
COVER,STARTER MOTOR
1138249002
€ 43.00
30
0110405108
ref: 30
BOLT
€ 1.50
31
0832221058
ref: 31
WASHER
€ 2.50
