CRANKCASE
GSX1100E 1980 (T) GENERAL EXPORT (E01)

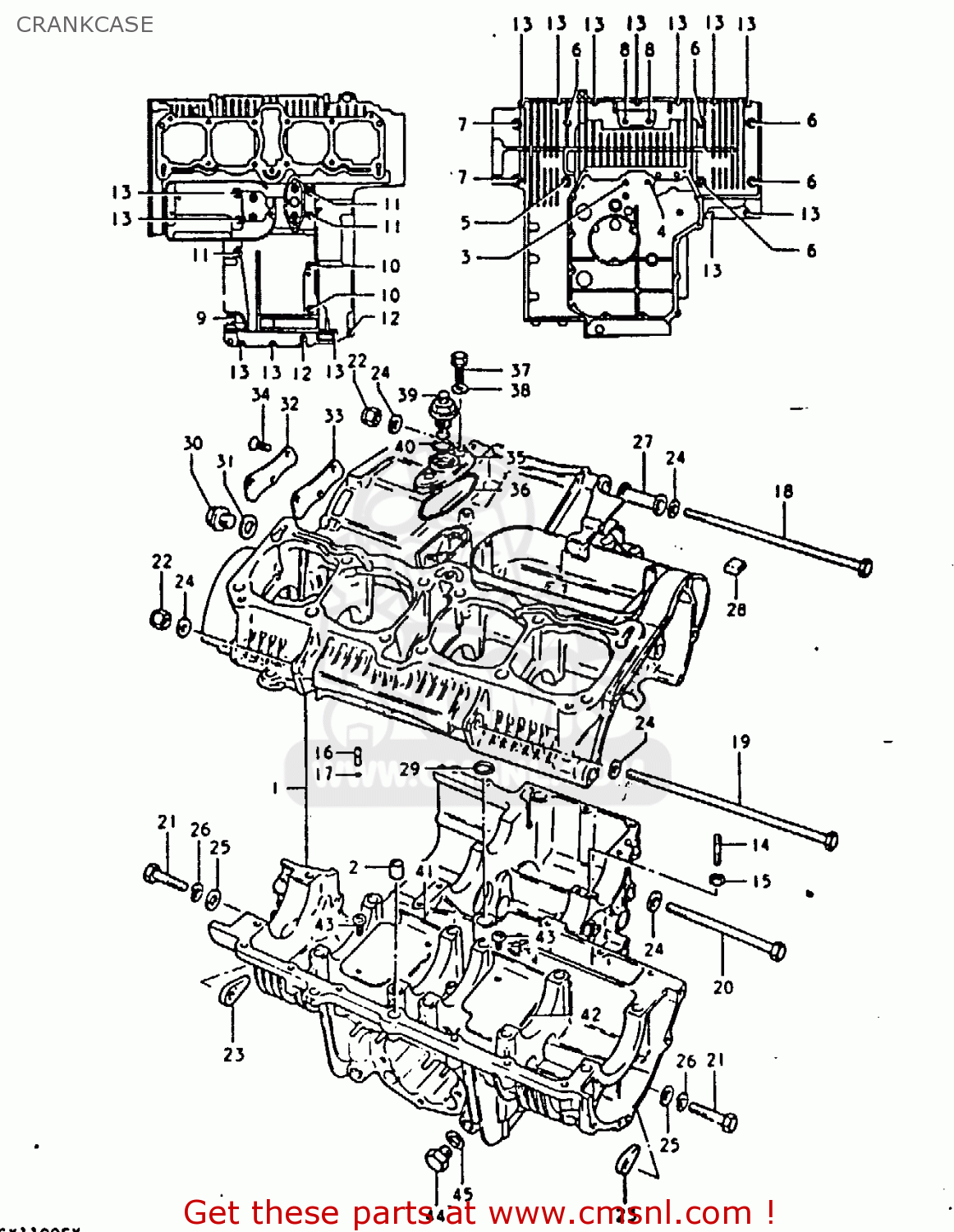

Crankcase diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)
CRANKCASE GSX1100E 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1130049820
ref: 1
CRANKCASE SET
€ 1,618.50
2
0920613001
ref: 2
PIN
€ 2.50
3
0910308039
ref: 3
BOLT
€ 7.50
4
0910308020
ref: 4
BOLT
€ 8.00
5
0910308009
ref: 5
BOLT
€ 5.00
6
0151708908
ref: 6
BOLT 8X90
€ 3.50
7
0151708658
ref: 7
BOLT 8X65
€ 3.00
8
0151708608
ref: 8
BOLT
€ 3.50
9
0151708508
ref: 9
BOLT
€ 3.50
10
0151706858
ref: 10
BOLT
€ 3.50
11
0151706758
ref: 11
BOLT (6X75)
€ 2.50
12
0151706558
ref: 12
BOLT
€ 2.50
13
0151706408
ref: 13
BOLT
€ 2.50
14
0142106358
ref: 14
STUD BOLT
€ 2.00
15
0831616068
ref: 15
NUT
€ 2.50
16
0936405005
ref: 16
UNION
€ 3.00
17
0928003003
ref: 17
O RING(D:1.05,ID:3.1)
€ 2.50
18
0910010140
ref: 18
BOLT 10X230
€ 13.50
19
0910110010
ref: 19
BOLT 10X250
€ 49.50
20
0910010078
ref: 20
BOLT(10X165)
€ 10.50
21
0110710608
ref: 21
BOLT 10X60
€ 3.50
22
0915910011
ref: 22
NUT
€ 3.00
23
0915910020
ref: 23
NUT
€ 7.50
24
0832211108
ref: 24
WASHER
€ 2.50
25
0916010005
ref: 25
WASHER(10.5X20X3.2)
€ 2.00
26
0832121108
ref: 26
LOCK WASHER
€ 2.00
27
1161049000
ref: 27
SPACER,ENGINE MOUNT
€ 14.50
28
1125225000
ref: 28
PAD,CYLINDER
€ 5.00
29
0928013001
ref: 29
O RING(D:3.2,ID:12.9)
€ 4.00
30
0924714012
ref: 30
PLUG (14X12)
€ 3.50
31
0916814004
ref: 31
GASKET(14X19.2X2) (NAS)
€ 2.50
32
1139445000
ref: 32
CAP,OIL GALLERY
€ 6.50
33
1149745000
ref: 33
GASKET,OIL GALLERY (MCA)
€ 13.00
34
0212206168
ref: 34
SCREW
€ 2.00
35
1644545000
ref: 35
HOUSING,OIL PRESSURE SWITCH
€ 28.00
36
1644845000
ref: 36
O RING,PRESSURE SWITCH HOUSING
€ 10.50
37
0151706258
ref: 37
BOLT
€ 2.50
38
0916806009
ref: 38
GASKET (NAS)
€ 2.00
39
3782045050
ref: 39
SWITCH ASSEMBLY
€ 30.00
40
0928019001
ref: 40
O RING(D:1.9,ID:18.8)
€ 1.50
41
1152149200
ref: 41
PLATE,OIL SEPARATOR
€ 5.50
42
1152249200
ref: 42
PLATE,OIL SEPARATOR
€ 4.50
43
0211206088
ref: 43
SCREW
€ 2.00
44
0924714013
ref: 44
PLUG
€ 2.50
45
0916814009
ref: 45
GASKET 14X18X1.5
€ 2.00
