FRONT CALIPERS

GSX1100E 1980 (T) GENERAL EXPORT (E01)

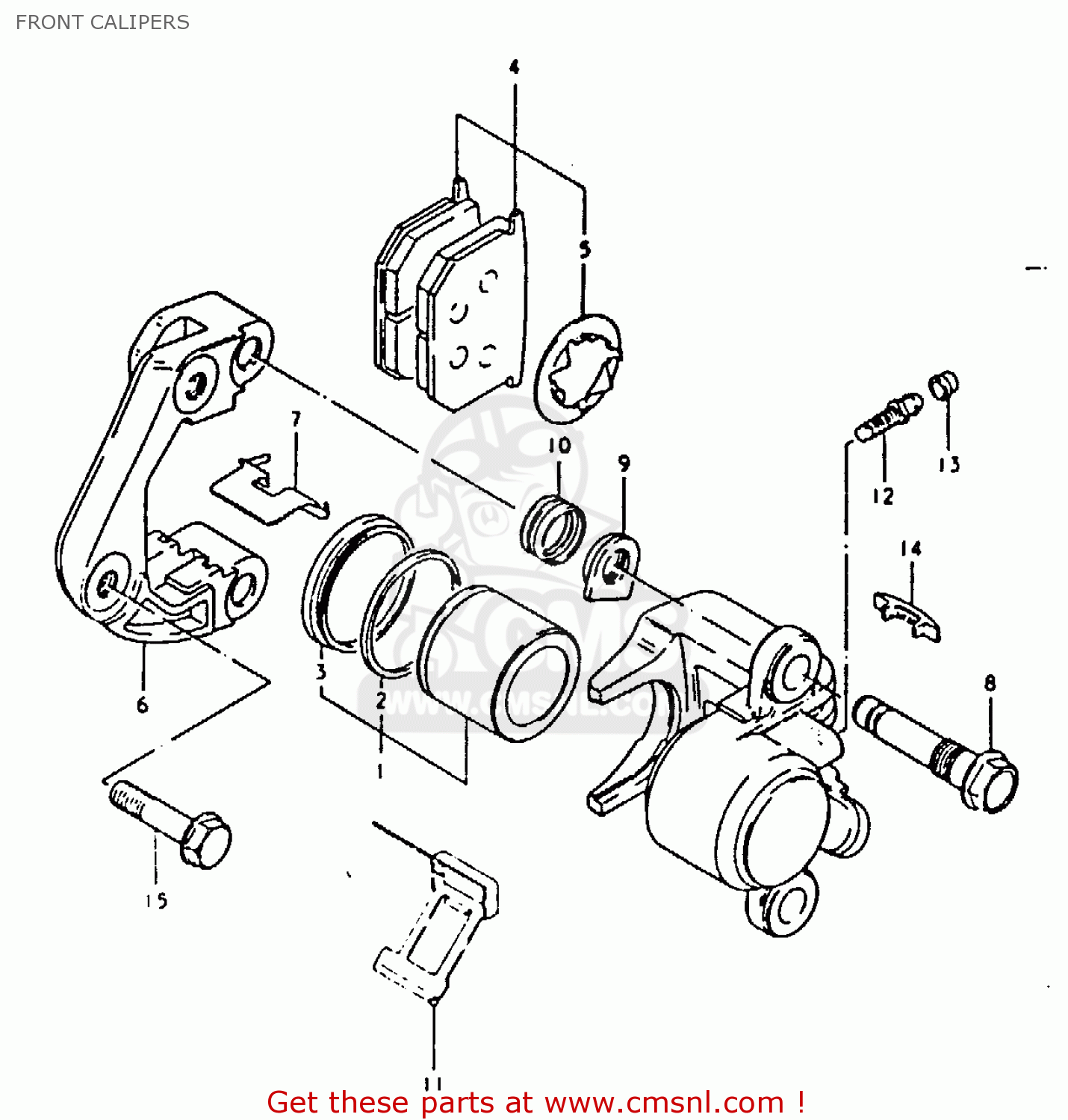

Front calipers diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRONT CALIPERS GSX1100E 1980 (T) GENERAL EXPORT (E01)
FRONT CALIPERS GSX1100E 1980 (T) GENERAL EXPORT (E01)
FRONT CALIPERS GSX1100E 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5910049101
ref: 0
CALIPERS ASSY, RH
€ 420.00
0
5930049101
ref: 0
CALIPERS ASSY, LH
€ 236.50
1
5930049810
ref: 1
PISTON SET
5930049810
€ 52.50
2
5910734020
ref: 2
SEAL,PISTON
5910734020
€ 6.50
3
5930849000
ref: 3
BOOT,PISTON
5930849000
€ 9.00
4
5930049820
ref: 4
PAD & SHIM SET (MCA)
5930049820
€ 91.00
5
5937149000
ref: 5
SHIM,PAD
5937149000
€ 7.00
6-1
5915049100
ref: 6-1
HOLDER,CALIPER,RIGHT
5915049100
€ 81.50
6-2
5935049100
ref: 6-2
HOLDER,CALIPER,LEFT
€ 81.50
7
5931649000
ref: 7
GUIDE,PAD
5931649000
€ 11.00
8
5930549000
ref: 8
AXLE,CALIPER
5930549000
€ 42.00
9
5931749000
ref: 9
NUT,CALIPER AXLE
5931749000
€ 14.00
10
5931249000
ref: 10
BOOT
5931249000
€ 30.00
11
5931549000
ref: 11
SPRING
5931549000
€ 9.50
12
5912147050
ref: 12
BREATHER
5912147050
€ 11.50
13
5247460020
ref: 13
CAP,BLEEDER PL
5247460020
€ 6.00
14
5932449000
ref: 14
COVER,INDICATOR
5932449000
€ 12.50
15
0151710408
ref: 15
BOLT
€ 3.50
