GEAR SHIFTING
GSX1100E 1980 (T) GENERAL EXPORT (E01)

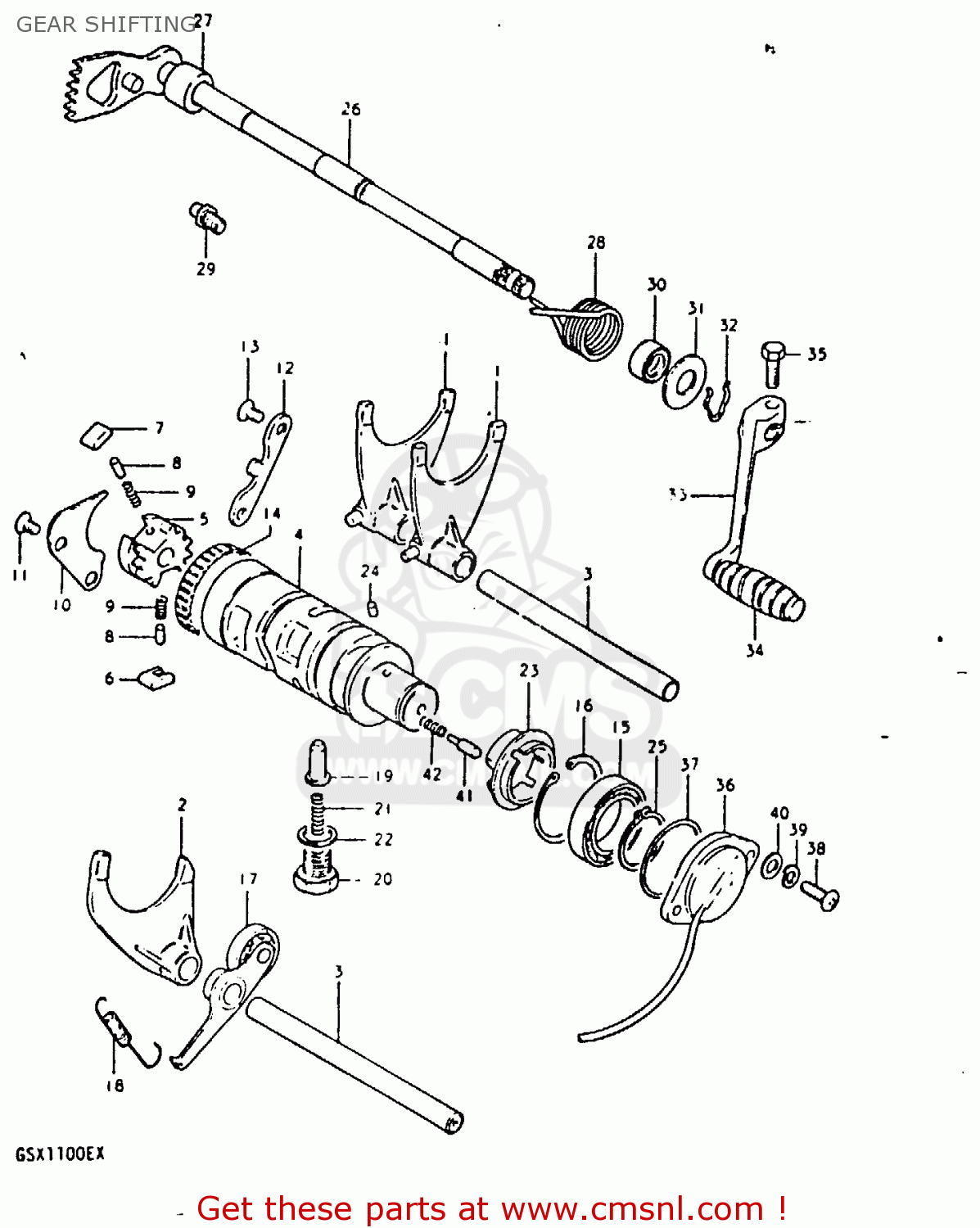

Gear shifting diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)
GEAR SHIFTING GSX1100E 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2521149200
ref: 1
FORK,GEAR SHIFT NO.1
€ 87.00
2
2523149201
ref: 2
FORK,GEAR SHIFT NO.2
€ 106.00
3
2541149200
ref: 3
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531049200
ref: 4
CAM,GEAR SHIFT
€ 161.50
5
2532211000
ref: 5
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533149200
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 43.50
11
0212206128
ref: 11
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
0926343001
ref: 14
BEARING(43X49X12)
€ 30.00
15
0811069050
ref: 15
BALL BEARING
€ 36.00
16
0833121429
ref: 16
CIRCLIP
€ 1.50
17
2535049200
ref: 17
STOPPER,GEAR SHIFTING
€ 9.00
18
0944308019
ref: 18
SPRING
€ 2.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
21
0944006018
ref: 21
SPRING
€ 1.50
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
€ 2.50
23
2538149200
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 19.00
24
0621104063
ref: 24
PIN 4X6
€ 2.00
25
0833111258
ref: 25
CIRCLIP
€ 2.00
26
2551045400
ref: 26
SHAFT,GEAR SHIFT
€ 88.00
27
0918012068
ref: 27
SPACER(12X20X15.3)
€ 3.00
28
0944426017
ref: 28
SPRING
€ 5.00
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0928512002
ref: 30
OIL SEAL
€ 7.00
31
0916012020
ref: 31
WASHER (12.5X27X1.6)
€ 2.00
32
0938412001
ref: 32
SPRING,RETAINER
€ 2.00
33
2560049000
ref: 33
LEVER ASSY,GEAR SHIFT
€ 54.00
34
2565216500
ref: 34
RUBBER,GEAR SHIFT PEDAL
€ 4.00
35
0110708208
ref: 35
BOLT
€ 3.00
36
3772049200
ref: 36
BODY, SHIFTING SWITCH
€ 54.00
37
0928036001
ref: 37
O RING(D:2.4,ID:36.5)
€ 4.50
38
0211205128
ref: 38
SCREW
€ 2.50
39
0832121058
ref: 39
LOCK WASHER
€ 2.00
40
0832221058
ref: 40
WASHER
€ 2.50
41
0920905011
ref: 41
PIN(5X15.5)
€ 2.00
42
0944004010
ref: 42
SPRING
€ 1.50
