REAR SWINGING ARM (GSX1100T, GSX1100X)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

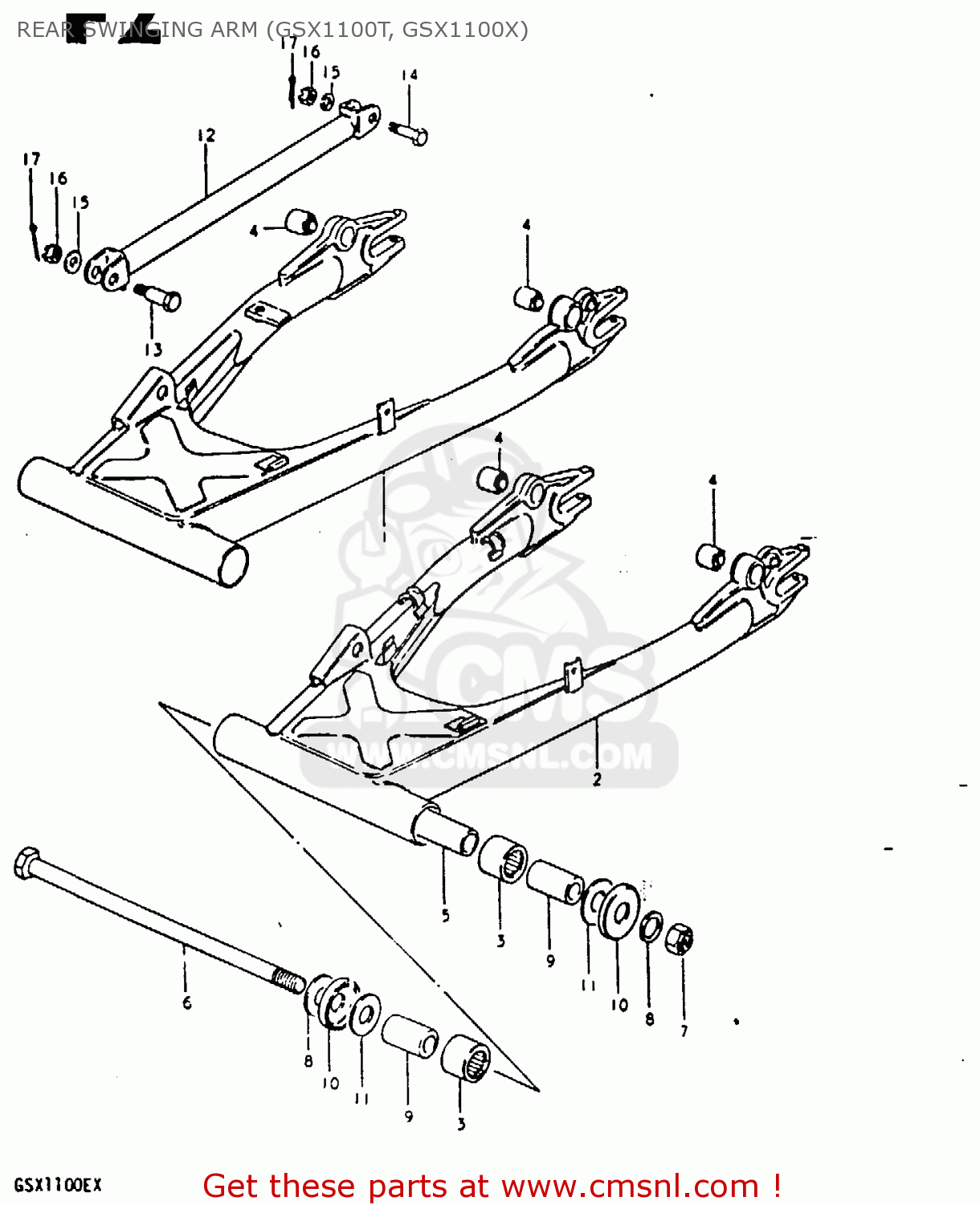

Rear swinging arm (gsx1100t, gsx1100x) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

REAR SWINGING ARM (GSX1100T, GSX1100X) GSX1100E 1980 (T) GENERAL EXPORT (E01)

REAR SWINGING ARM (GSX1100T, GSX1100X) GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6110049810019
ref: 1
WITH 69480-49002, MO

SWING ARM ASSEMBLY,REAR

€ 261.50

2-1

6110049811019
ref: 2-1
WITH 69480-49003, MO

SWING ARM ASSEMBLY,REAR

€ 261.50

2-2

6110049812019
ref: 2-2
MODEL X

SWING ARM ASSEMBLY,REAR

€ 261.50

3

0926325024
ref: 3

BEARING(25X33X30)

€ 31.50

4

0931910008
ref: 4

BUSH

€ 8.00

5

6128249000
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 24.00

6

6121149200
ref: 6

SHAFT,REAR SWING ARM

€ 43.50

7

0831921168
ref: 7

NUT 16MM

€ 5.00

8

0832211168
ref: 8

WASHER

€ 2.00

9

6125149000
ref: 9

SPACER,RR SWGARM PIVOT

€ 17.50

10

6126249001
ref: 10
FROM 61262-49000

COVER,REAR SWING ARM DUST

€ 17.50

11

0821116381
ref: 11

WASHER

€ 2.50

12

6431049200
ref: 12

TORQUE LINK, REAR

€ 22.50

13

0911110011
ref: 13

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211108
ref: 15

WASHER

€ 2.50

16

0831441108
ref: 16

NUT

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50
