FRAME COVER (GSX1100T/ET : 24L)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

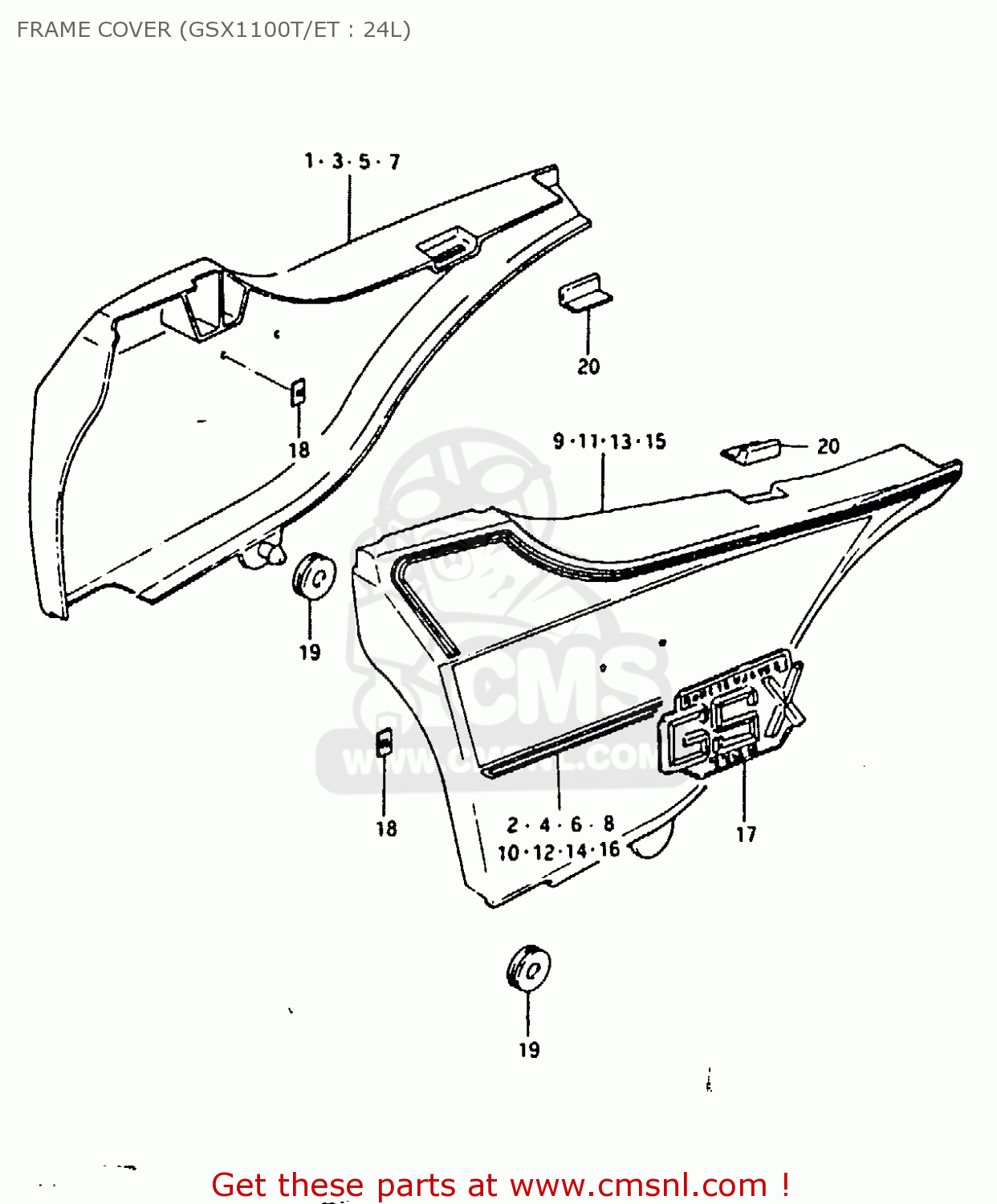

Frame cover (gsx1100t/et : 24l) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRAME COVER (GSX1100T/ET : 24L) GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRAME COVER (GSX1100T/ET : 24L) GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

471114920008E
ref: 1

COVER, FRAME RH (BLACK)

€ 94.00

2

681364922062F
ref: 2

TAPE SET, RH

€ 19.00

3

4711149200737
ref: 3

COVER,FRAME,RIGHT

€ 0.00

4

681364922072A
ref: 4

TAPE SET, RH

€ 23.50

5

471114920007P
ref: 5

COVER, FRAME RH (RED)

€ 94.00

6

6813649220998
ref: 6

TAPE SET, RH

€ 33.50

7

471114920005H
ref: 7

COVER, FRAME RH (BLUE)

€ 94.00

8

6813649220998
ref: 8

TAPE SET, RH

€ 33.50

9

472114920008E
ref: 9

COVER, FRAME LH (BLACK)

€ 69.50

10

681464922062F
ref: 10

TAPE SET, LH

€ 31.00

11

4721149200737
ref: 11

COVER,FRAME,LEFT

€ 69.50

12

681464922072A
ref: 12

TAPE SET, LH

€ 20.00

13

472114920007P
ref: 13

COVER, FRAME LH (RED)

€ 69.50

14

6814649220998
ref: 14

TAPE SET, LH

€ 20.00

15

472114920005H
ref: 15

COVER, FRAME LH (BLUE)

€ 69.50

16

6814649220998
ref: 16

TAPE SET, LH

€ 20.00

17

6813149210
ref: 17

EMBLEM,FRAME COVER

€ 22.00

18

0914803002
ref: 18

NUT

€ 3.00

19

0932008018
ref: 19

CUSHION

€ 4.00

20

4711702400
ref: 20

CUSHION,FRAME COVER

€ 2.00
