FRAME (GSX1100EX, GSX1100X)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

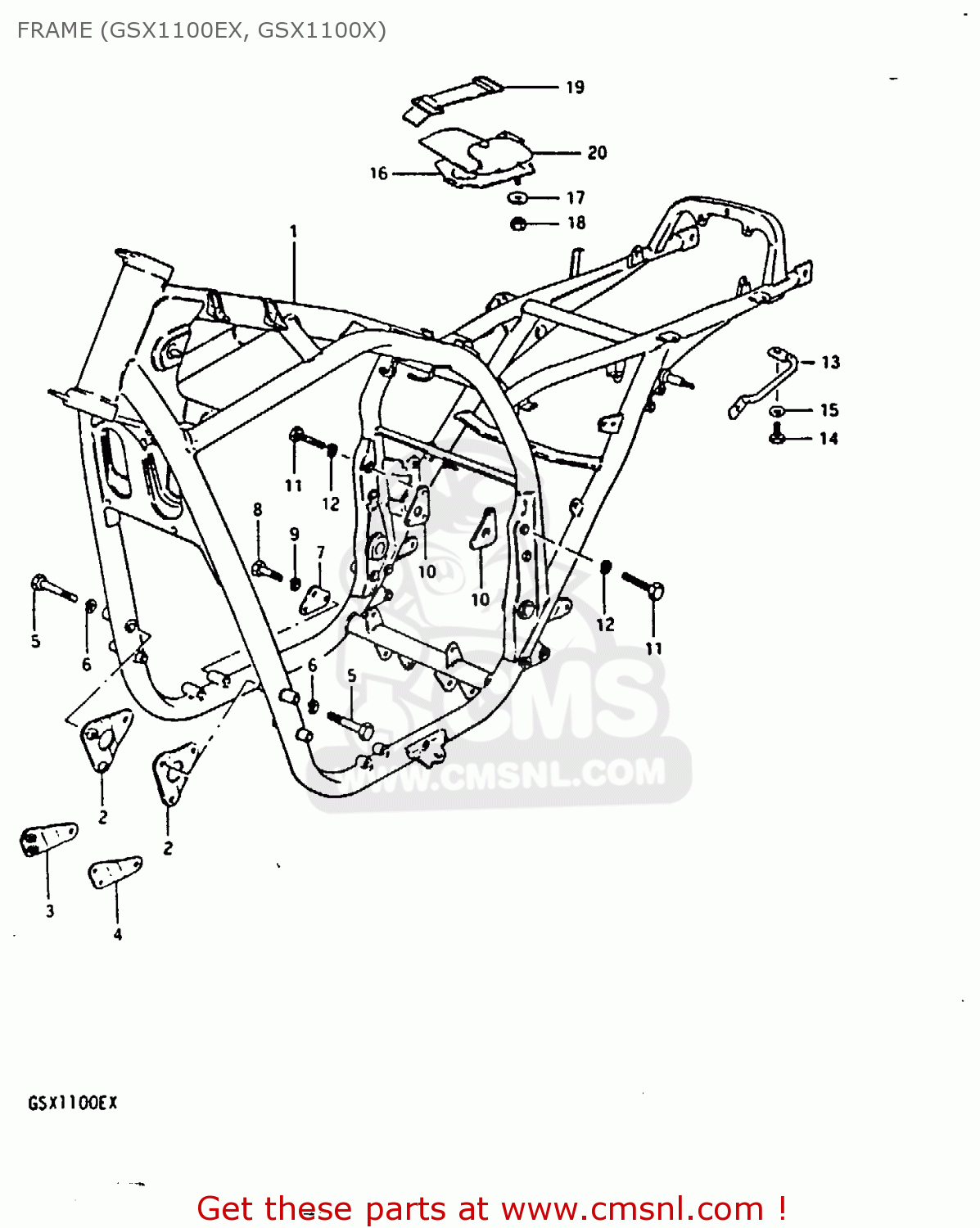

Frame (gsx1100ex, gsx1100x) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRAME (GSX1100EX, GSX1100X) GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRAME (GSX1100EX, GSX1100X) GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4110049201019
ref: 1-1

FRAME (BLACK)

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

4191049200019
ref: 2
FLAT HANDLEBAR

PLATE,ENG MTG NO.1

€ 18.50

3

4191049211019
ref: 3
NEUTRAL HANDLEBAR

PLATE, NO.1 RH (BLACK)

€ 13.50

4

4192049211019
ref: 4
NEUTRAL HANDLEBAR

PLATE, NO.1 LH (BLACK)

€ 0.00

5

0110708658
ref: 5

BOLT

€ 3.00

6

0832121088
ref: 6

LOCK WASHER

€ 2.00

7

4192149000019
ref: 7

PLATE,ENGINE MOUNTING

€ 30.00

8

0110708168
ref: 8

BOLT

€ 2.00

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

4194049000019
ref: 10

PLATE,ENGINE MOUNTING

€ 60.00

11

0110708358
ref: 11

BOLT

€ 3.50

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

4161049201
ref: 13

GRIP,FRAME

€ 28.50

14

0110708168
ref: 14

BOLT

€ 2.00

15

0832211088
ref: 15

WASHER

€ 2.00

16

4155049200
ref: 16

HOLDER,TOOL

€ 10.00

17

0916006007
ref: 17

WASHER

€ 2.00

18

0831011068
ref: 18

NUT

€ 2.50

19

0946200072
ref: 19

BAND

€ 3.50

20

0980000812
ref: 20
*

TOOL SET

€ 50.00
