FRONT FORK (GSX1100T F.NO. 100131~/GSX1100X)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

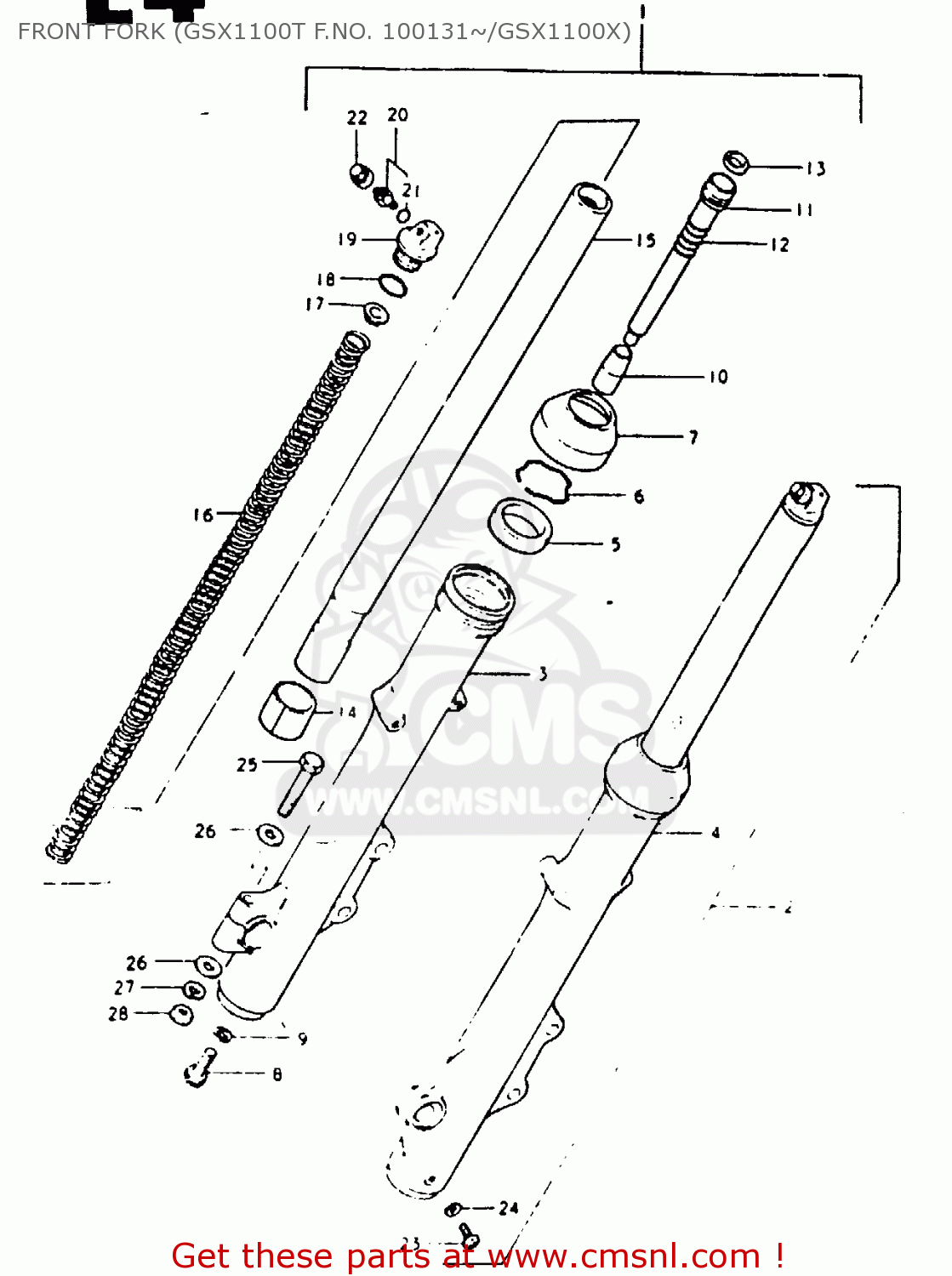

Front fork (gsx1100t f.no. 100131~/gsx1100x) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRONT FORK (GSX1100T F.NO. 100131~/GSX1100X) GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRONT FORK (GSX1100T F.NO. 100131~/GSX1100X) GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5110349251
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110449251
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113049130
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 130.00

4

5114049130
ref: 4

TUBE,OUTER,LEFT

€ 193.50

5

5115349000
ref: 5

OIL SEAL,FRONT FORK

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5117349002
ref: 7

SEAL,DUST

€ 13.00

8

5114716510
ref: 8

BOLT,FORK CYLINDER(10X25)

€ 3.50

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

5119549071
ref: 10

PIECE,OIL LOCK

€ 12.00

11

5114649251
ref: 11

CYLINDER

€ 0.00

12

5117749200
ref: 12

SPRING,FORK REBOUND

€ 7.00

13

5119649000
ref: 13

RING,PISTON

€ 9.00

14

5112149200
ref: 14

PISTON

€ 18.00

15

5111049251
ref: 15

INNER TUBE

€ 225.00

16

5117149251
ref: 16

SPRING

€ 0.00

17

5117238010
ref: 17

GUIDE,FRONT FORK SPRING C

€ 9.50

18

5111716310
ref: 18

O RING

€ 4.50

19

5135141211
ref: 19

CAP

€ 41.00

20

5129349001
ref: 20

VALVE

€ 18.00

21

5111741211
ref: 21

O RING

€ 6.50

22

5129449000
ref: 22

CAP,VALVE

€ 22.50

23

0211204088
ref: 23

SCREW

€ 1.50

24

5118303010
ref: 24

GASKET,DRAIN,PLUG (NAS)

€ 3.00

25

0110708508
ref: 25

BOLT 8X50

€ 3.00

26

0832221088
ref: 26

WASHER

€ 2.00

27

0832131088
ref: 27

WASHER,LOCK,8.

€ 2.00

28

0831012088
ref: 28

NUT

€ 2.00
