REAR COMBINATION LAMP (E2, E4, E21)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

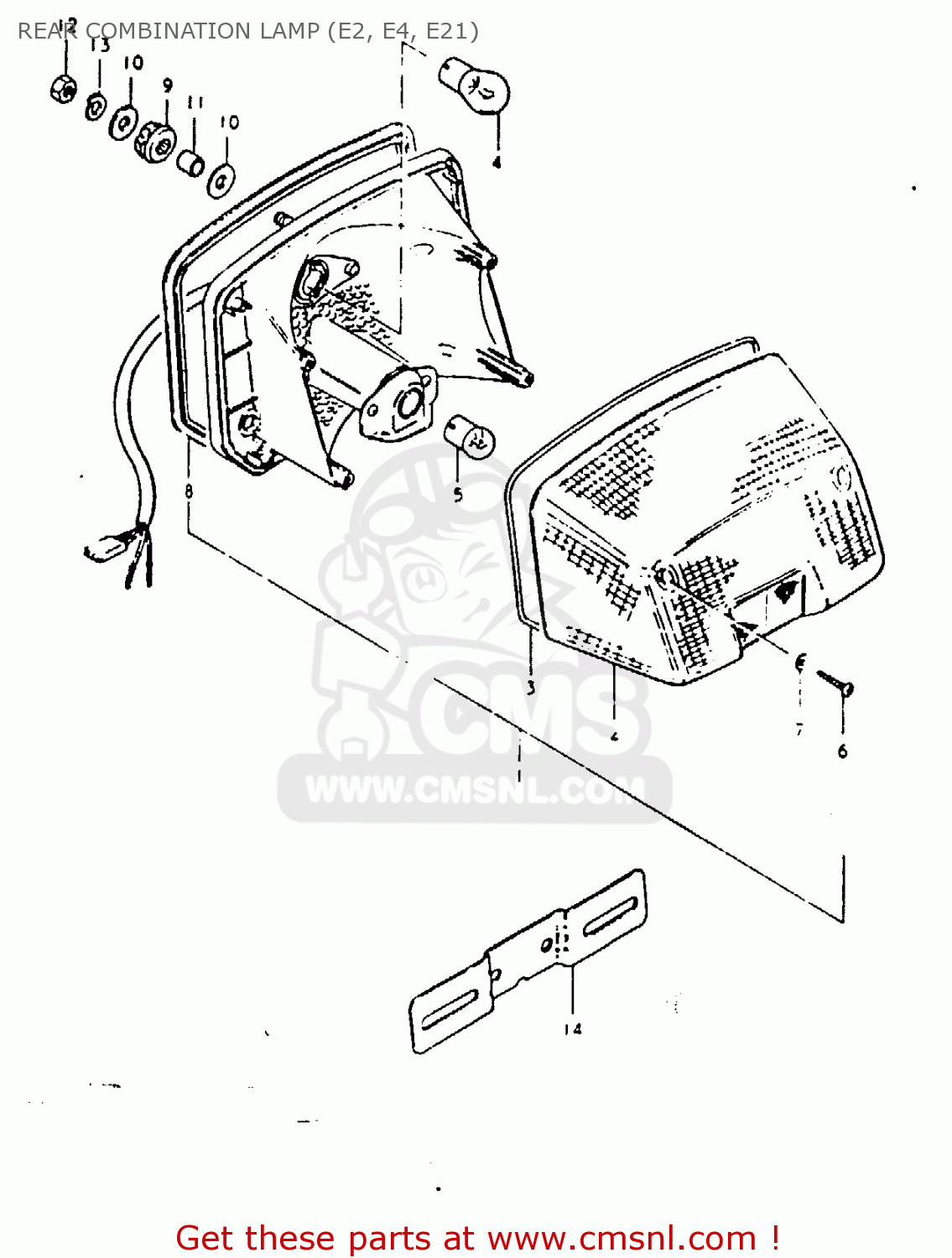

Rear combination lamp (e2, e4, e21) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (E2, E4, E21) GSX1100E 1980 (T) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (E2, E4, E21) GSX1100E 1980 (T) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (E2, E4, E21) GSX1100E 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3571049221
ref: 1
FROM 35710-49220
LAMP ASSY, TAIL
€ 202.50
2
3571249221
ref: 2
FROM 35712-49220
LENS
3571249221
€ 71.50
3
3571349230
ref: 3
GASKET (NAS)
3571349230
€ 6.00
4
0947112057
ref: 4
BULB 12V21/5W
0947112057
€ 6.00
5
0947112058
ref: 5
BULB
0947112058
€ 4.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
3573349230
ref: 8
GASKET,REAR COMBINATION LAMP
3573349230
€ 10.50
9
0932009010
ref: 9
CUSHION
0932009010
€ 2.50
10
0916006060
ref: 10
WASHER
0916006060
€ 2.00
11
0918006006
ref: 11
SPACER (6.8X10X11.5)
0918006006
€ 3.00
12
0831011068
ref: 12
NUT
0831011068
€ 2.50
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
3592749210
ref: 14
PLATE, LICENSE
€ 10.00
