FRONT WHEEL (GSX1100ET, GSX1100EX)

GSX1100E 1980 (T) GENERAL EXPORT (E01)

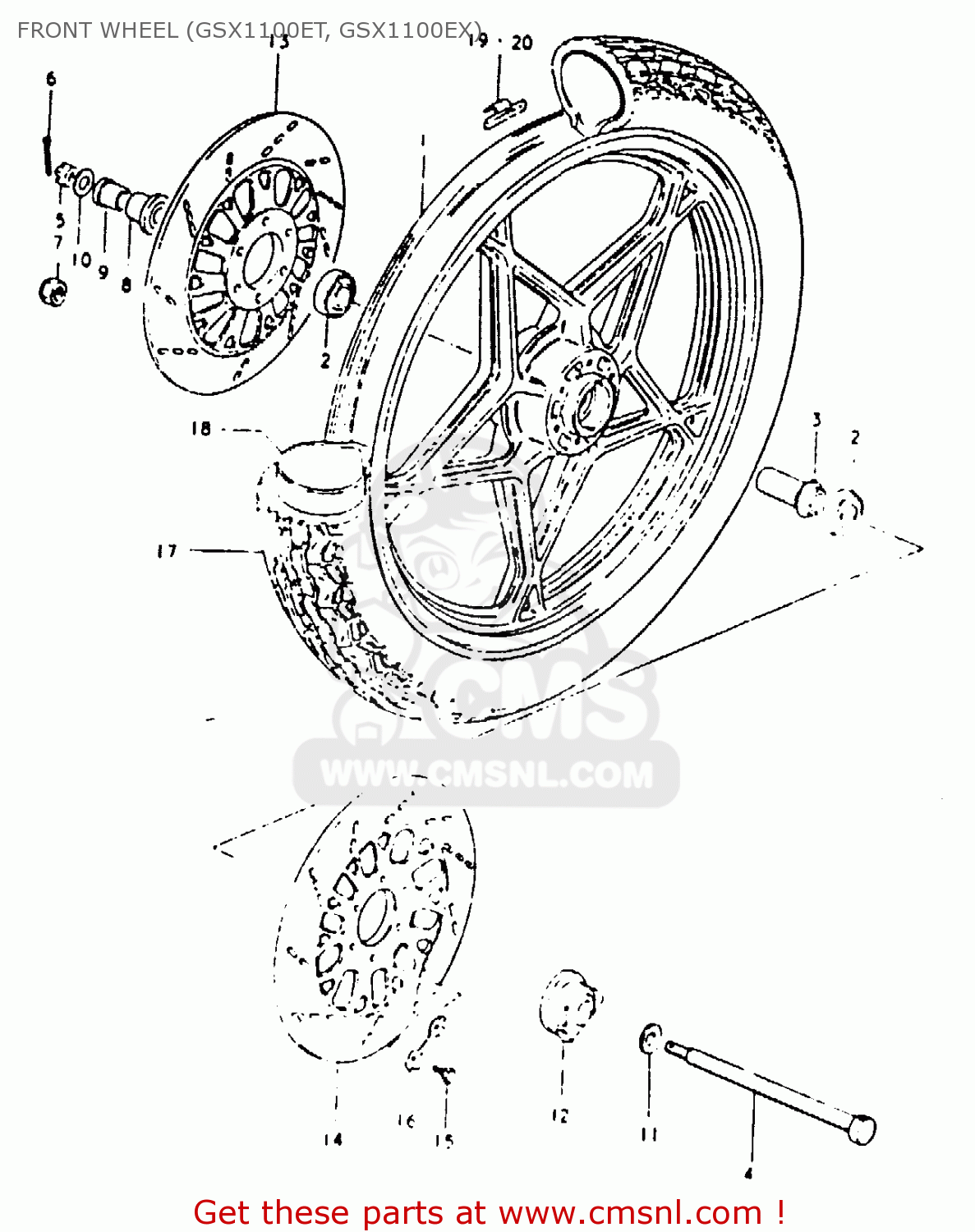

Front wheel (gsx1100et, gsx1100ex) diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (GSX1100ET, GSX1100EX) GSX1100E 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (GSX1100ET, GSX1100EX) GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5411147604
ref: 1

WHEEL, FRONT

€ 491.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471149000
ref: 4

AXLE,FR

€ 79.50

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

5474149101
ref: 9

SPACER

€ 14.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

0916015002
ref: 11

WASHER(15.5X26X2.3)

€ 2.00

12

5460049100
ref: 12

BOX ASSY,SPEEDOMETER GEAR

€ 90.00

13

5921145250
ref: 13

DISC,FR BRAKE,R

€ 149.00

14

5922145250
ref: 14

DISC,FR BRAKE,L

€ 149.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17

5510049230
ref: 17

TIRE (3.50V19)

€ 0.00

18

5520015010
ref: 18

TUBE,INNER

€ 41.00

19

5541145100
ref: 19

BALANCER,WHEEL

€ 7.00

20

5541245100
ref: 20

BALANCER,WHEEL

€ 4.00
