Buy Suzuki GSX Parts Online


HEADLAMP HOUSING - FRONT FENDER

GSX1100E 1980 (T) GENERAL EXPORT (E01)

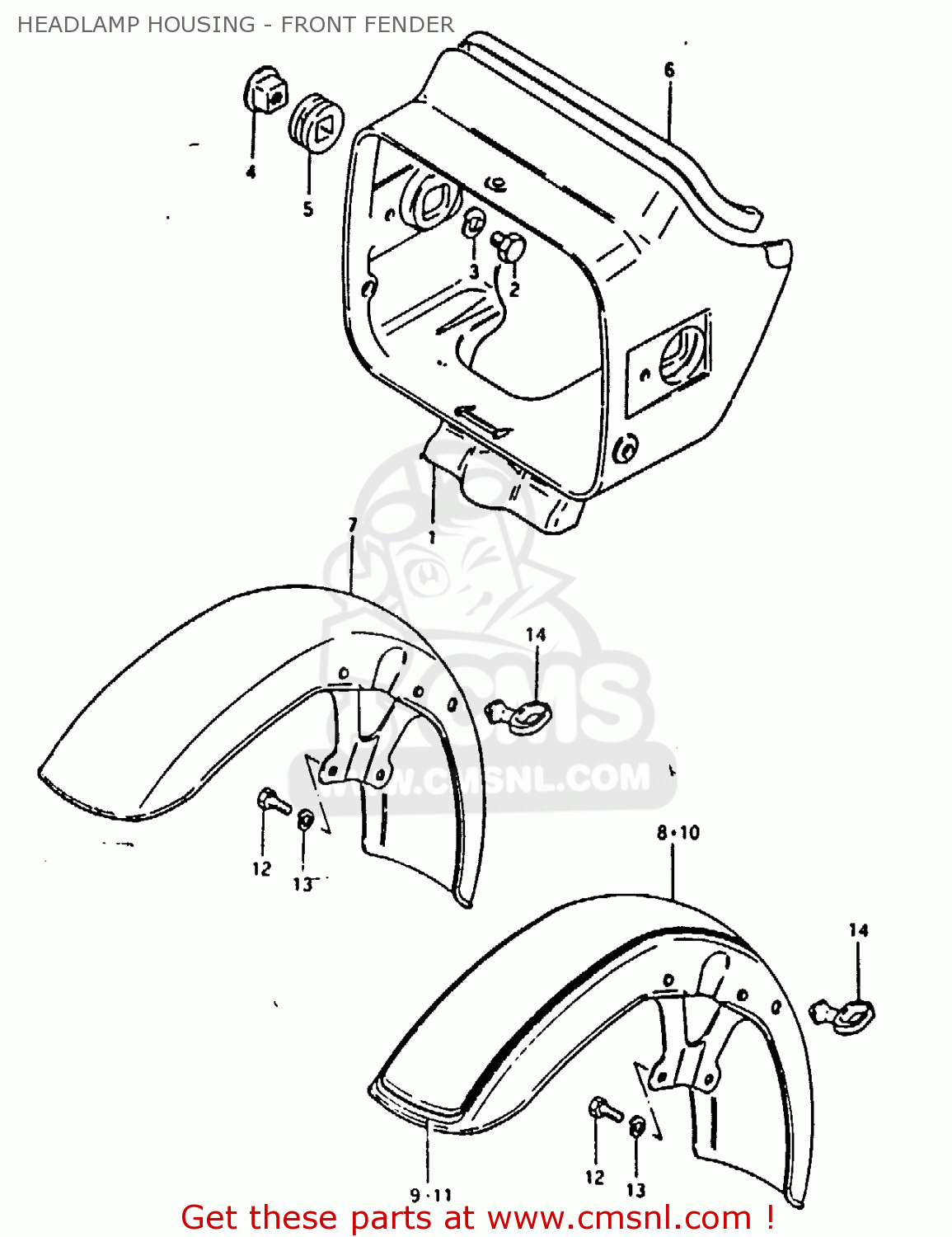

Headlamp housing - front fender diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

HEADLAMP HOUSING - FRONT FENDER GSX1100E 1980 (T) GENERAL EXPORT (E01)
HEADLAMP HOUSING - FRONT FENDER GSX1100E 1980 (T) GENERAL EXPORT (E01)
HEADLAMP HOUSING - FRONT FENDER GSX1100E 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
518114920005H
ref: 1-1
TO 51811-49201-05H
HOUSING, HEADLAMP
€ 123.50
1-2
518114920007P
ref: 1-2
TO 51811-49201-07P G
HOUSING, HEADLAMP
€ 123.50
1-3
518114920008E
ref: 1-3
TO 51811-49201-08E
HOUSING, HEADLAMP
€ 123.50
1-4
5181149200737
ref: 1-4
TO 51811-49201-737
HOUSING,HEADLAMP
€ 123.50
1-5
518114920105H
ref: 1-5
GSX1100EX
HOUSING, HEADLAMP
518114920105H
€ 123.50
1-6
518114920107P
ref: 1-6
GSX1100EX
HOUSING, HEADLAMP
518114920107P
€ 123.50
1-7
518114920108E
ref: 1-7
GSX1100EX
HOUSING, HEADLAMP
518114920108E
€ 123.50
1-8
5181149201737
ref: 1-8
GSX1100EX
HOUSING,HEADLAMP
€ 123.50
2
0910008067
ref: 2
BOLT
0910008067
€ 2.50
3
0832121088
ref: 3
LOCK WASHER
0832121088
€ 2.00
4
5182129001
ref: 4
SPACER,HEADLAMP HOUSING
5182129001
€ 3.00
5
5182749200
ref: 5
CUSHION,HEADLAMP HOUSING
5182749200
€ 7.00
6-1
5184349200
ref: 6-1
GSX1100EX, GAX1100T
MOLDING,HEADLAMP HOUSING
€ 6.50
6-2
5184349201
ref: 6-2
GSX1100EX, GSX1100X
MOLDING,HEADLAMP HOUSING
5184349201
€ 6.50
7-1
NOTUSED
ref: 7-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-2
NOTUSED
ref: 7-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-3
NOTUSED
ref: 7-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-4
NOTUSED
ref: 7-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8-1
531004587005H
ref: 8-1
GSX1100EX
FENDER, FRONT
€ 125.50
8-2
531004587008E
ref: 8-2
GSX1100EX
FENDER, FRONT
€ 125.50
8-3
5310045870737
ref: 8-3
GSX1100EX
FENDER, FRONT
€ 125.50
9
681504921175G
ref: 9
GSX1100EX
TAPE,FRONT FENDER
€ 36.50
10
531004588007P
ref: 10
GSX1100EX
FENDER, FRONT
€ 125.50
11
681504921177B
ref: 11
GSX1100EX
TAPE
€ 0.00
12
0110708168
ref: 12
BOLT
€ 2.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
5862121203A
ref: 14
GUIDE,CABLE
€ 7.50
