BATTERY

GSX1100E 1980 (T) GENERAL EXPORT (E01)

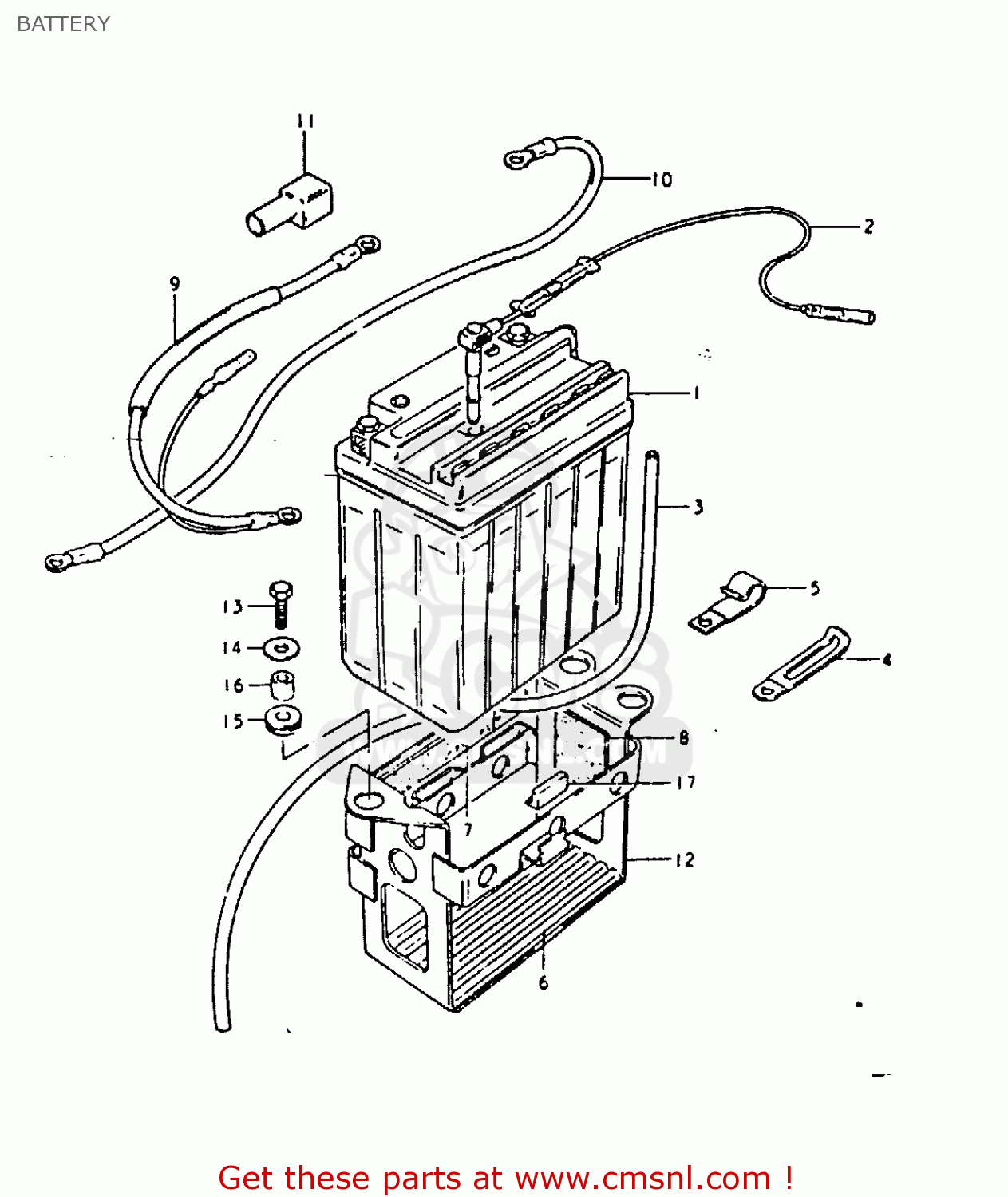

Battery diagram GSX1100E 1980 (T) GENERAL EXPORT (E01)

BATTERY GSX1100E 1980 (T) GENERAL EXPORT (E01)

BATTERY GSX1100E 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3361049230
ref: 1

BATTERY ASSEMBLY (12V)

€ 129.00

2

3361749230
ref: 2

SENSOR,BATTERY LEVEL

€ 40.00

3

3368049000
ref: 3

HOSE,BATTERY EXHAUST

€ 7.00

4

0940406401
ref: 4

CLAMP L:35

€ 2.50

5

0940309303
ref: 5

CLAMP

€ 5.50

6

3365131000
ref: 6

PROTECTOR,BATTERY

€ 29.00

7

3365249000
ref: 7

PROTECTOR(20X90)X4

€ 2.00

8

3365208410
ref: 8
TO 33651-37000 CUT A

PROTECTOR,BATTERY

€ 5.00

9

3382049000
ref: 9

WIRE,BATTERY PLUS

€ 16.00

10

3385003201
ref: 10

LEAD WIRE,BATTERY(-)

€ 8.50

11

3362445000
ref: 11

CAP,TERMINAL

€ 5.50

12

4154049200
ref: 12

HOLDER,BATTERY

€ 49.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14

WASHER

€ 2.00

15

0932008007
ref: 15

CUSHION

€ 4.00

16

0918006038
ref: 16

SPACER(6.1X9X7.5)

€ 2.00

17

4711702400
ref: 17

CUSHION,FRAME COVER

€ 2.00
