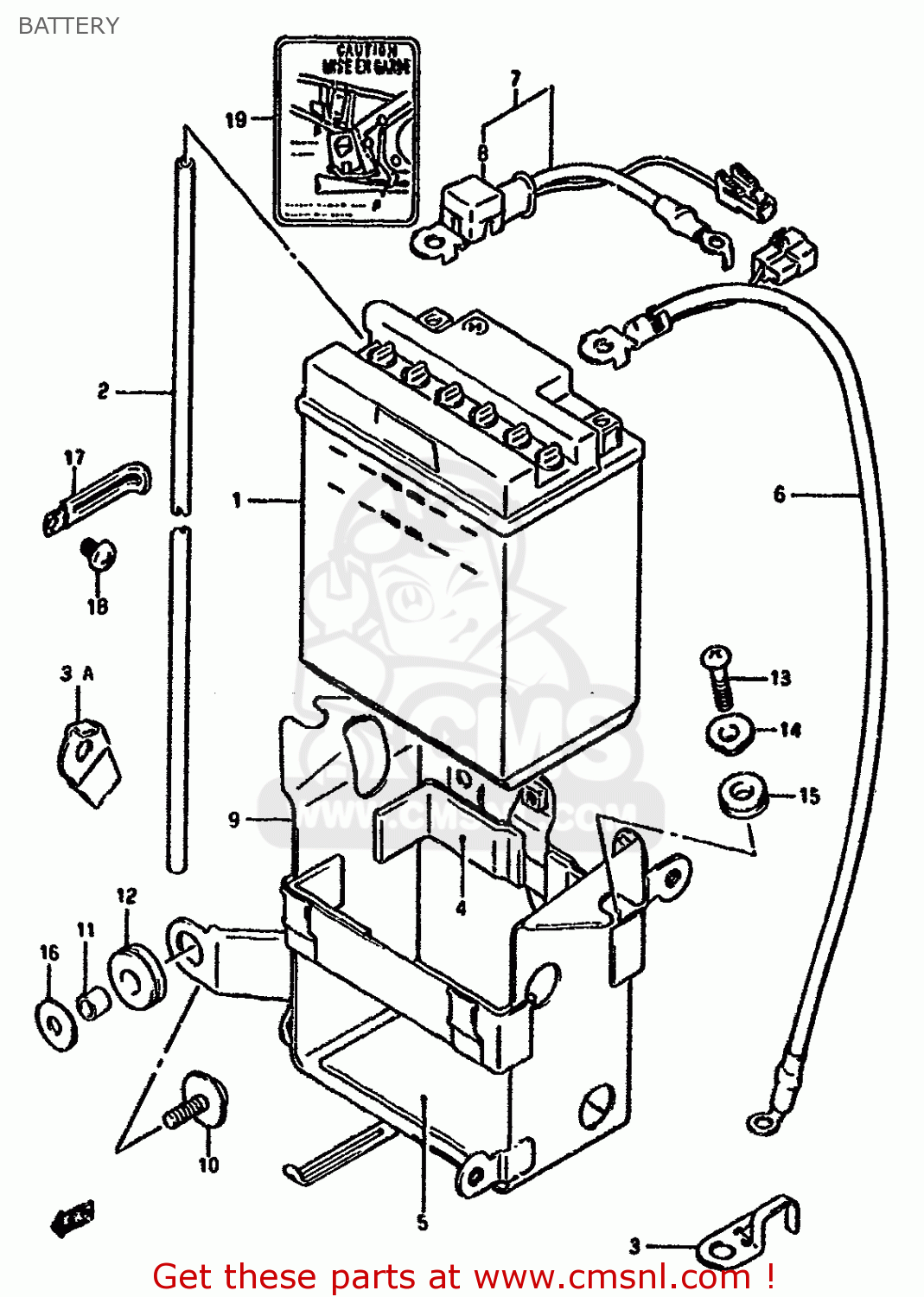

BATTERY

ref

part #

description

quantity

1

3361005A10
ref: 1

BATTERY(YB14L-B2,12V14.7AH)

€ 46.00

2-1

3368014A00
ref: 2-1
MODEL J/K/L/M/N/P L:

HOSE,BATTERY EXHAUST

€ 4.50

2-2

3368016A10
ref: 2-2
MODEL R L:780 650

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3

3367248B00
ref: 3

CLAMP,BATTERY EXHAUST HOSE

€ 2.50

3A

3367248B11
ref: 3A

CLAMP,BATTERY EXHAUST HOSE

€ 0.00

4

3365229100
ref: 4

PROTECTOR,20X9

€ 5.00

5

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

6

3386048B00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 18.50

7

3382048B00
ref: 7
MODEL J/K/L/M/N/P

WIRE,BATTERY PLUS

€ 25.00

8

3362424500
ref: 8
MODEL J/K/L/M/N/P

CAP,BATTERY PLUS

€ 6.50

9-1

4154048B02
ref: 9-1
MODEL J

HOLDER,BATTERY

€ 0.00

9-2

4154048C00
ref: 9-2
MODEL K/L

HOLDER,BATTERY

€ 66.50

9-3

4154048C10
ref: 9-3
MODEL M/N/P/R

HOLDER,BATTERY

€ 66.50

10

0913606102
ref: 10

SCREW

€ 2.50

11

0918006152
ref: 11

SPACER

€ 3.00

12

0932009021
ref: 12

CUSHION

€ 4.00

13-1

0214206205
ref: 13-1
MODEL J/K/L/M/N/P

SCREW, CENTER

€ 2.00

13-2

0214206205
ref: 13-2
MODEL R

SCREW, CENTER

€ 2.00

14

0916906057
ref: 14

WASHER

€ 4.00

15

0932008030
ref: 15

CUSHION

€ 3.00

16-1

0916006012
ref: 16-1
MODEL J/K/L/M/N/P

WASHER(6,5X22X1.6)

€ 2.00

16-2

0916006054
ref: 16-2
MODEL R

WASHER(6.5X22X1.6)

€ 2.00

17

0940406403
ref: 17
MODEL K

CLAMP

€ 2.50

18

0211206087
ref: 18
MODEL K

SCREW

€ 2.00

19

3369048B62
ref: 19

PLATE,BATTERY CAUTION

€ 3.00

all assemblies
